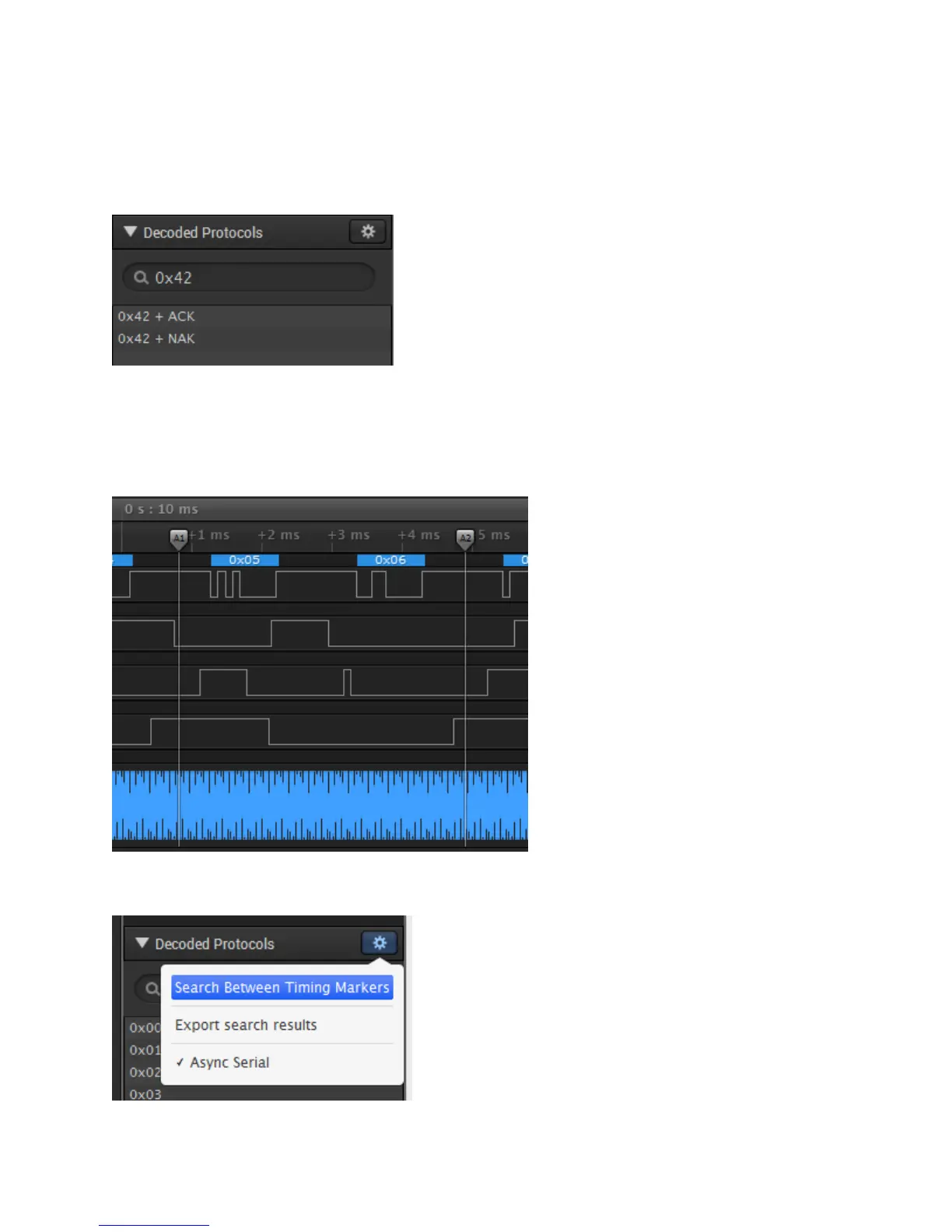

To search for a specific result, type the exact text you would like to match. For example, if you would like
to find transactions involving the I2C address 0x42, type 0x42 (assuming the display radix is
hexadecimal).
Filter Analyzer Results to a Specific Range
To limit the protocol results to a specific range, first add a timing marker pair with marker 1 and marker 2
placed at the beginning and end of the area on the graph you would like to search.
Then open the settings menu for the protocol search panel and select Search Between Timing Markers.
