Page 60 of 69

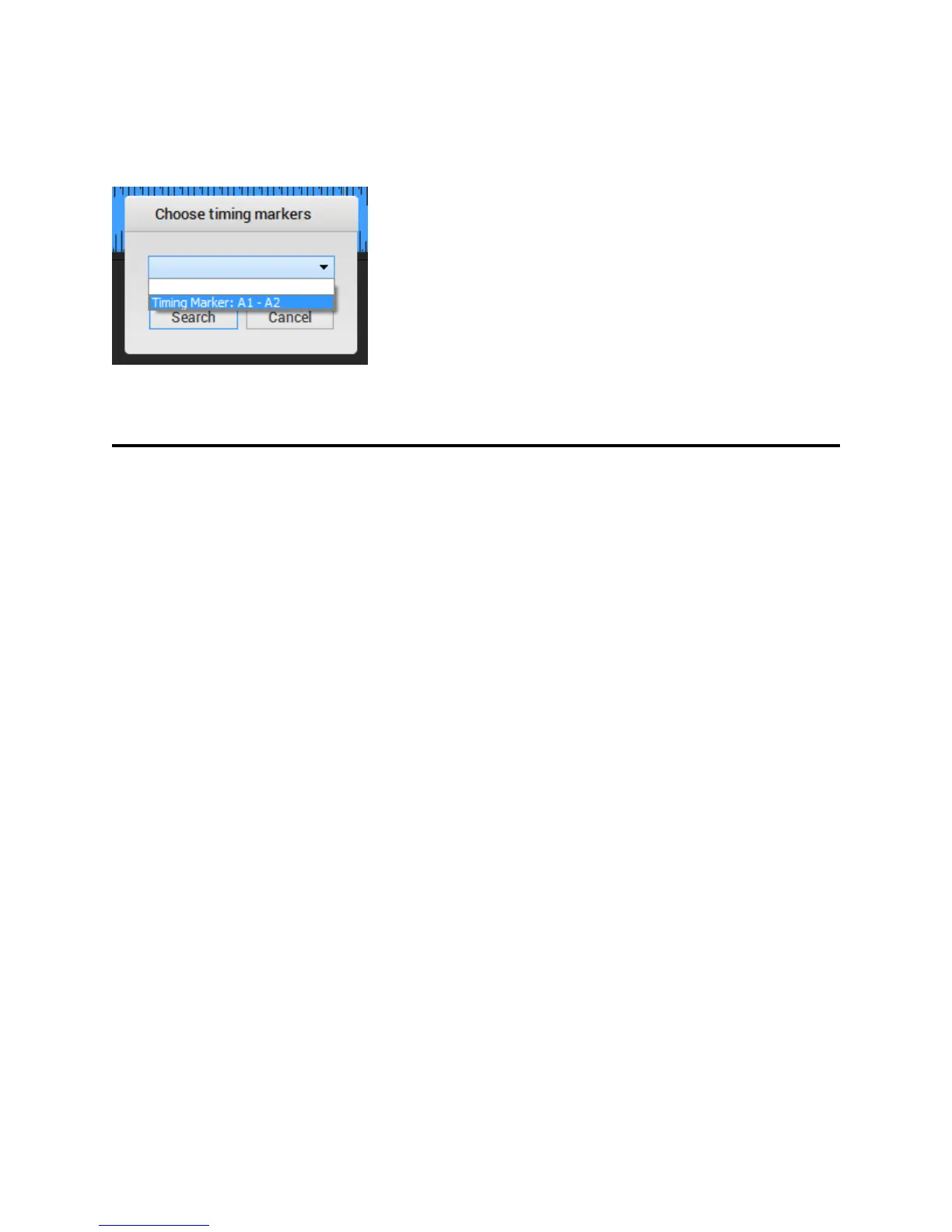

Then, from the "Choose timing markers" dialog, select the pair that you have just placed around the
activity and click Search.
The results are now filtered to all enabled analyzers within that time range.
