To select all channels, select one and then press CTRL-A.
Hiding Channels

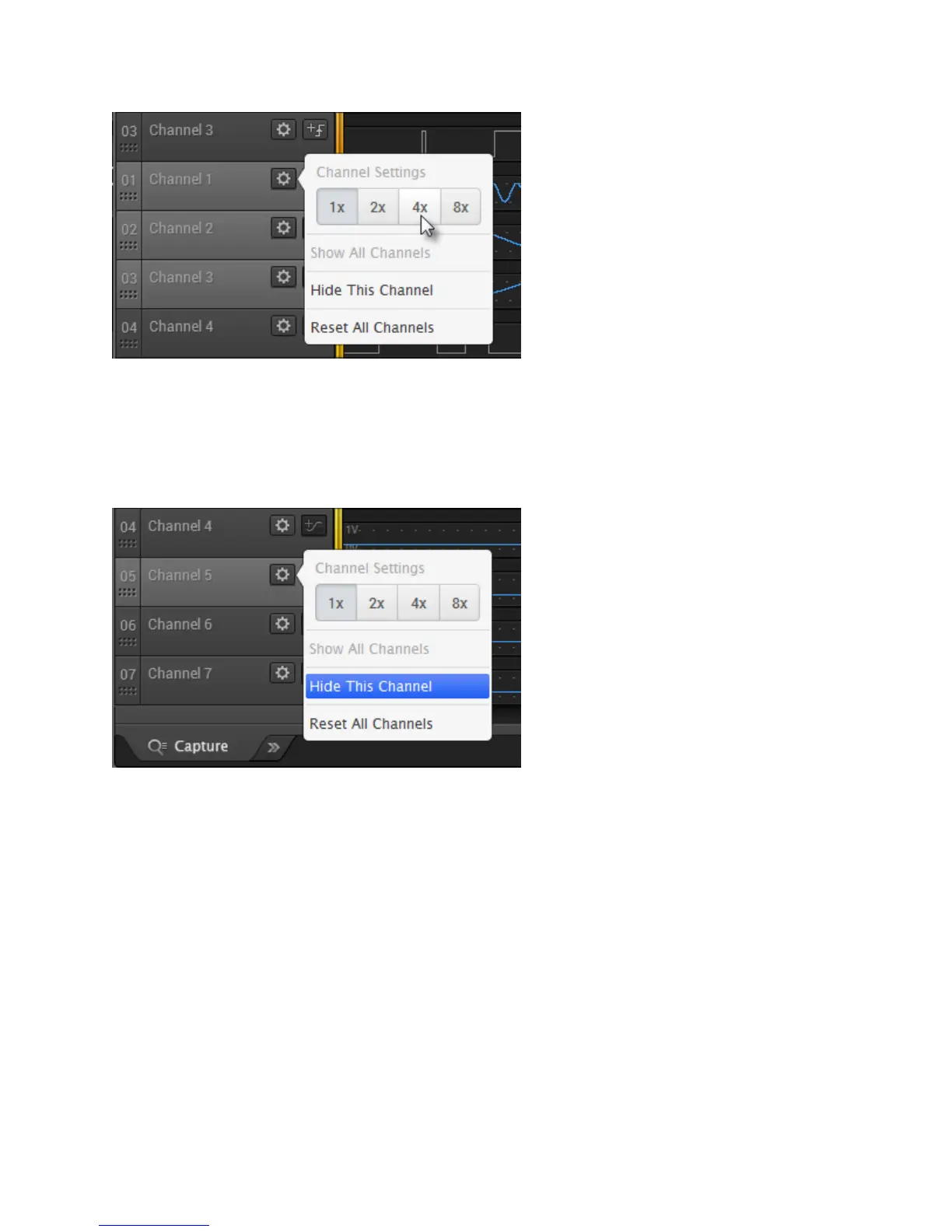

To hide a channel, click the channel settings icon (gear) and select Hide Channel.
You can hide multiple channels at the same time by selecting multiple channels and then selecting Hide
Channel on one of them.
To restore this and other hidden channels, click on a channel's settings icon and select Reset All
Channels.
