Note: For exporting protocol analyzer data, see the Protocol Analyzer section.
Export Settings

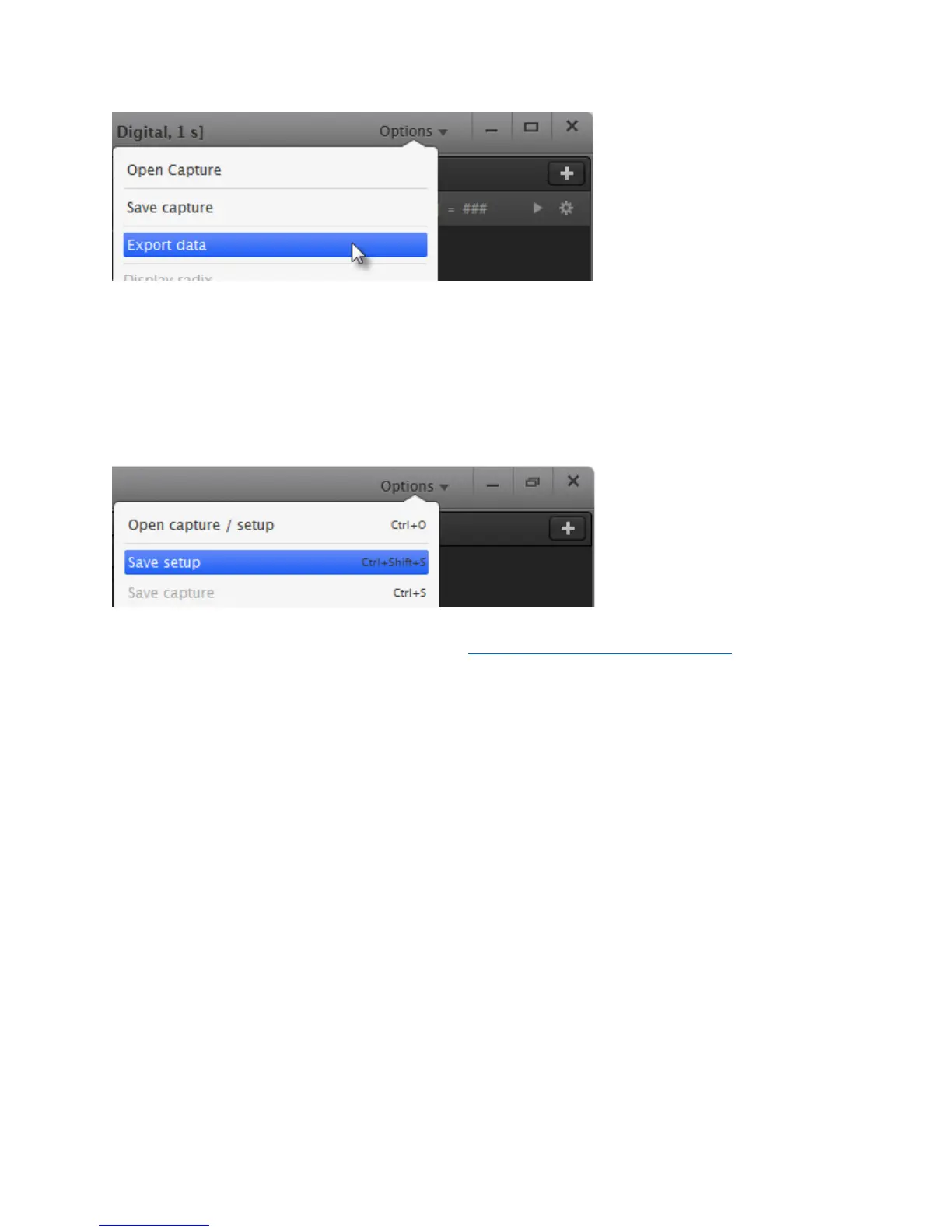

To export your setting, click the Options button at the top right and select Save Setup. From there, you
will be prompted to save a .logicsettings file. The .logicsettings file will save the settings associated with
the current active tab. You can find the tabs at the bottom of the software UI.
More details on saving settings are described here: Saving and Loading Software Settings
Exporting in CSV Format
CSV format is a text format suitable for opening in a spreadsheet application or loading from a script. You
can choose to include column headings and choose commas or tabs as the delimiter.
When exporting digital data only, you can choose to use timestamps or sample numbers to output the
digital as a single value or as a bit per column. You can choose to record only when the value changes or
record every sample.
