2) Add female right-angle headers to the edge of your board, or vertical headers to mount the logic

analyzer vertically to your board.

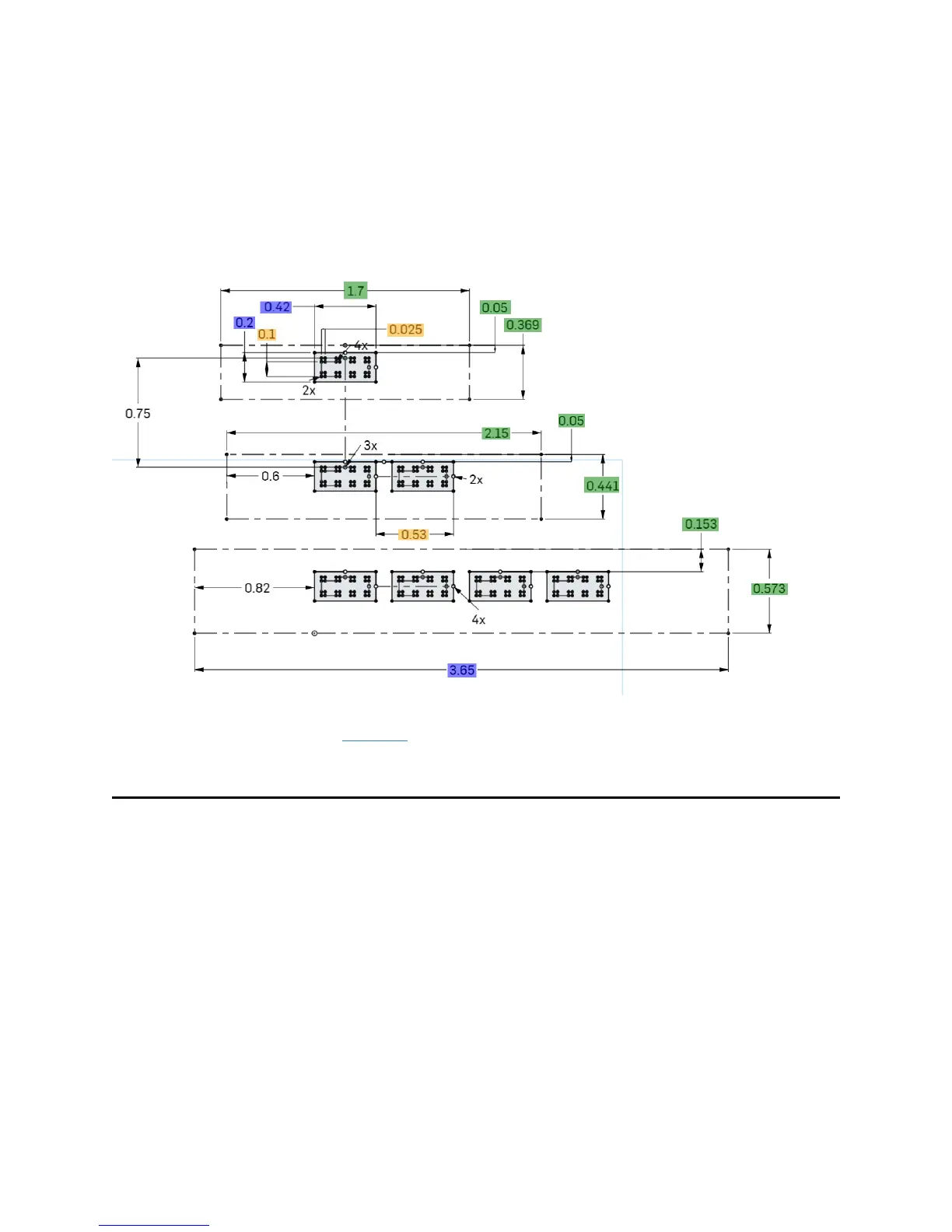

Below are diagrams of the connectors on the new Saleae logic analyzers. Note that Logic 8 and Logic

Pro 8 have the same dimensions.

These diagrams are available on OnShape, named "Saleae Pinout Gen2." A free account is required with

OnShape to view them.
