Samson TROVIS 5575 - Page 21

TROVIS 5575-002x:
Version without device bus: Settings in CO7 level do not apply.
EB 5575 EN 21
Operation

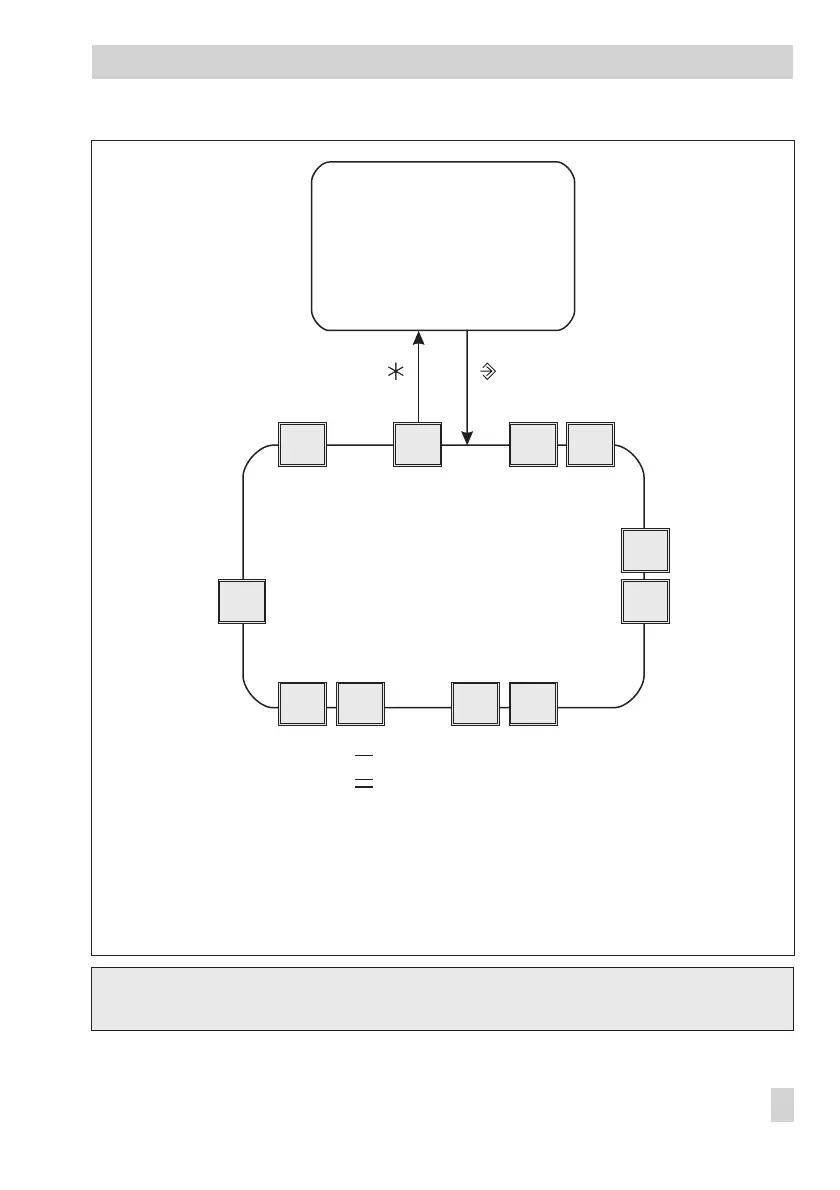

Fig. 2 · Level structure of TROVIS 5575
PA4
CO7
CO1
q
Operating level
(refer to section 1 on
time display and
operation)
& Key number
q
Configuration and
parameterization level
(refer to section 2 on start-up)
PA4
PA5CO7
CO1CO2
PA2Anl
CO4CO5
End PA1
PA1/CO1: Heating circuit Rk1 ( )
PA2/CO2: Heating circuit Rk2 ( )
PA4/CO4: DHW heating
PA5/CO5: System-wide
CO7: Device bus
Anl: System code number
