Functions
WE Configuration
4-point characteristic 0 CO1, 2 -> F11 - 0
Parameters
WE Rotary switch / Range of values
Day set point 20 °C Top, middle / 0 to 40 °C
Night set point 15 °C Top, middle / 0 to 40 °C
Parameters
WE Parameter level / Range of values
Gradient, flow 1,8* PA1, 2 / 0.2 to 3.2
Level, flow 0 °C PA1, 2 / –30 to 30 °C
Min. flow temperature 20 °C PA1, 2 / 5 to 130 °C
Max. flow temperature 90 °C* PA1, 2 / 5 to 130 °C
* With CO1, 2 -> F05 - 1, the following applies: Gradient, flow / 0.2 to 1.0 (1.0)
Max. flow temperature / 5 to 50 °C (50 °C)
5.1.2 4-point characteristic
The 4-point characteristic allows you to define your own heating characteristic.
It is defined by 4 points each for the
Outdoor temperature , the Flow temperature, the Reduced
flow temperature
and the Return flow temperature . The parameters Max. flow temperature and
Min. flow temperature mark the upper and lower limits of the flow temperature.
52 EB 5575 EN
Functions of the heating circuit
t
VLmax
t
VLmin
t
VL
100
90
80
70
60
50
40
30
20
10
[˚C]20 15 10 5 0 –5 –10 –15 –20
P1
P2
P3
P4
[˚C]
t
A

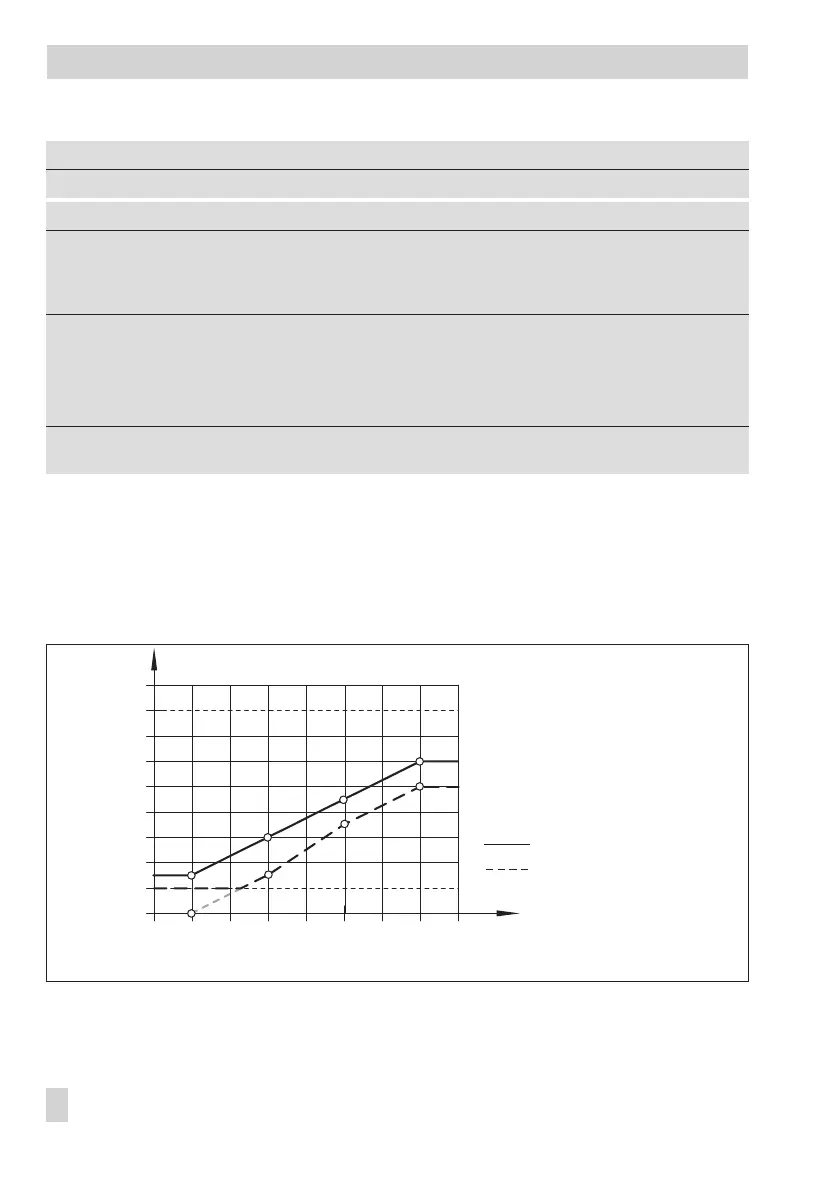

Fig. 6 · 4-point characteristic
P1 to P4 Points 1 to 4
t
VL
Flow temperature
t
A
Outdoor temperature
... min Min. t
VL
...max Max. t
VL
4-point characteristic
Reduced 4-point characteristic
