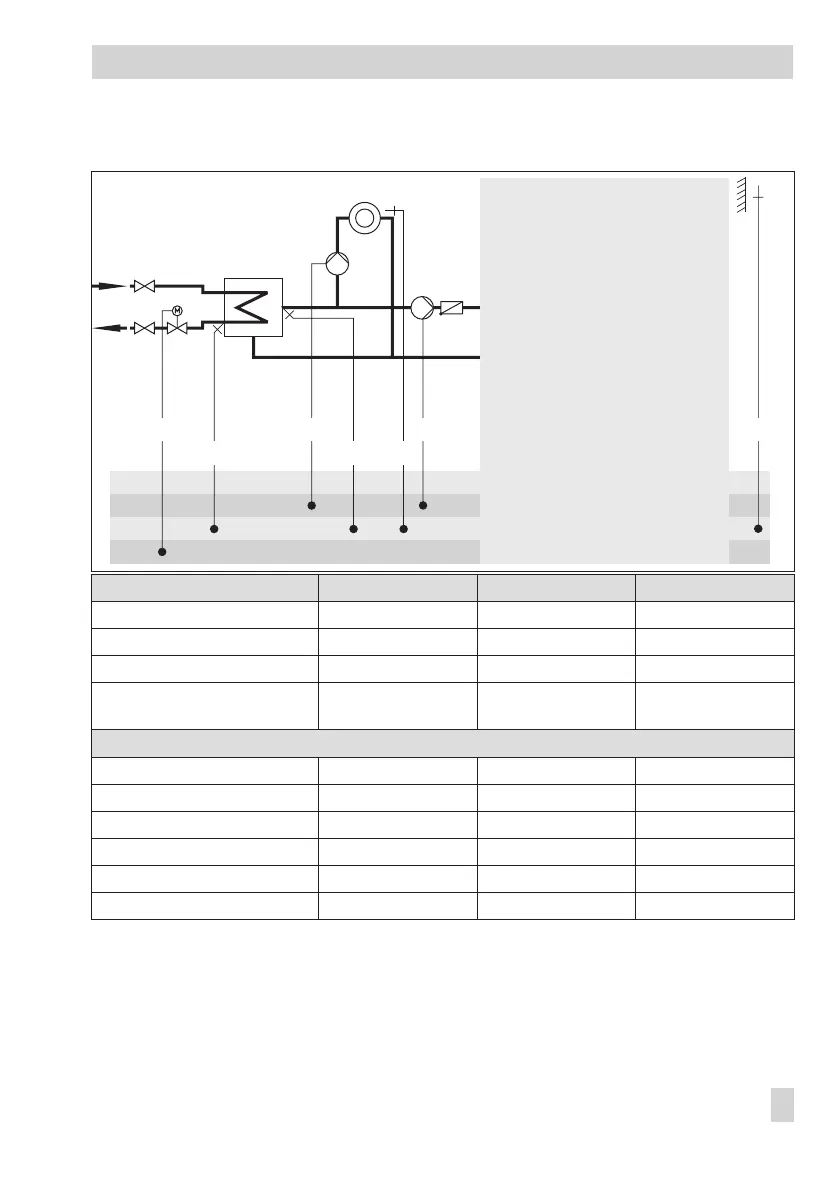

Systems Anl 2.1 to 2.3 (all versions of TROVIS 5575-00xx)
System Anl 2.1 Anl 2.2 Anl 2.3
Type of DHW heating Type 1 Type 2 Type 3
1)
XX = SLP BA9 SLP
Integration of flow sensor VF4 Not possible Possible –
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible –
Default setting
CO1 -> F01 - 0 (without RF1) - 0 (without RF1) - 0 (without RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (without SF2) - 1 (with SF2)
CO4 -> F05 - 0 (without VF4)
EB 5575 EN 37
Systems
BE
BA
AE
RK
AF1
RüF1 VF1
UP1RK1
RF1
XX
1)
DHW
heating
