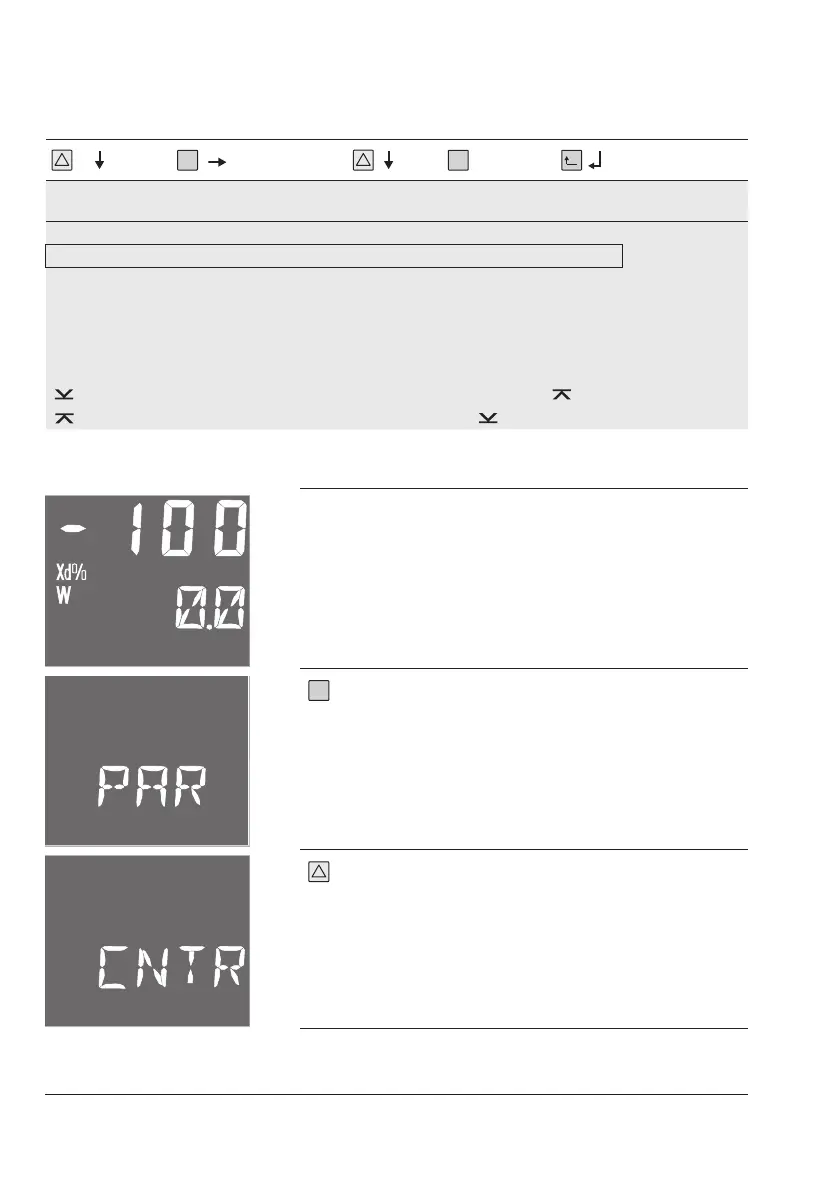

Start-up and conguration at the device
or
..............
and
, followed
by
Parameter selec-
tion
Parameter name Value range
1)
See
KP Proportional-action coefcient [0.1 … 1.0 … 100.0] uKH6493
TN Reset time [1 … 120 … 9999s]
TV Derivative-action time [1 … 10 … 9999s]
TVK1 Derivative-action gain [0.10 … 1.00 … 10.00]
Y.PRE Operating point [–10.0 … 0.0 … +110.0]
DZXD Dead band error Xd [0.0 … 110.0%]
DZXD Minimum effective error Xd
[–110.0% …
DZXD]
DZXD Maximum effective error Xd
[
DZXD … 110.0%]
1)
Default setting is in bold print.
The controller is in the operating level.
The reading on the display looks like this.
Î Open conguration level.
Reading: PAR (Control parameters menu)
Î 3 x
Select CNTR (Controller) menu.
