Troubleshooting_ 76
ate.
In optional tray 2
• Click this link to open an animation about clearing a jam.
• The
procedure is same for all optional trays.

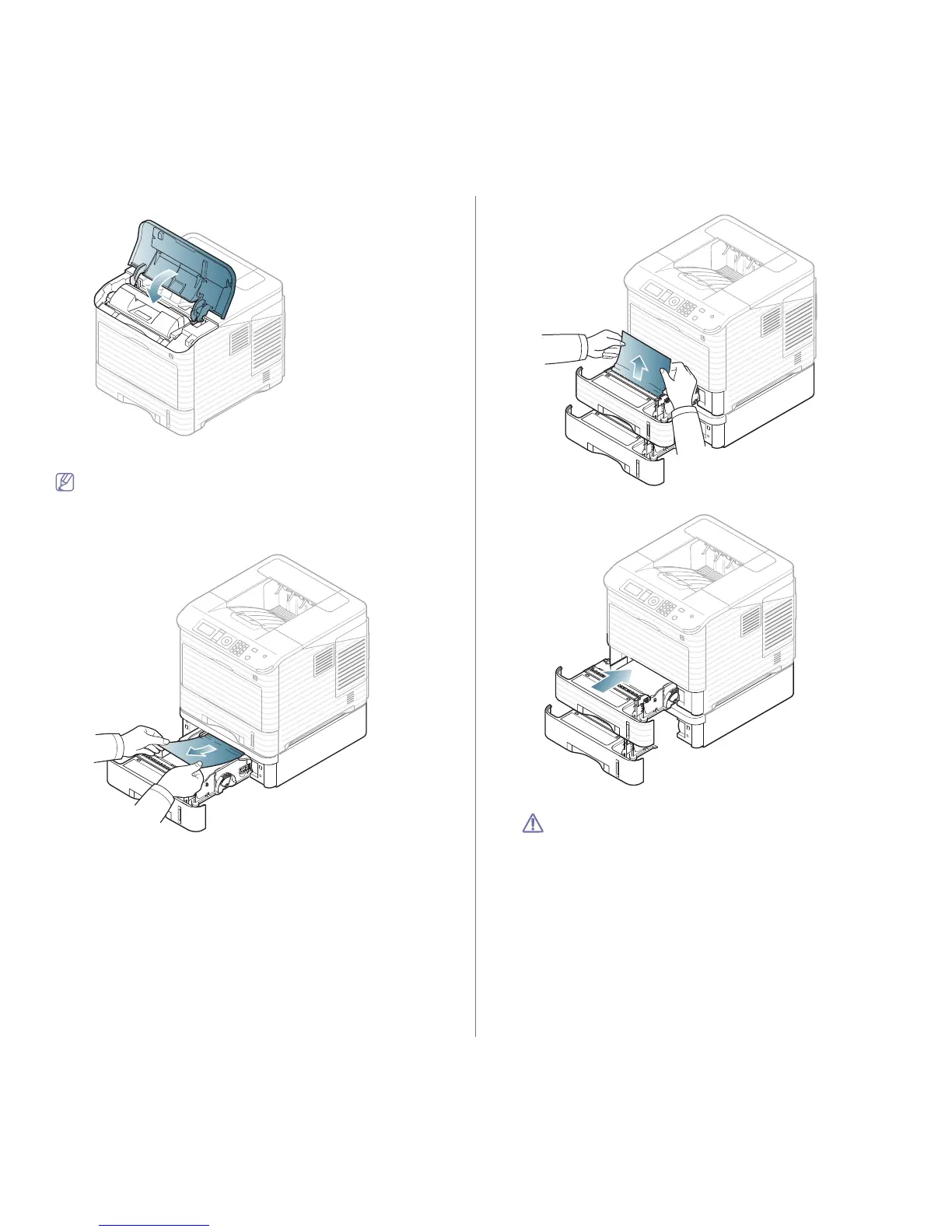

1. Pull out the optional tray 2.
2. Remove the jammed
paper by pulling in the direction shown. To avoid
tearing the paper, pull it out gently and slowly.
If the paper does not move when you pull or if you do not see the paper
in this area, stop and go to the next step.
3. Pull tray 1 half-way out.
4. Pu
ll the jammed paper straight up and out.
5. Insert the trays back into the machine.
6. Open and close the top cover to resume printing.
If the top cover is not completely closed, the machine will not oper-
