Sanding STS-752RC - ROAD; Define HZ Alignment

91

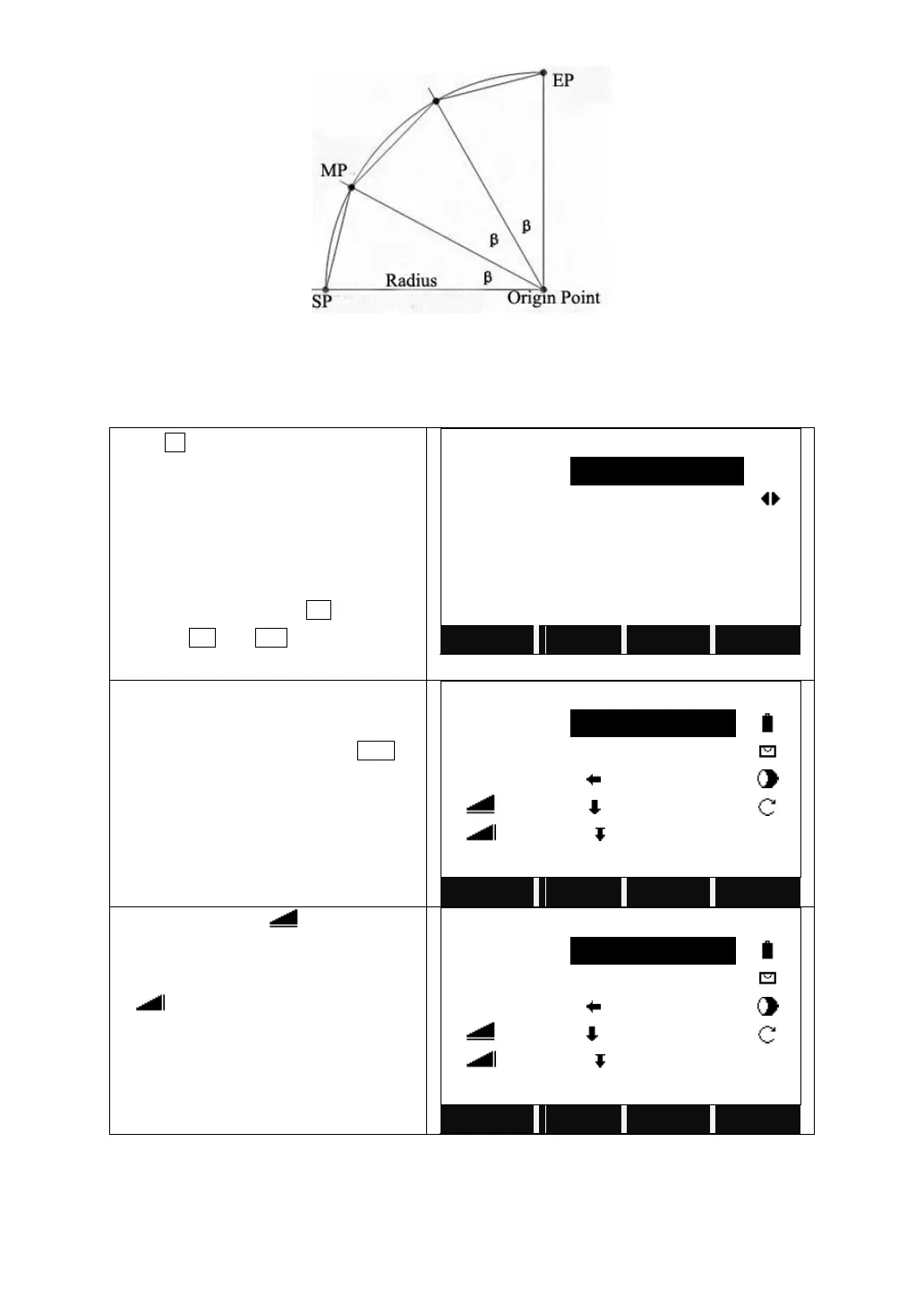

β: Angle
SP: Start point of arc
EP: End point of arc
MP: measurement point
Press F3 to start Stake Out Angle.
Select the distributing mode of
misclosure.
Input the angle to stake out, and the
system will calculate the Line according to
the distributing mode chosen.
Input the offset and press OK.
Pressing PT- and PT+ can display each
line of the arc to stake out.
【Stake Out Chord】
PtID
:
20
Miscls
:
End Arc
Angle
:
0.000 m
Line
:
0.000 m
Offset
:
0.000 m
0SET
PT-
PT+
OK
Input the PtID of the point to measure and
its prism height.
Collimate the prism and press DIST to
start measurement.
The system calculates and displays the
stake out offsets between the prism and
the point to stake out.
【Stake out Reference Arc】
PtID
:
21
R.HT
:
2.621 m
△Hz
:
-20°00′00
△
:
-2.082 m
△
:
-0.019 m
Ⅰ
Mem.
DIST
RECORD
NextPt
↓
When △Hz and △ is 0, it means
the current position of the prism is the
point to stake out.
△ mean the distance to dig or fill.
【Stake out Reference Arc】
PtID
:
21
R.HT
:
2.621 m
△Hz
:
-00°00′00
△
:
0.000 m
△
:
-0.019 m
Ⅰ
Mem.
DIST
RECORD
NextPt
↓
