Optical Backreflection Meter SPA-100
19 / 67
measurement center wavelength in “Center WL[um]”.
The sweep start wavelength “Start WL[um]” and end wavelength “Stop WL[um]”
are automatically set. Depending on the wavelength specifications of your TSL,
you may not be able to set the minimum resolution. When setting from the
sweep wavelength range, select "Wavelength Range Mode" and set the sweep
start wavelength "Start WL[um]" and end wavelength "Stop WL[um]". The
measurement resolution corresponding to the swept wavelength range is
displayed.
Select the measurement mode from the following three modes.
Reflection (Port 1):
Perform reflection measurements on measurement port 1 only
Reflection (Port 2):
Performs reflection measurements on measurement port 2 only
Reflection (Port 1+2):
Perform reflection measurements simultaneously on both
measurement ports 1 and 2

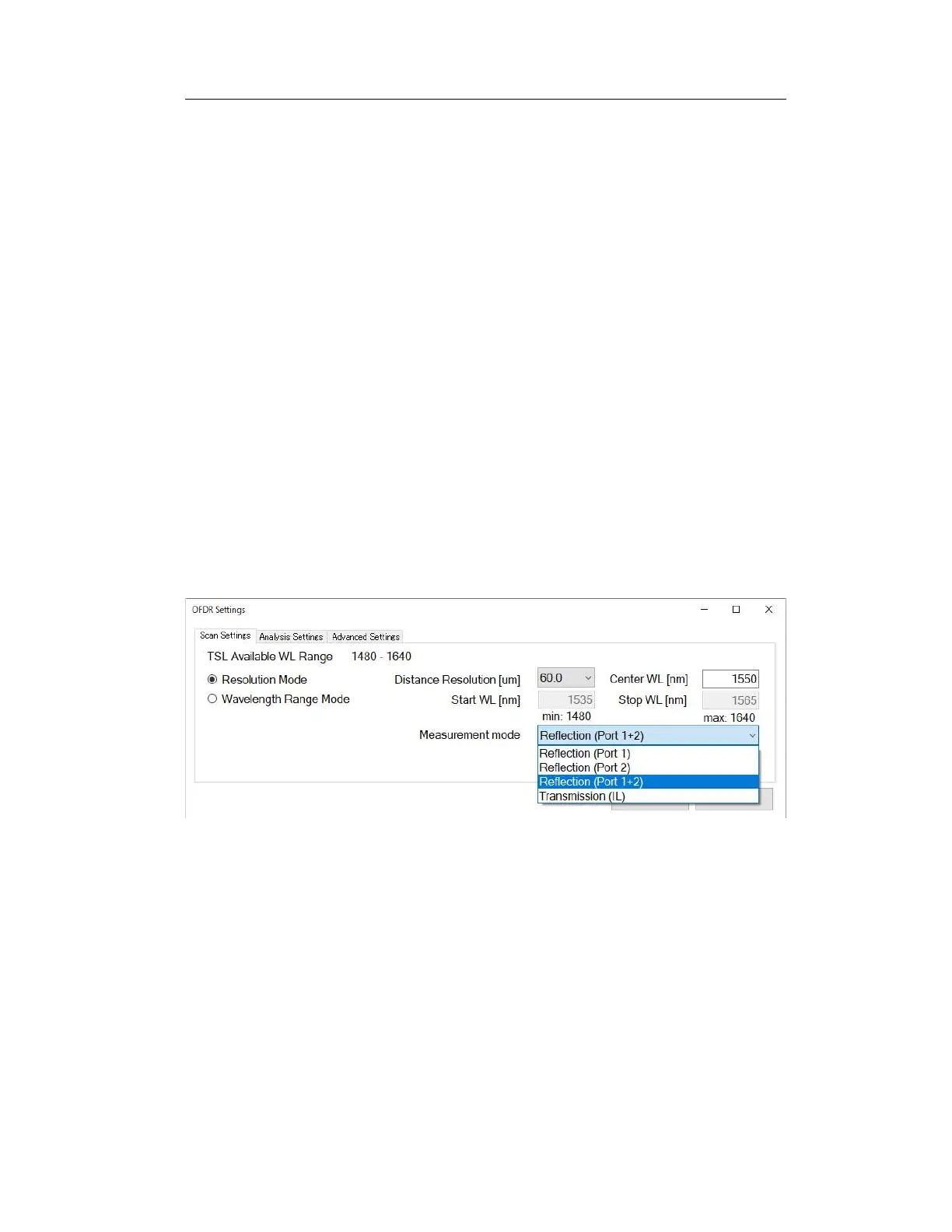

Figure 6-5
Transmission (IL) is the mode for measuring transmission characteristics.
For measuring transmission properties, please refer to chapter 6.9.
Click the "Save" button to save the settings and close the panel.
