Sanyo PLC-HP7000L Service Manual

-33-
Optical Parts Disassembly

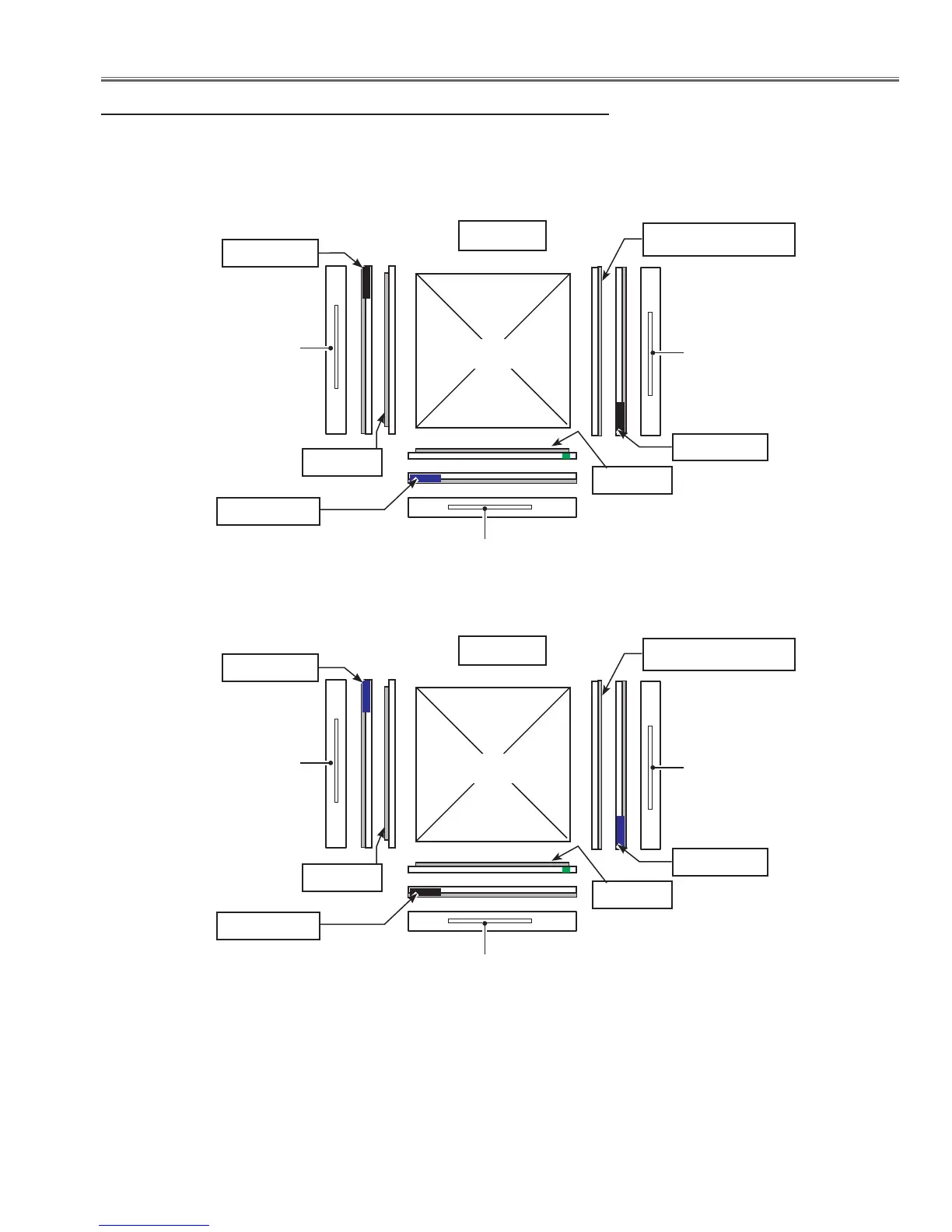

LCD panel/prism top view
B-LCD panel
G-LCD panel
R-LCD panel
Prism
Film side
Film side
Violet Marker
Black Marker
Black Marker
There are 2 types of the LCD panel/prism assembly named Type-R and Type-L. Mount the polarized glasses (OUT)
and optical filters (ICV) according to the type of the LCD panel/prism assembly as shown in the figure below.
2-2 Polarized glass (OUT)/Optical filter (ICV) mounting
TYPE-L
Brown colored side
B-LCD panel
G-LCD panel
R-LCD panel
Prism
Film side
Film side
Black Marker
Violet Marker
Violet Marker
TYPE-R
Brown colored side
