Optical Parts Disassembly

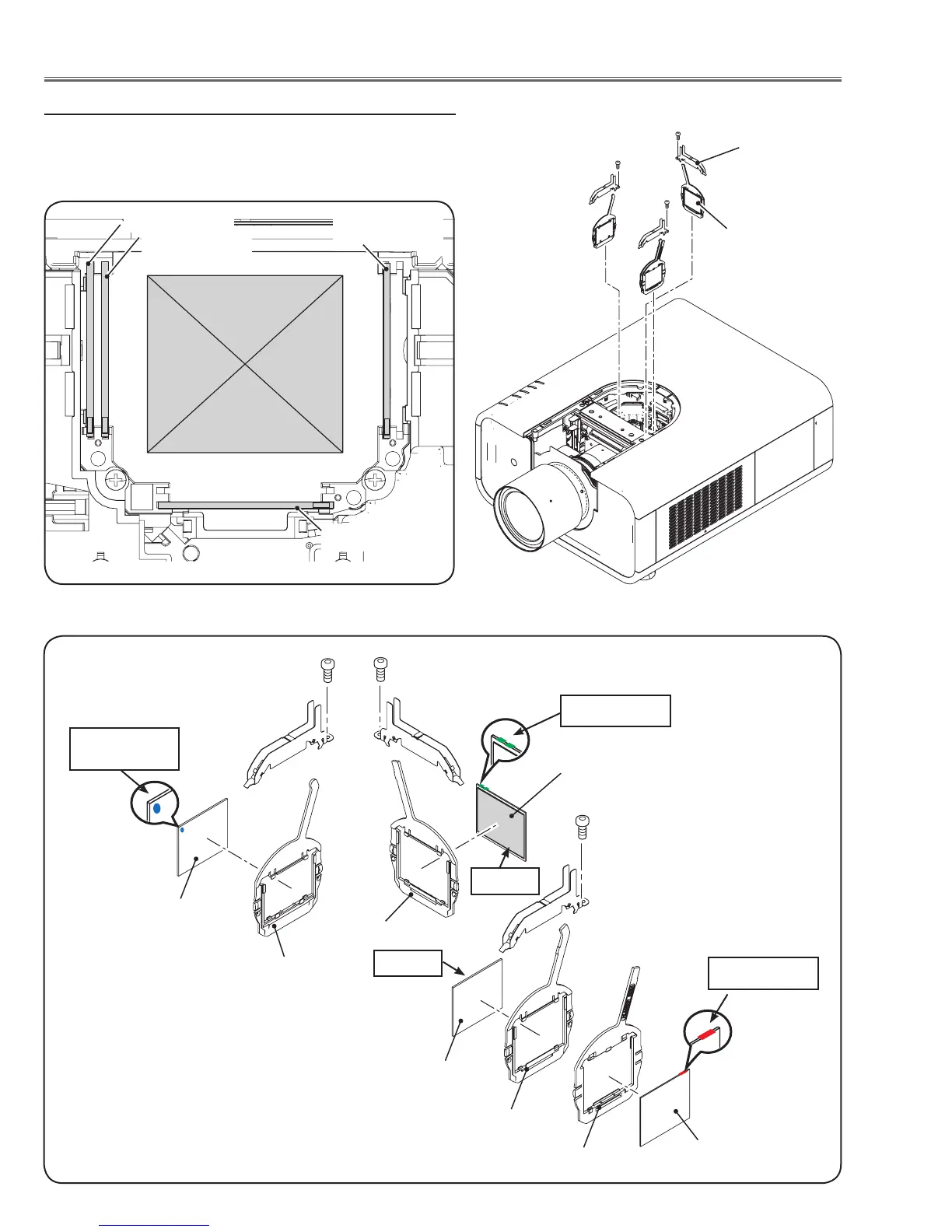

3 Polarized glass(IN) assy removal

1 Remove 1 screw A (M2.5x5) on each stopper and take the

polarized glasses upward off.

Polarized glass

(IN) assy

Stopper

Blue

Red

Green

Polarized glass(IN/B)1

Blue

Green

Red

Green marker

Red marker

Blue marker

(Behind)

Polarized glass(IN/R)1

Polarized glass(IN/R)

Polarized glass(IN/G)2

Film side

R-holder A

R-holder

G-holder A

B-holder

R-holder

R-holder A

G-holder A

B-holder
