-37-
Optical Parts Disassembly
238
241
240
238
490490
489603
241
240
11
10
9
12
2
1
16
13
7
4
3
5
9
17
8
14
6
15

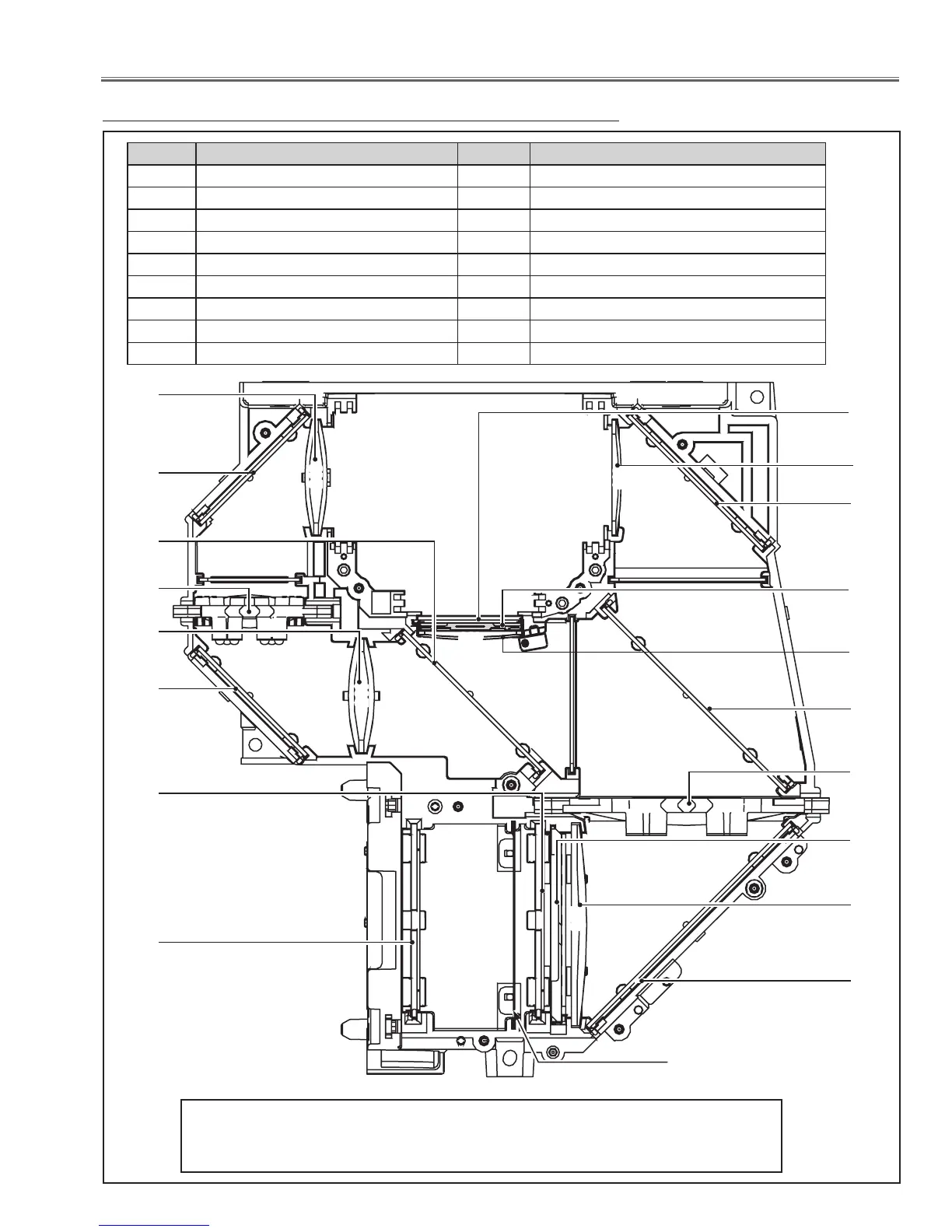

5-1 Optical parts locations in the optical unit
No. Parts Name No. Parts Name
1 LENS,INTEGRATOR(IN) * 10 LENS,RELAY(IN)
2 LENS,INTEGRATOR(OUT) * 11 LENS,RELAY(OUT) *
3 ASSY,PRISM(PBS) 12 LENS,CONDENSER(R)
4 LENS,CONDENSER(IN) 13 MIRROR(B)
5 MIRROR(W-COLD) 14 POLARIZED GLASS(IN/GB)
6 LENS,CONDERSOR(OUT) * 15 LENS,CONDENSER(G)
7 DICHROIC MIRROR (B) 16 LENS,CONDENSER(B)
8 DICHROIC MIRROR (G) 17 OPTICAL FILTER (LC-CS)
9 MIRROR(R)
Shield Plate
Note:
The parts indicated with (*) are fixed with the adhesive onto the optical base bottom,
so these parts are not the replaceable parts.
