4
Bar Graph:
The bar graph indicates how much
of the scale’s capacity is “used up”
by the current load; during check-
weighing, t indicates the control
limits.
The following symbols may be
displayed here:
0% Lower load limit
100% Upper load limit
Bar graph showing 10%
intervals
- Minimum for checkweighing
= Target for checkweighing
+ Maximum for checkweighing
Plus/Minus Sign, Stability Symbol:
A plus or minus sign (F or H) is
shown here for a weight value (e.g.,
a calculated value when weighing
in percent) or the S symbol, indica-
ting that the verified or verifiable scale
has been zeroed or tared.
Measured Value Line:
This section shows the weighed or
calculated value or alphanumeric
input.
Note Concerning Verified Scales
Approved for Use as Legal Measuring
Instruments in the EU**:
For verified scales that have
a verification scale interval e
not equal to the scale interval d,
the last digit on the display
is bordered.
Unit and Stability:
When the scale reaches stability,
the weight unit or calculation unit is
displayed here.
The a symbol may be displayed
for readouts on a scale verified for
legal metrology. However, these
readouts can be used only for
standard applications (not in legal
metrology/not legal for trade).
**including the Signatories of
the Agreement on the European
Economic Area

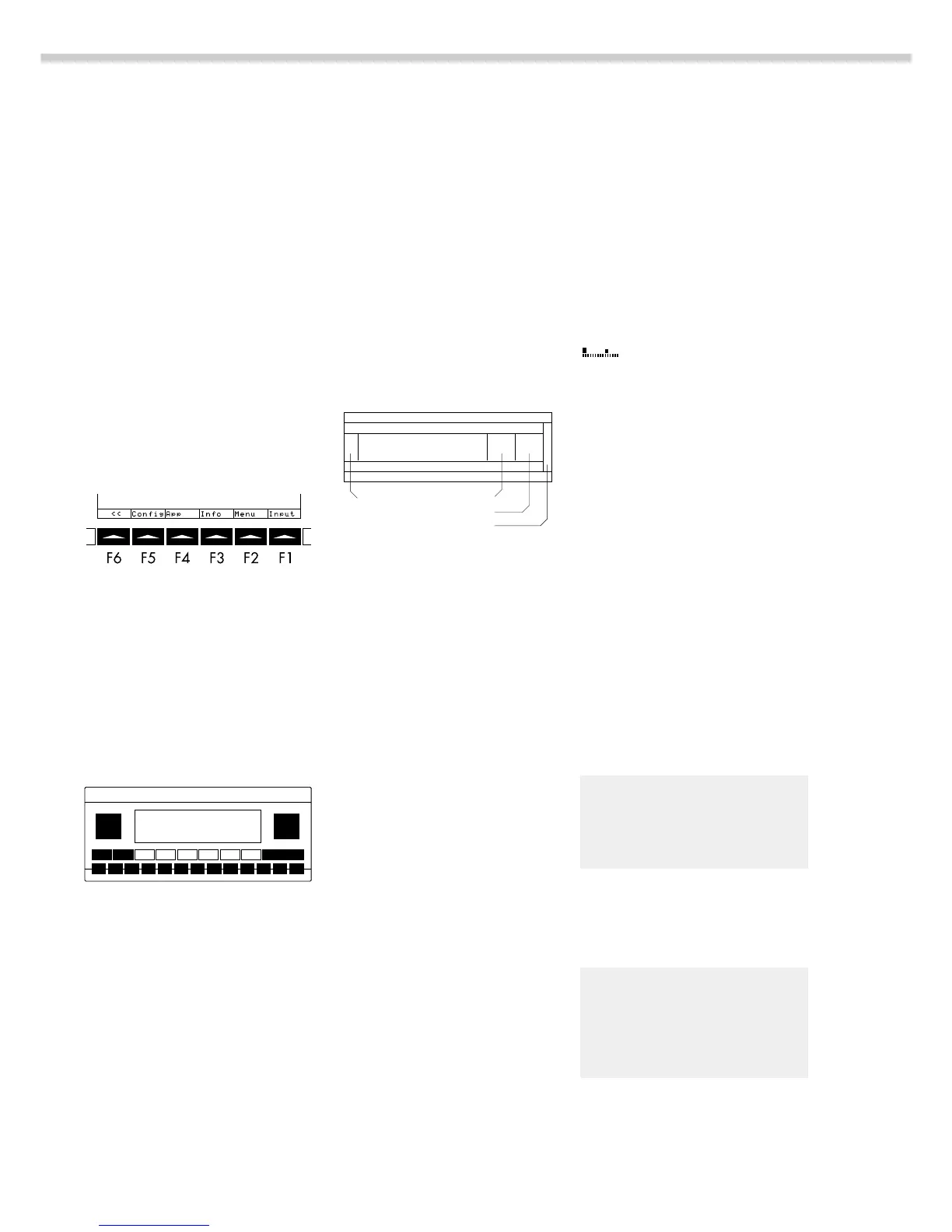

Display
There are two fundamentally different
types of display:
– display of measured and calculated
values
– display for menu parameter settings
(setup)
Display of Measured and
Calculated Values
This display is divided into
nine sections.
Line for Metrological Data:
If the scale is verified for use in legal
metrology, the following metrological
specifications are shown here:
Max Maximum capacity of
the scale
Min Minimum capacity of the scale;
i.e., the minimum weight allowed
when the scale is used in legal
metrology
e Verification scale interval
of the scale
d Readability: indicates the scale
interval of the scale
R1 Displayed when e = d
thru*
R4 e = d
On standard scales, only Max
and d are shown.
* thru = throug
Line for metrological data
Bar graph
Measured value line
Text line
Soft key labels
Plus/minus sign Unit/Stability indicator
Tare memory
Calculated value
Application pictograms
Keys
Your Factory scale is operated either
through the keys on the display and
control unit or via a connected PC.
Operation through the scale keys is
described in the following.
Function Keys (Soft Keys)
The current function of a soft key
is indicated in the bottom line
of the display. (In the example shown
below,
oo: Exit the setup menu
Config: Printout
App: Application menu
Info: Scale data
Menu: Scale operating menu
Input: User data input)
The function keys are numbered F1
through F6, from right to left.
Labeled Keys
These keys always have the function
indicated, but are not available at
all times. Availability of these
functions depends on the current
operating status and menu settings.
