6 Installation of Options
131
CL4NX/CL6NX Service Manual

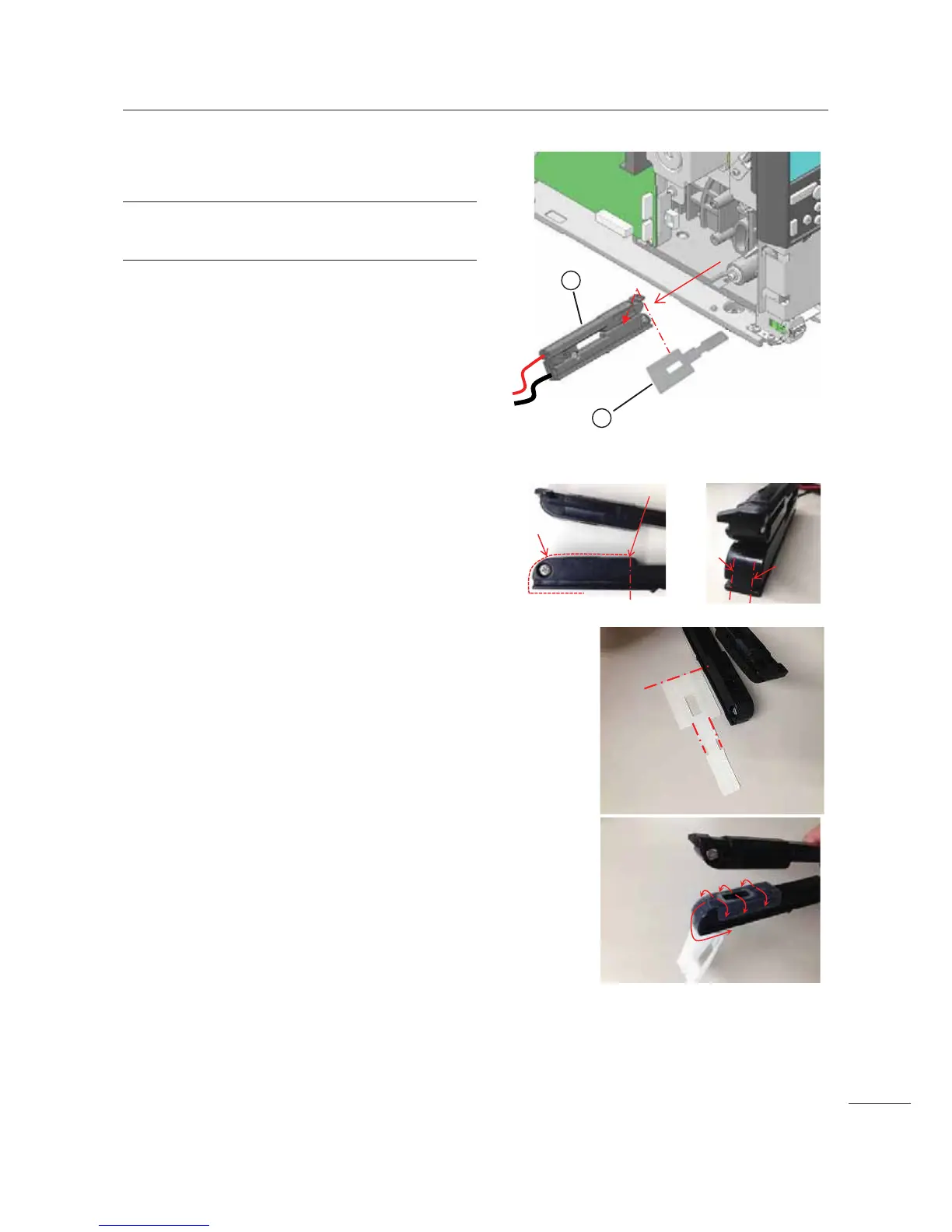

7 Pull out the sensor holder assembly #
from the printer.
Note
Be careful not to break the wires.
8 Follow steps 9 and 10 to paste the
pure sheet (sensor)
%onto the
sensor holder assembly
#.
9 Clean the areas a and b on the
sensor holder assembly where the
sheet is to be pasted.
10 Align a and b to the areas on
sensor holder assembly and paste the
sheet as shown in the arrow direction.
13
12
b
b
a
a
b
