SATO CL6NX Service Manual

6 Installation of Options
132
CL4NX/CL6NX Service Manual

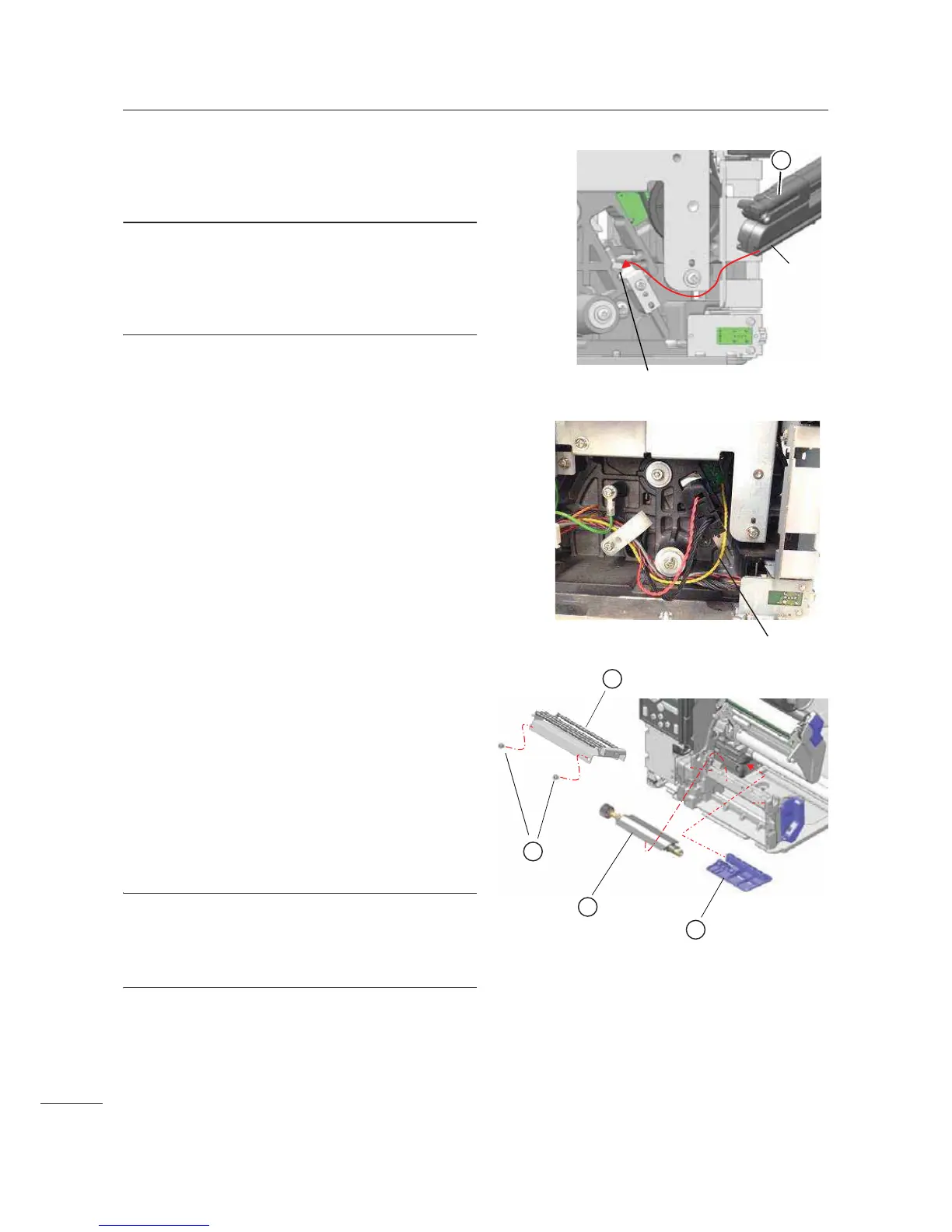

11 Insert the sensor holder assembly #
by aligning the rail to fit in the protrusion
as shown.
Note
• Do not close the print head when inserting the
sensor holder assembly.
• Make sure that the movement of the sensor holder
assembly is smooth.
12 Arrange the wire route so that the yellow
wire is under the sensor holder
assembly.
13 Attach the media frame (linerless) & by
tightening the screws
(while pressing
down the media frame,
14 Attach the linerless platen roller '.
15 Attach the media sensor guide ,and
tilt the sensor guide lock back to the
locked position.
Note
• Make sure that the movement of the sensor holder
assembly is smooth.
• Set the media sensor guide to the innermost side.
12
Rail
Protrusion
Yellow wire
14
8
15
9
