SATO CL6NX Service Manual

2 Operation and Configuration
20
CL4NX/CL6NX Service Manual

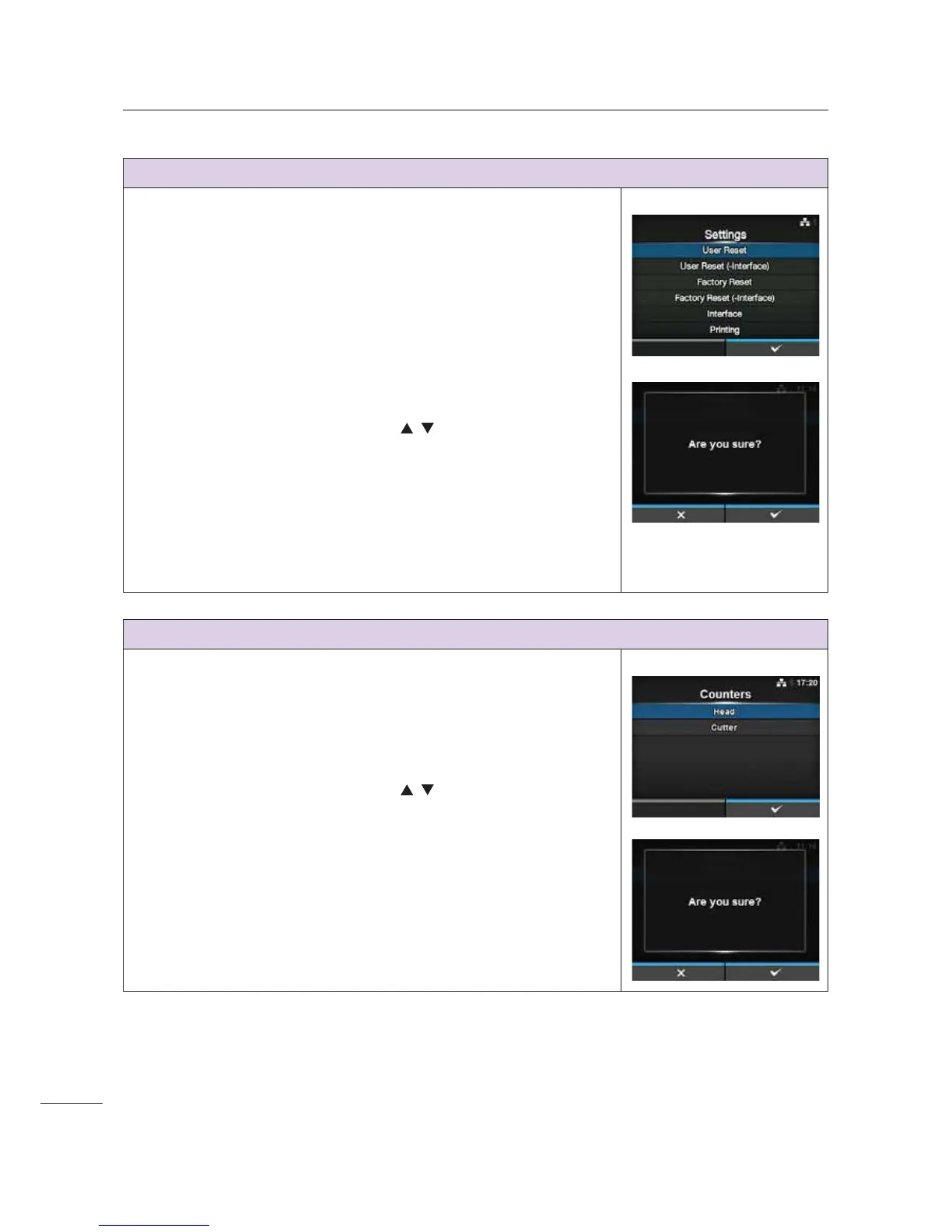

Settings
Tools > Service > Reset > Select > Settings
Select the setting items to be initialized.
The options are as follows:
• User Reset: Initialize the setting values.
• User Reset (-Interface): Initialize the setting values that are not
included in the Interface menu.
• Factory Reset: Initialize to the status after factory shipment.
• Factory Reset (-Interface): Initialize the items that are not included in
the Interface menu to the status after factory shipment.
• Interface: Initialize the setting values in the Interface menu.
•Printing: Initialize the setting values in the Printing menu.
Select the item to be initialized using the / buttons, then press the
right soft button to perform the initialization.
The confirmation screen shows.
Press the left soft button to cancel or right soft button to perform the
initialization.
Refer to Section 7.1 List of Initial Value of the CL4NX/CL6NX operator
manual and Section 2.4 Initial Values in Tools Menu of this manual for
the initial value of each setting item.
Counters
Tools > Service > Reset > Counters
Select the counter information to be initialized.
The options are as follows:
•Head: Initialize the head counter (media feed distance).
•Cutter: Initialize the cutter counter (number of cuts).
Select the item to be initialized using the / buttons, then press the
right soft button to perform the initialization.
The confirmation screen shows.
Press the left soft button to cancel or right soft button to perform the
initialization.
Refer to Section 7.1 List of Initial Value of the CL4NX/CL6NX operator
manual and Section 2.4 Initial Values in Tools Menu of this manual for
the initial value of each setting item.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
