SATO CL6NX User Manual

117

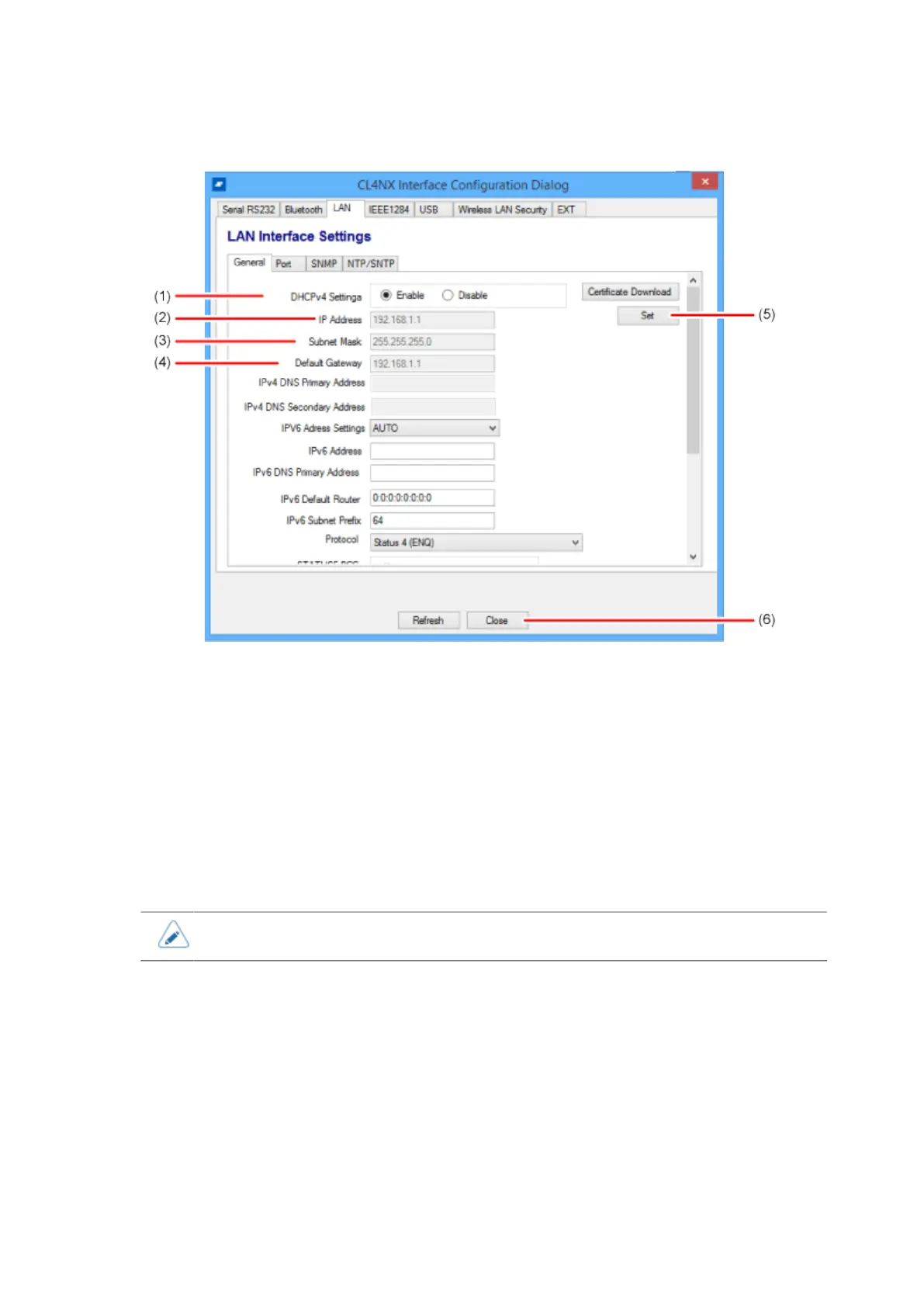

6. Select or enter the LAN settings as necessary.
(1) When you select [Enable], the IP address which is assigned from the DHCP server becomes
available. You cannot set the IP address, subnet mask, or default gateway address. When you
set the IP address manually, select [Disable].
(2) Specify the IP address.
(3) Specify the subnet mask.
(4) Specify the default gateway address.
(5) The settings on the screen will be sent when you enter the LAN settings (such as the IP address)
and click [Set].
(6) Close the interface settings screen.
• In the initial value of the LAN settings, the DHCP is enabled.
7. Restart the printer.
Wireless LAN Interface Settings
Configure the wireless LAN interface settings such as the IP address by using the All-In-One Tool.
Before setting the wireless LAN interfaces, connect the printer to a computer with a USB cable or LAN
cable other than the wireless LAN interfaces.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
