Conditions That Trigger Paper End
214
Conditions That Trigger Paper End, Label Near End, Ribbon End and
Ribbon Near End
Conditions That Trigger Paper End
The conditions that trigger paper end vary depending on the operation of the printer.

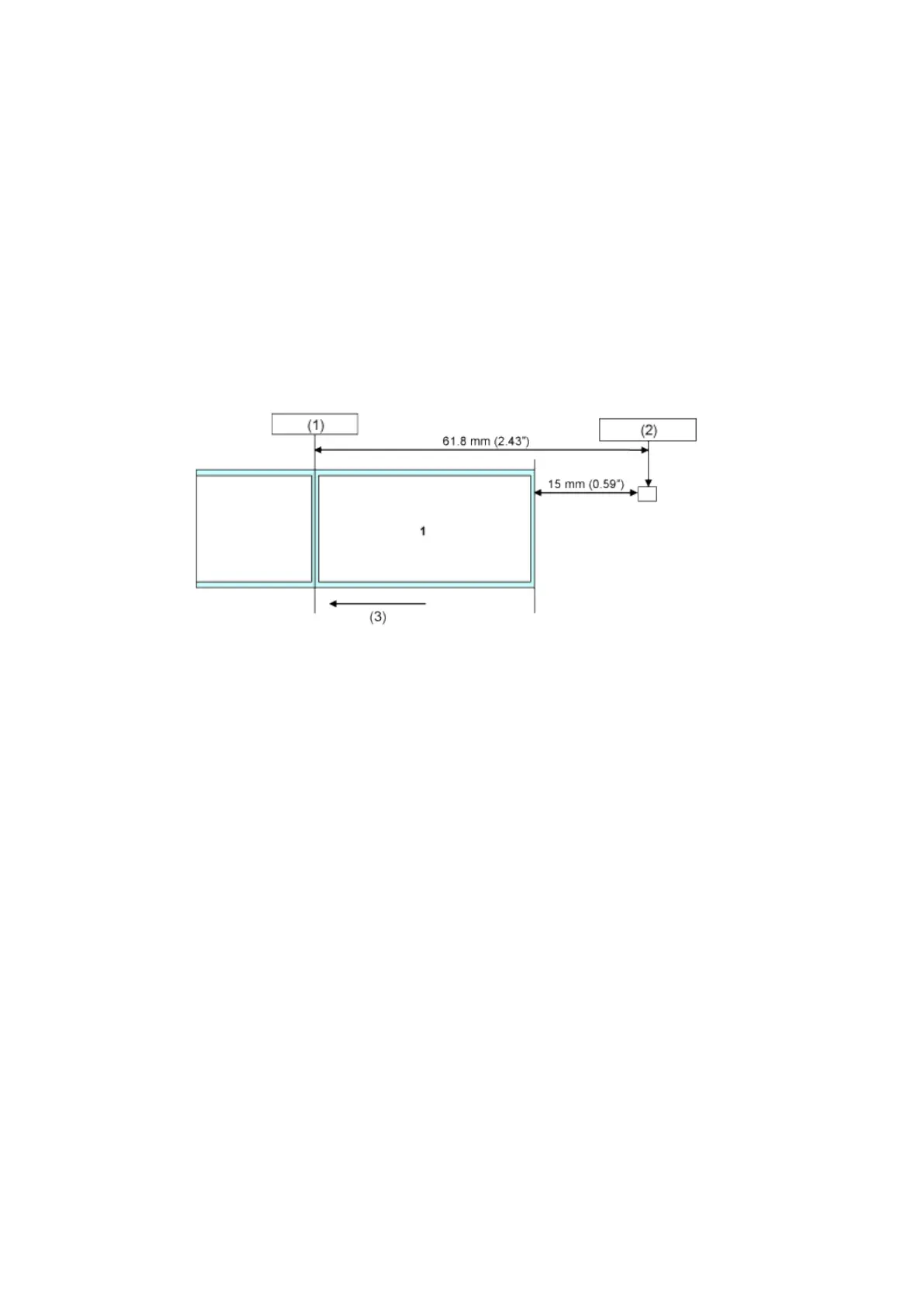

Conditions That Trigger Paper End in the Feeding Operation
A paper-end occurs if the no-paper condition persists even after the paper-end sensor detects the no-
paper condition when 15 mm (0.59") continues to be fed.
(1) Print head position
(2) Paper end sensor: I-mark sensor/Gap sensor
Select in [Printing] > [Advanced] > [Paper End] menu, or specify by command.
(3) Media feed direction
Conditions That Trigger Paper End in the Printing Operation
1. The paper end sensor detects a no-paper condition at the position where 15 mm (0.59") has been
fed.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
