Operations in Dispenser Mode
550
Operations in Dispenser Mode

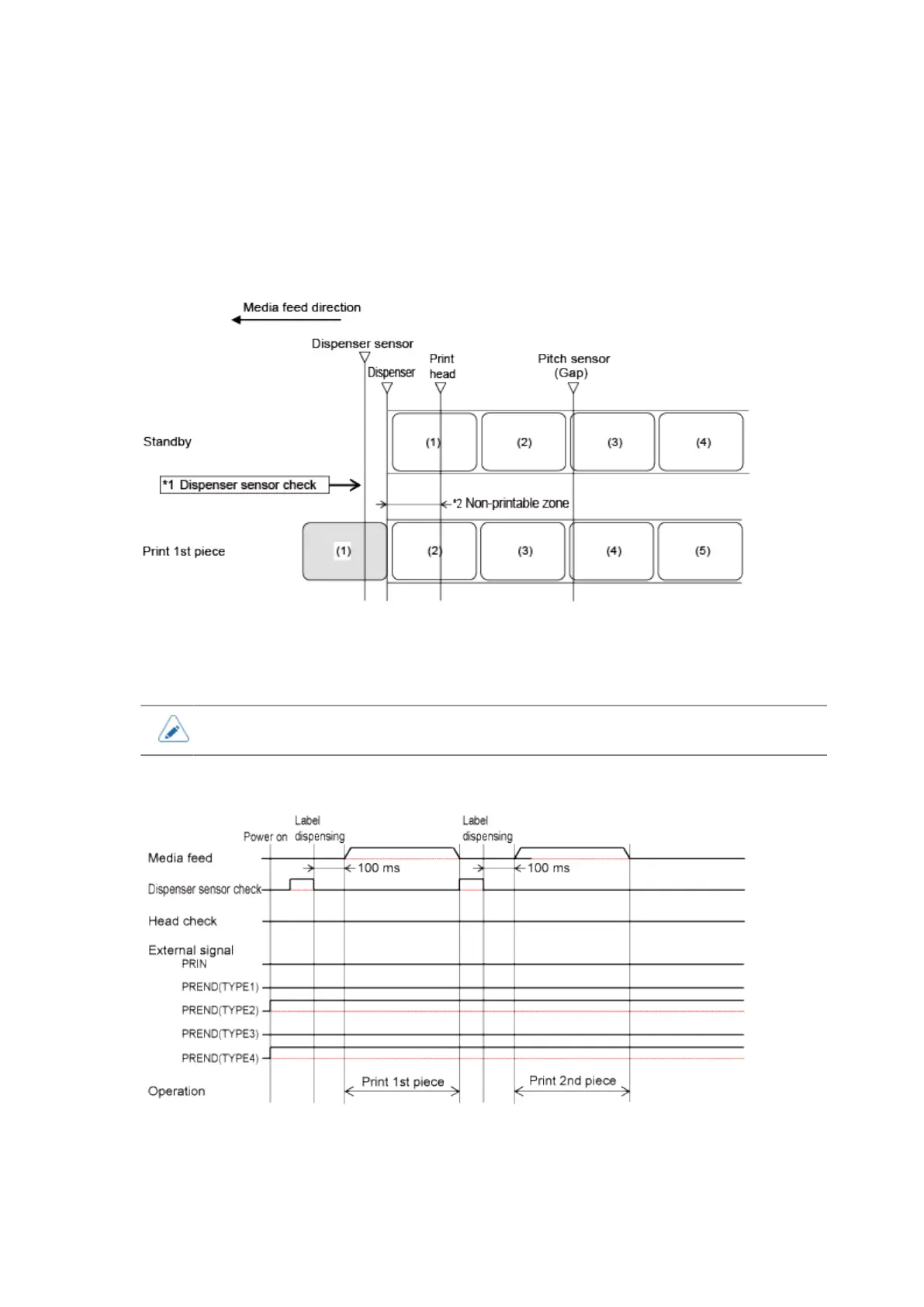

Operation 23: Dispenser Mode, No Backfeed, and with Sensor Input (Head Check
Disabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the printer does not perform the next
operation until the label is dispensed.
*2 Because backfeeding is not done, the media in this area is non-printable.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
To Next Page
