Head Pressure Setting
Set the head pressure according to the media thickness, including the liner.
1. Open the top cover of the printer.

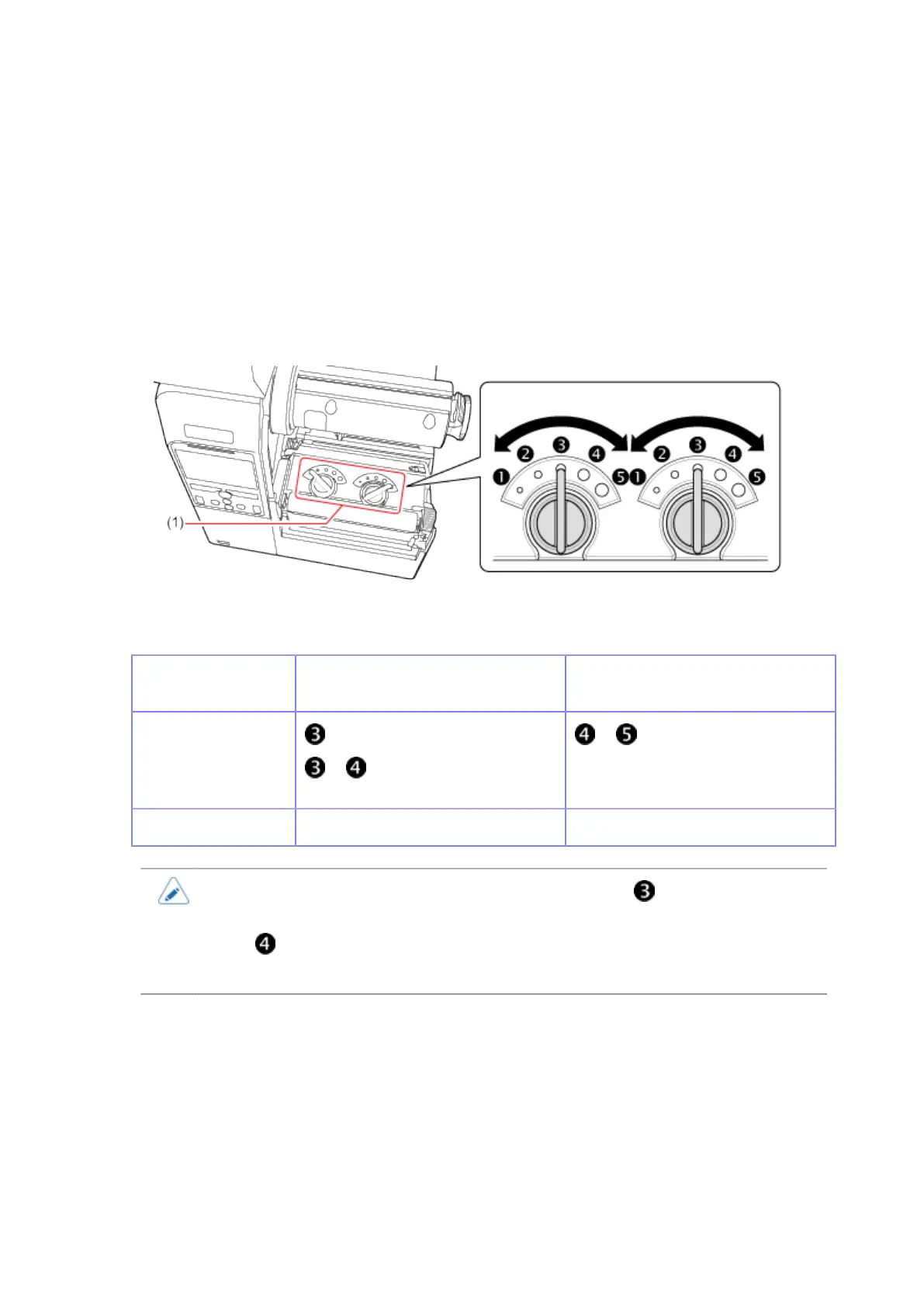

2. Find the adjustment dials (1) on the top of the print head assembly.
3. Turn the adjustment dials (1) according to the media thickness and set the head
pressure.
Media Thickness
(mm (inch))
0.060 - 0.200 (0.0024" - 0.0079") 0.200 - 0.268 (0.0079" - 0.011")
Adjustment Dials
(Left and Right, CL4NX only)
to (Left and Right, CL6NX
only)
to
(Left and Right)
Reference Thin paper/normal label, etc. Thick paper/tag, etc.
The factory default settings of both Left and Right dials are .
For CL6NX dispenser model, the factory default settings of both Left and Right dials
are .
The thickness of the media includes the liner.
Be sure to set the pressure balance after adjusting the head pressure.
