SATO CL6NX User Manual

[Network]
342

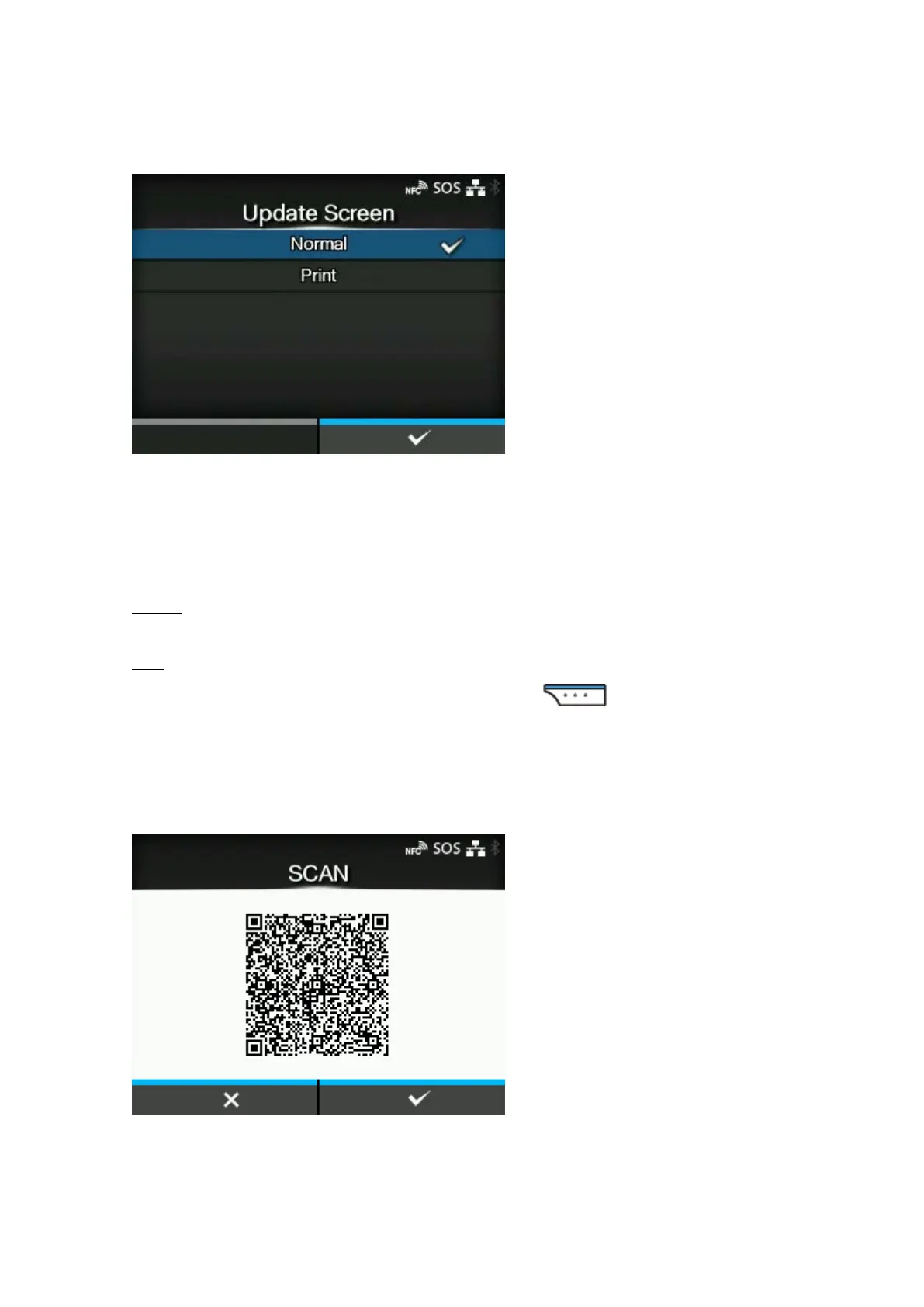

[Update Screen] (SOS users only)
Sets whether to print a QR code displayed with SOS (SATO Online Services) periodic notification or
SOS update.
Appears only if you have selected [On-Demand] in the [SOS Mode] menu.
A specialized application is required to scan the QR code.
The options are as follows:
Normal
Shows the scan screen of a normal QR code.
Print
Prints with the scan screen for the QR code. Press the button to print the QR code.
To print the QR code, use media of more than 33 mm (1.3") in length and more than 33 mm (1.3")
in width (not including the liner).
[SOS Update] (SOS users only)
Shows the current printer information with a QR code. Scan the QR code with a tablet or smartphone,
and send it to the SOS cloud.
Appears only if you have selected [On-Demand] in the [SOS Mode] menu.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
