SATO CL6NX - Page 555

555

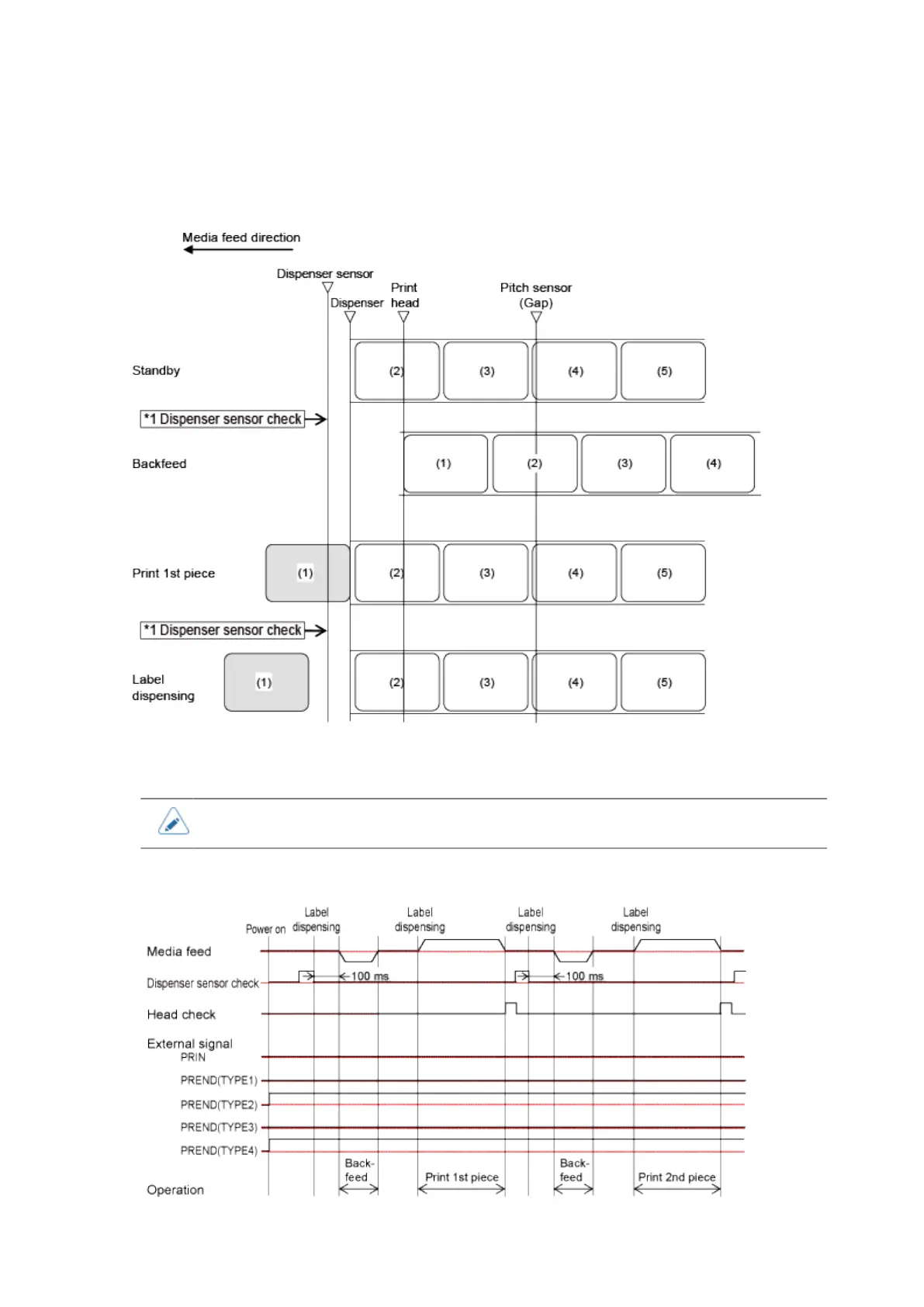

Operation 28: Dispenser Mode, Backfeed Before Printing, and Without Pulse Input
(Head Check Enabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the printer does not perform the next
operation until the label is dispensed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
