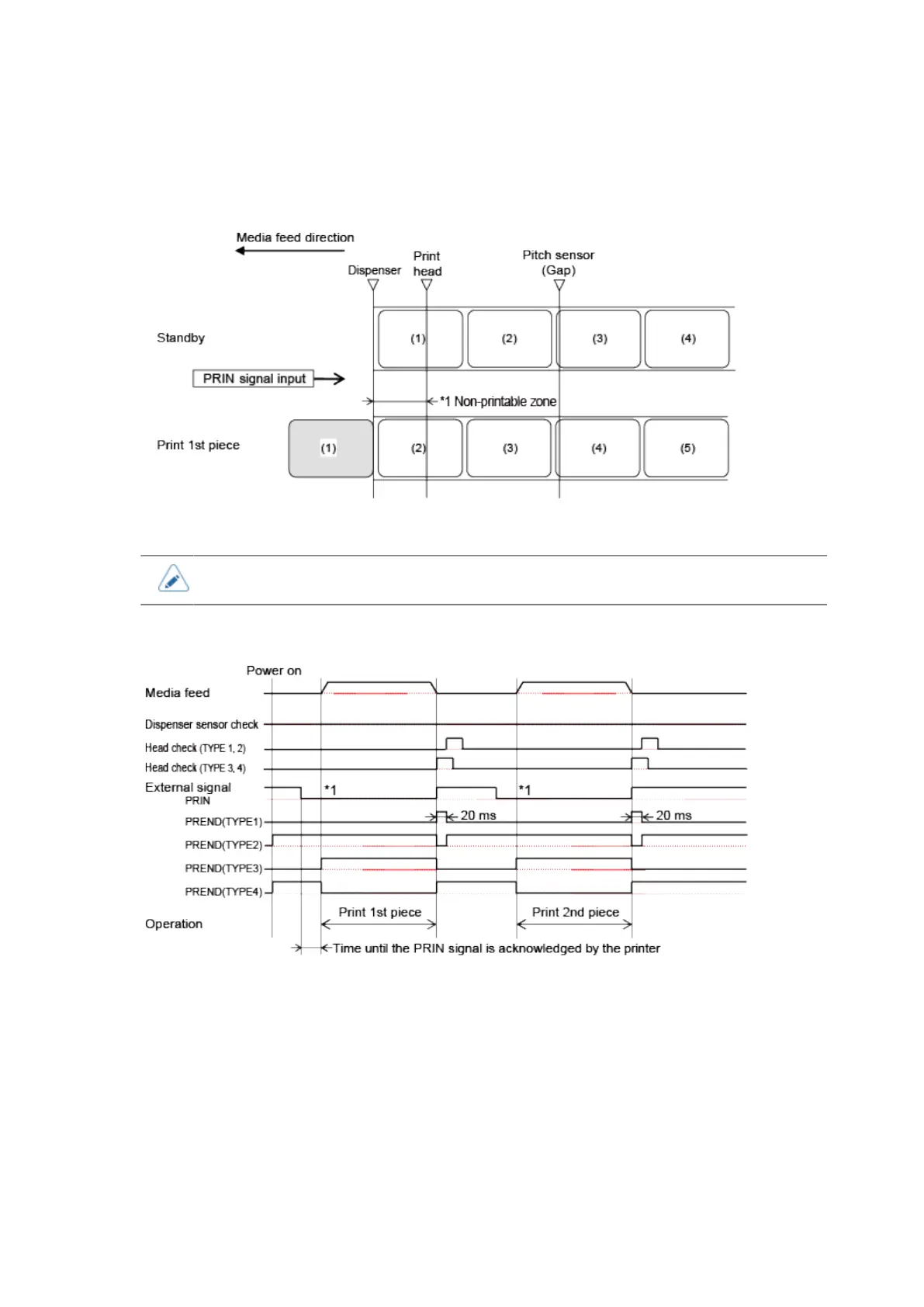

Operation 30: Dispenser Mode, No Backfeed, and with Pulse Input (Head Check
Enabled)
Operation
*1 Because backfeeding is not done, the media in this area is non-printable.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
