SATO FX3-LX Driver Manual

31

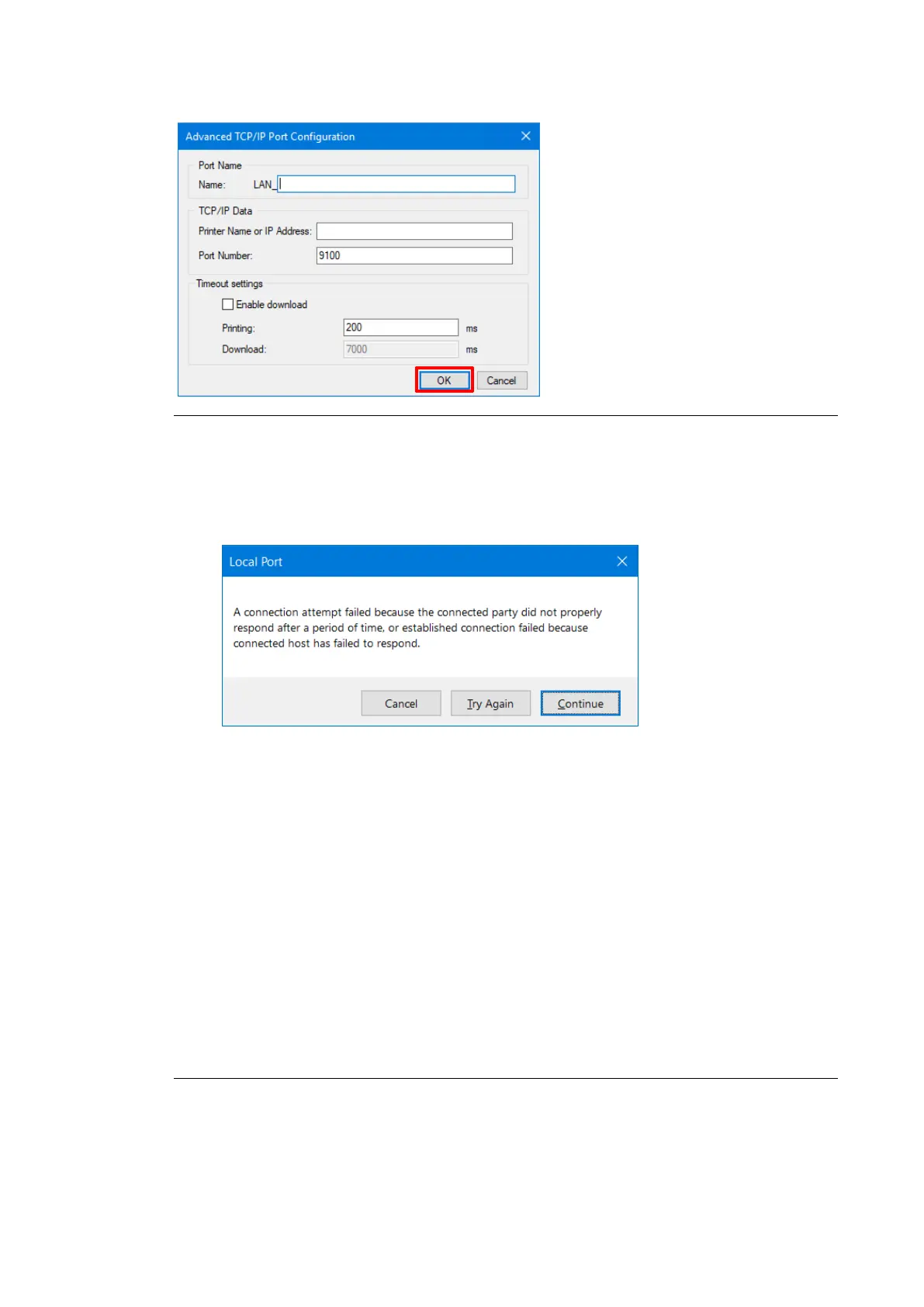

Configure the port settings and click [OK]. 6.
If you selected [TCP/IP (LAN)]
Note:
 You cannot set the same name as an existing port name.
 The computer cannot communicate with the destination printer if the [Printer Name or IP Address] and
[Port Number] settings do not match those of the printer.
 Click [OK] to check communications using the configured settings. If communications failed, the
following screen appears.
[Cancel]
Returns to the previous screen. Click this button to change [Printer Name or IP Address] or any
other settings.
[Try Again]
Checks communications again.
[Continue]
Does not check communications and proceeds to the next step. Click this button when you want
to continue with the port setup without checking communications with the printer.
 Normally, you do not need to change [Port Number] (the default value on the printer is also 9100).
 Normally, you do not need to change the timeout settings.
 The [Advanced TCP/IP Port Configuration] dialog box can be displayed even after installing the printer
driver with the following procedure:
a. Open [Devices and Printers], right-click the desired printer, and select [Printer properties].
b. Click the [Ports] tab.
c. Click [Configure Port].

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
