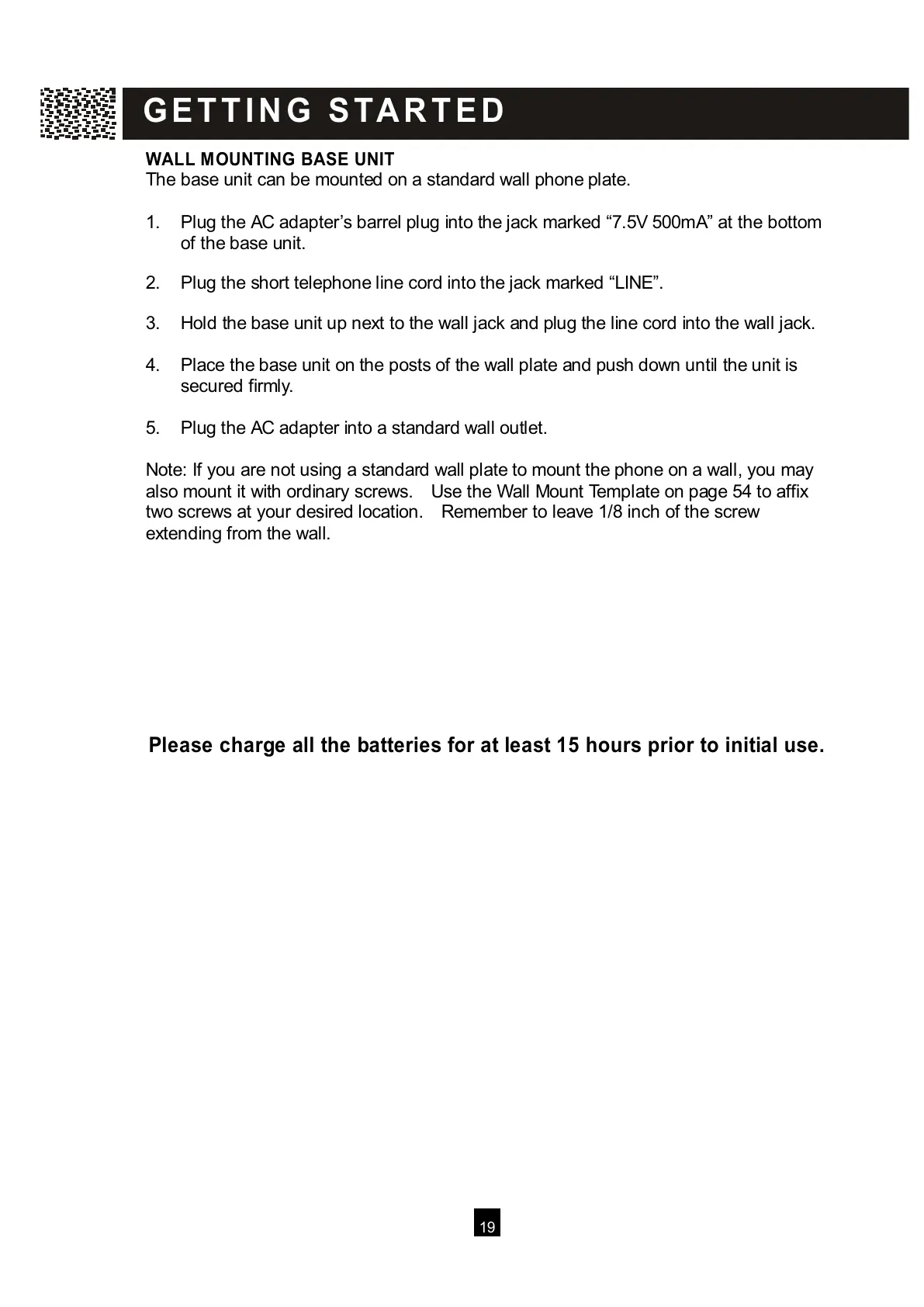

WALL MOUNTING BASE UNIT
T
he base unit can be mounted on a standard wall phone plate.
1. Plug the AC adapter’s barrel plug into the jack marked “7.5V 500mA” at the bottom
of the base unit.
2. Plug the short telephone line cord into the jack marked “LINE”.
3. Hold the base unit up next to the wall jack and plug the line cord into the wall jack.
4. Place the base unit on the posts of the wall plate and push down until the unit is
secured firmly.
5. Plug the AC adapter into a standard wall outlet.
Note: If you are not using a standard wall plate to mount the phone on a wall, you may
also mount it with ordinary screws. Use the W all Mount Template on page 54 to affix
two screws at your desired location. Remember to leave 1/8 inch of the screw
extending from the wall.
Please charge all the batteries for at least 15 hours prior to initial use.
