Scanreco – Service Manual G6 Radio Remote Control System
7.2.3. Rotary Encoders
A maximum of three rotary encoders can be configured on the transmitter. A set of numbers
will show on the display when the Rotary encoders self-test is started. Check the status of the
rotary encoders by turning them individually in increments of one (1) between the minimum
and maximum values (000-255).
NOTICE!
If the numbers shown on the display do not change when turning the encoder:
1. The rotary encoder is broken.
2. The rotary encoder has not been implemented or activated in the software setting.
i

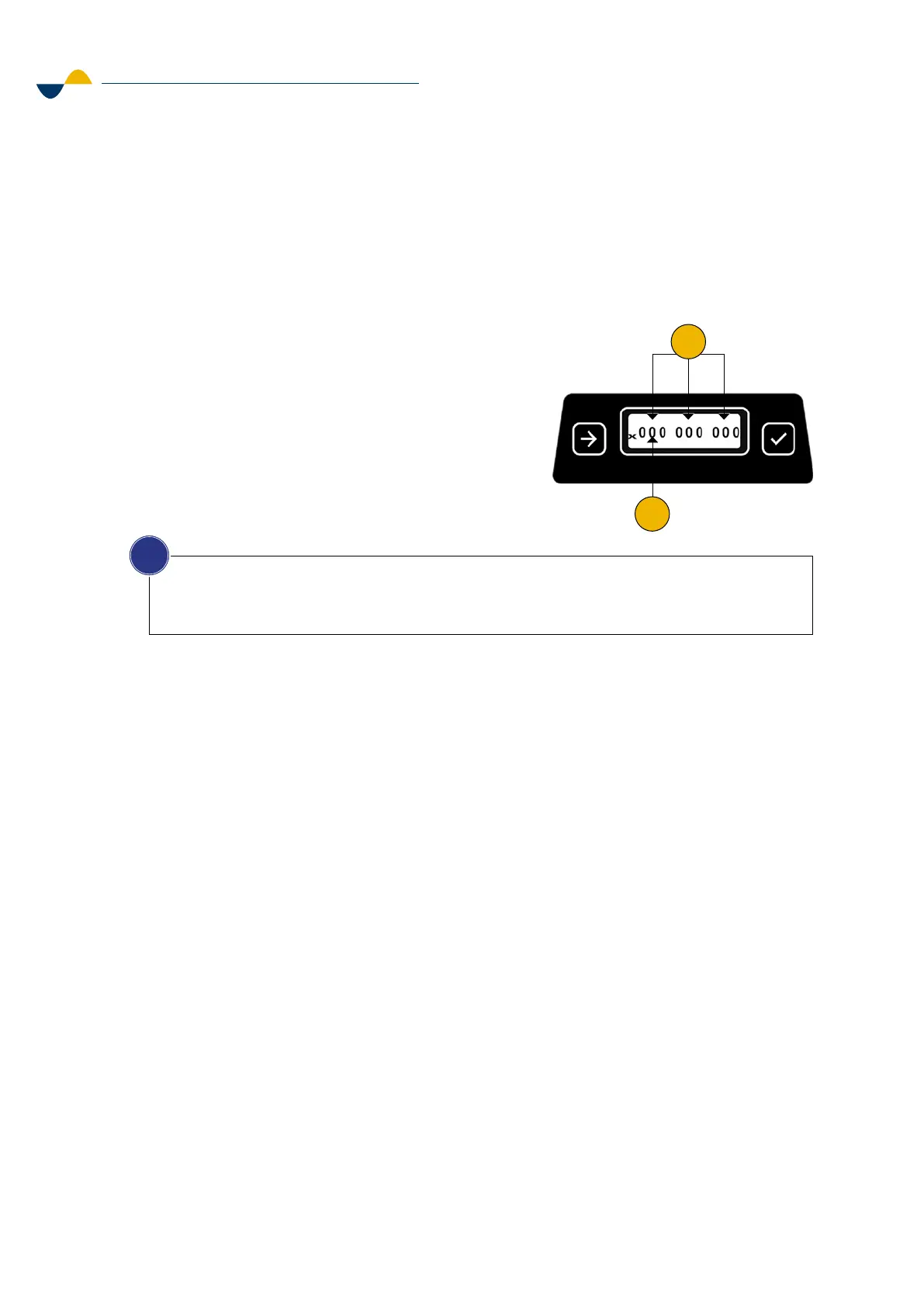

The numbers shown on the display refer to:
1. The status of each individual rotary encoder.
2. The position of the rotary encoder.
a. The minimum value is 000.
b. The maximum value is 255.
2
1
