Scanreco G6 - Transmitter Main Board

– 22 –
Scanreco – Service Manual G6 Radio Remote Control System
Connector Name Description
K901 DI 1-12 Digital input 1–12 (13 pole connector)
0-5 V, DI 2-16 also works for potentiometer.
Pin 1 GND
Pin 2 Digital input 1
Pin 13 Digital input 12
K902 DI 13-24 Digital input 13-24 (13 pole connector)
0-5 V, DI 2–16 also works for potentiometer.
Pin 1 GND
Pin 2 Digital input 13
Pin 13 Digital input 24
K903 DI 25-36 Digital input 25–36 (13 pole connector)
0-5 V
Pin 1 GND
Pin 2 Digital input 25
Pin 13 Digital input 36

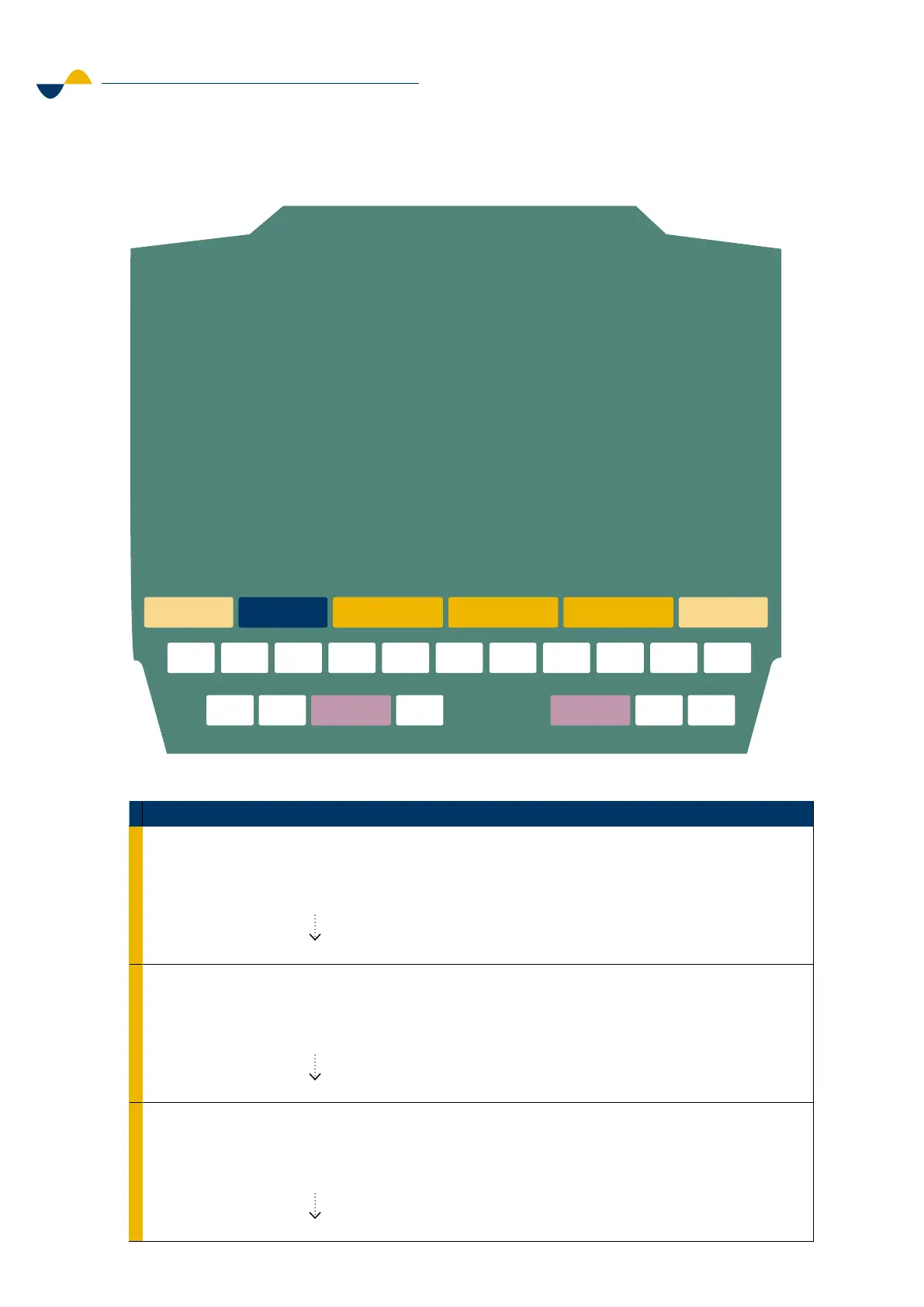

4.3. Transmitter Main Board
K820
SDI 1 – 4
1 K900 K901 1 K902
DI 13 – 24
1 K903
DI 25 – 36
K821
SDI 5 – 8
1
DI 1 – 12
K801
1
AI 1
K803
1
AI 3
K805
1
AI 5
K806
1
AI 6
K807
1
AI 7
K802
AI 2
K804
AI 4
K1000
LE D 1 – 8
K808
AI 8
K80 9
1
AI 9
1 1 1 1
Encoder
K810
1
AI 10
K811
1
AI 11
K812
1
AI 12
K1001
LE D 9 – 16
1
K814
1
AI 14
K816
1
AI 16
1
K813
1
K815
1
AI 13 AI 15
Connector side
