Scanreco G6 - Micro Transmitter Exploded View

– 63 –
Scanreco – Service Manual G6 Radio Remote Control System
No. Description Quantity
1 LED display 1
2 Panel lights 2
3 Information center 1
4 Vibrator motor 2
5 Tether connector 1
6 Gore-Tex valve 1
7 Protective frame 1
No. Description Quantity
8 Top section 1
9 Main board 1
10 Radio module with antenna holder 1
11 Gasket 1
12 Bottom section 1
13 STOP-button 1

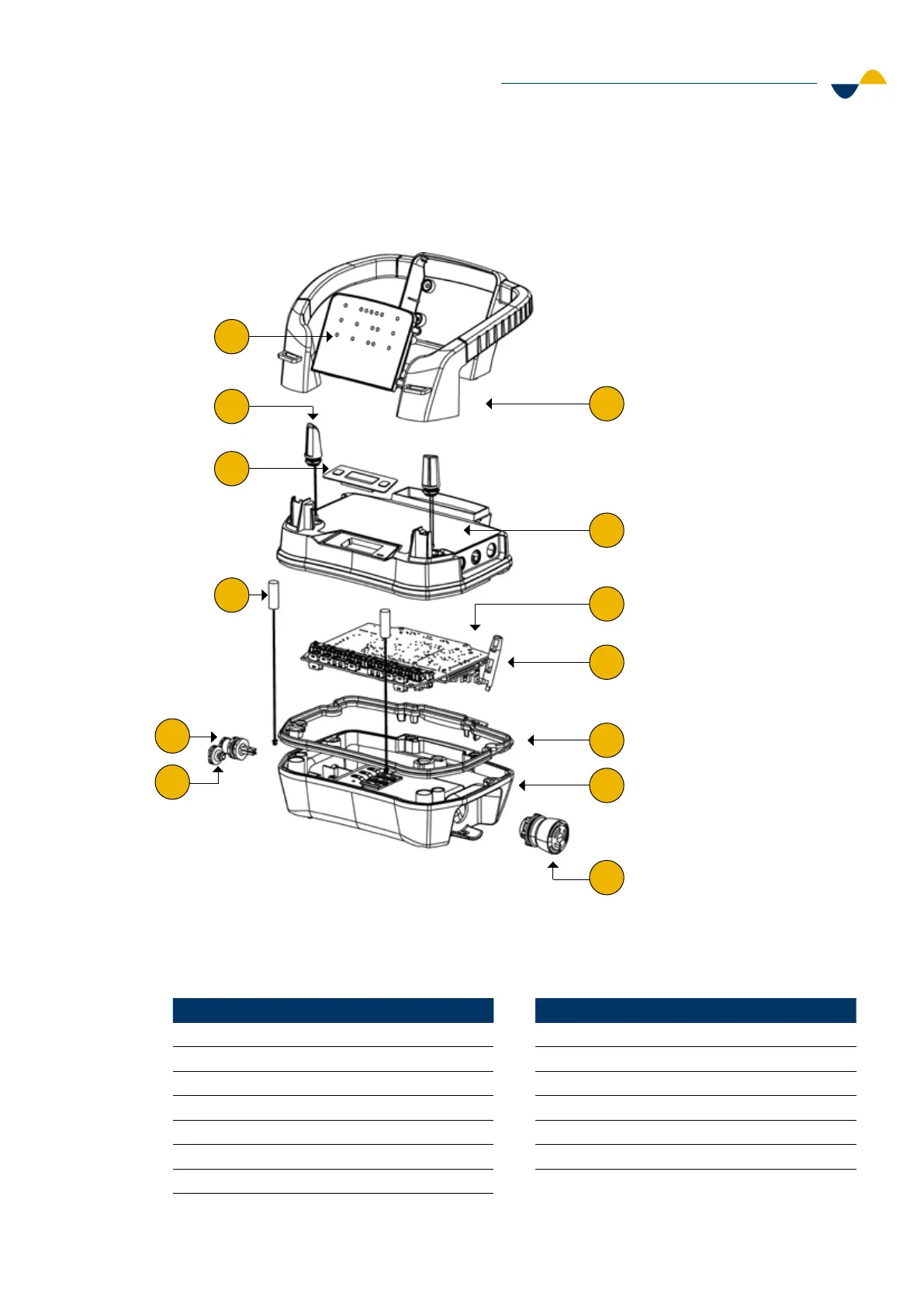

8.2.2. Micro Transmitter Exploded View
7
8
9
10
11
12
1
3
4
5
2
6
13
