7.3.3 Battery and Charger Status Indications
Symbols will be visible on the main screen of the Information center display that indicates the
status of the batteries' charge and the batteries' condition. If the transmitter has two battery
compartments, two status symbols will be visible, one for each battery.
This document is our property. It must not be copied and its contents
must not be imparted to third persons without our written permission.
Infringement of the above will be prosecuted.
Där ej annat anges
Where not specified
Ritad av
Dwn By
Godk.
Appr.
Skala
Scale
Ersätter
Replacing
Filnamn
File Name
Ritn.nr/ Dwg. No.
Dat.
Date
Volym
Volume
Vikt
Weight
Dat.
Date
-
-
-
-
ISO 2768-m
-
-
1:1
-
-
SCANRECO
RADIO REMOTE CONTROL SYSTEM
RoHS compliant

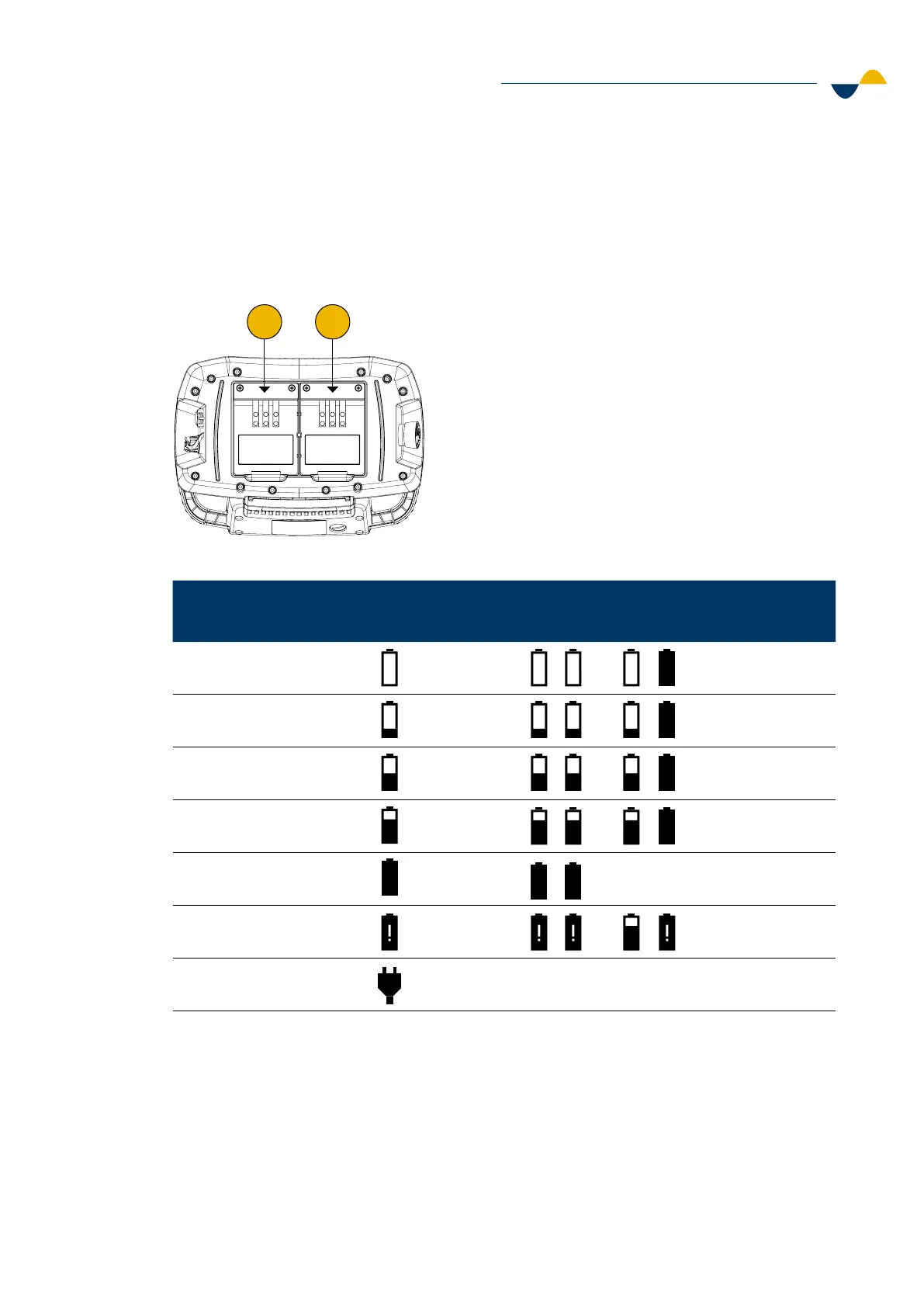

Status One Battery Two Batteries (Only for Mini transmitter)
Battery compartment 1 (left)
Battery compartment 2 (right)
Battery 0%
Battery 25%
Battery 50%
Battery 75%
Battery 100%
Battery FAULTY + Error code 3201
Cable Connection
or
or
or
or
or
+ Error codes 3201/3202
1 2
To Next Page
