8.2.3. Disassembly
To access and replace broken parts the bottom section of the transmitter must be removed.
A general step-by-step guide is presented below for best practices when disassembling the
transmitter. Follow the steps to avoid parts and product damage. Also, see chapter 8.1.2
Spare Parts to find out which parts can be replaced.
WARNING!
Before disassembly, switch o the Transmitter, remove the battery or batteries, and disconnect the
tether cable.
STEP 1: Switch o the transmitter by pressing the STOP button.
STEP 2: Remove the battery or batteries.
STEP 3 Disconnect the tether cable, if applicable.
Scanreco does not authorize any end customers or operators to disassemble the transmitter
housing. This must be done by authorized service technicians in an ESD-safe environment.
!

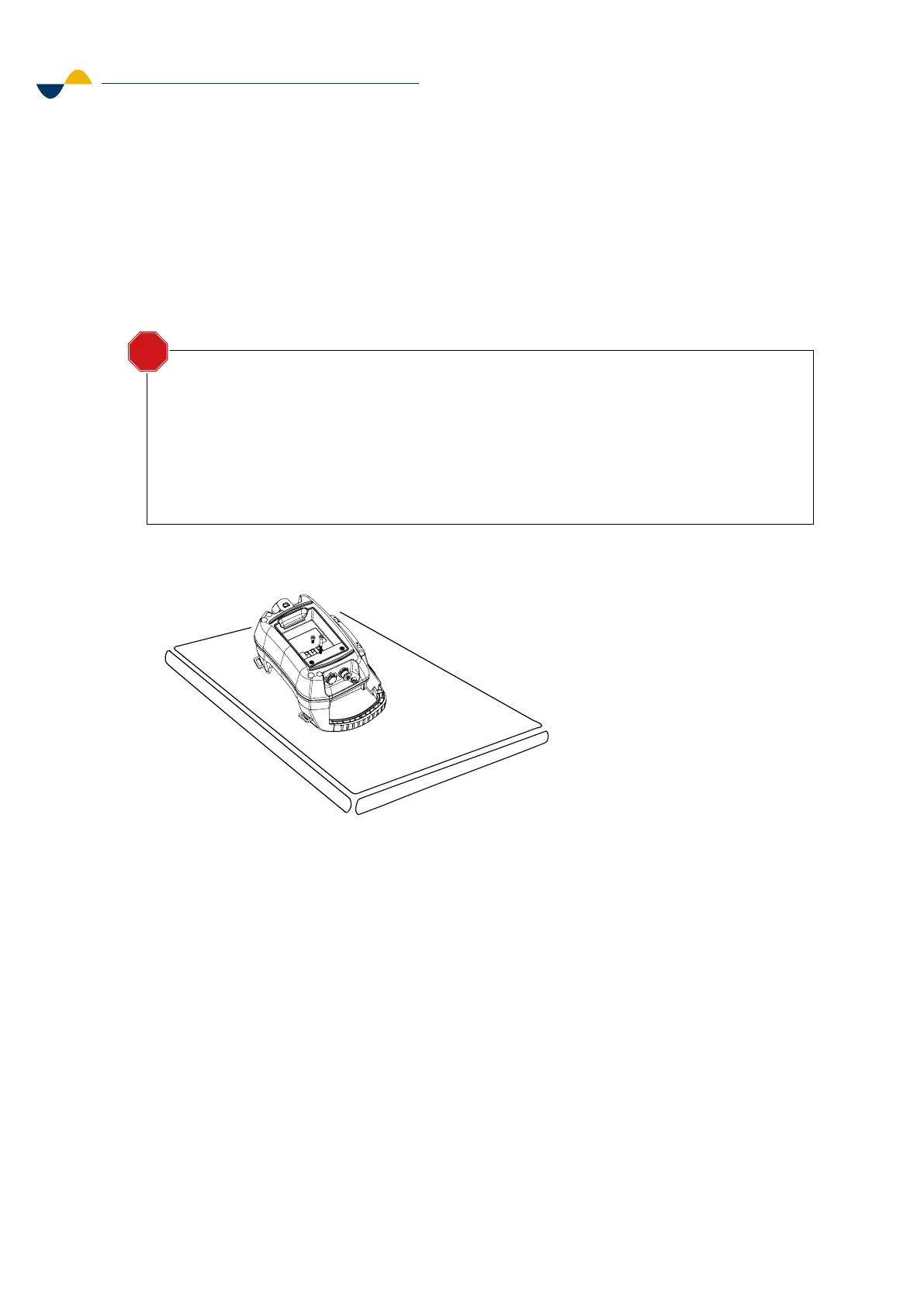

STEP 1: Place the transmitter upside down.
The protective frame is attached to the bottom section and will come loose during STEP 2
when the screws are removed. Before you start the disassembly process, make sure that the
transmitter is stable by placing it upside down.
