7.2.1. Analog Actuators
The analog actuators are joysticks, levers, and potentiometers. A set of numbers will show on
the display when the Analog actuator self-test is started.
NOTICE!
If the numbers shown on the display do not change and remain zero (0) when moving the actuator:
1. The analog actuator is broken.
2. The analog actuator has not been implemented or activated in the software setting.
i

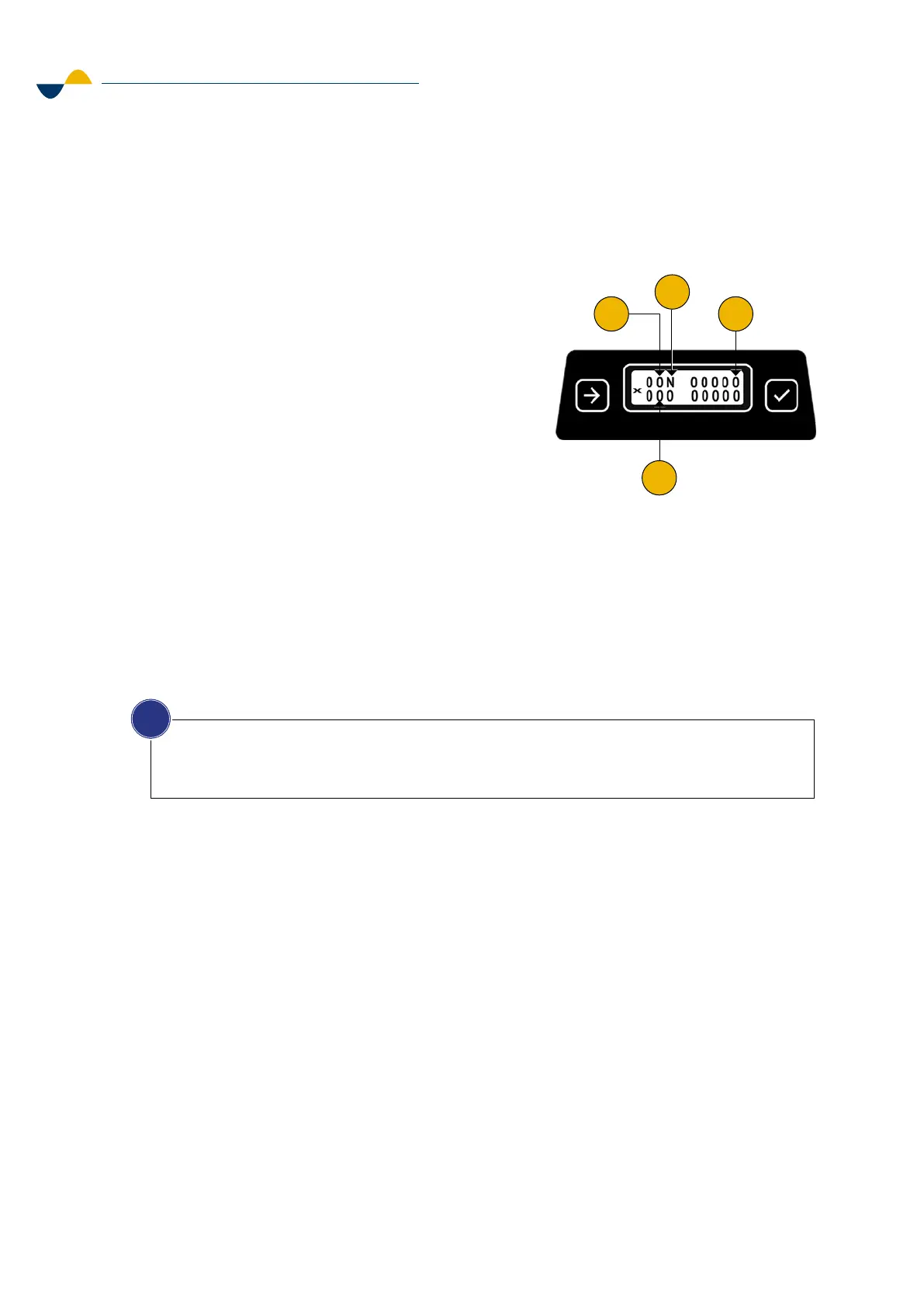

The numbers shown on the display refer to:
1. The analog actuator that is being moved. If multiple
actuators are moved at the same time the actuator
with the lowest number will be displayed.
2. The type of analog actuator that is being moved.
N = Non-safety classified actuator
S = Safety classified actuator.
3. The direction the analog actuator is being moved
in. When moved in an opposite direction the
colors of the numbers will be shown as inverted
(white text on a black background). Values will
range between 0-127.
4. These numbers are not detailed in this user
manual since they are only used for advanced
factory troubleshooting.
1
2
3
4
