7.3.6. Radio Signal
The current state of the transmitter's radio signal strength will be visible on the main screen of
the information center. The dierent radio signal states will be indicated by radio signal bars.
NOTICE!
The Radio Standby symbol indicates that something is preventing the transmitter from operating.
Make sure that joysticks, levers, potentiometers, and switches are in zero-position during startup of
the transmitter and that the STOP button is not activated. If this does not solve the issue, see chapter
7 Troubleshooting.
i

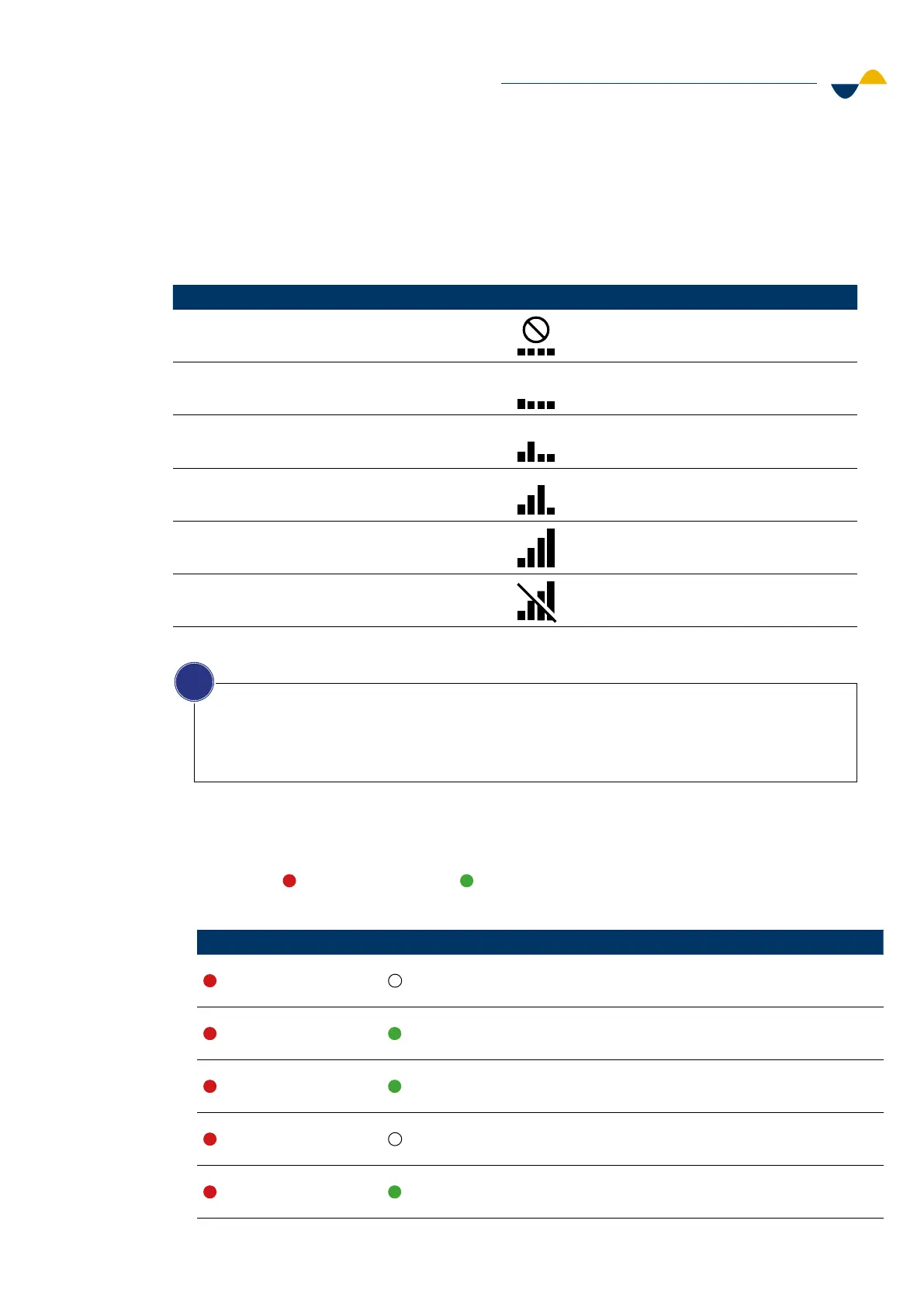

Radio Signal States Symbol
No radio link
Radio signal strength 1-25%
Radio signal strength 26-50%
Radio signal strength 51-75%
Radio signal strength 76-100%
Radio Standby
7.3.7. Charger Status Indications
There are two LEDs on the battery charger that indicates the status of the batteries’ charge:
Power LED (
Red) and Status LED ( Green)
Power LED Status LED Indicating
Red
O
Charger powered. No battery is present.
Red Green
Charger powered. Battery fully charged.
Red Green flashing
Charger powered. Battery charging.
Red flashing
O
Error on battery or charger, or temperature out of
charging range.
Red flashing Green flashing
Only for NiMH: Battery is not charging because of
too high or low temperature.
