Installation and commissioning
BASCSOUL_EN
V02 | 10.2017
26
Side cooling unit
The machine is equipped with a permanent cable connection at the factory. On the building side, the machine is
connected to the power socket by means of a country-specific plug or an upstream main switch if it is a fixed
connection.
► Remove rear sheet (without tools).
► Insert the power plug into the building power socket or switch on the upstream main switch.

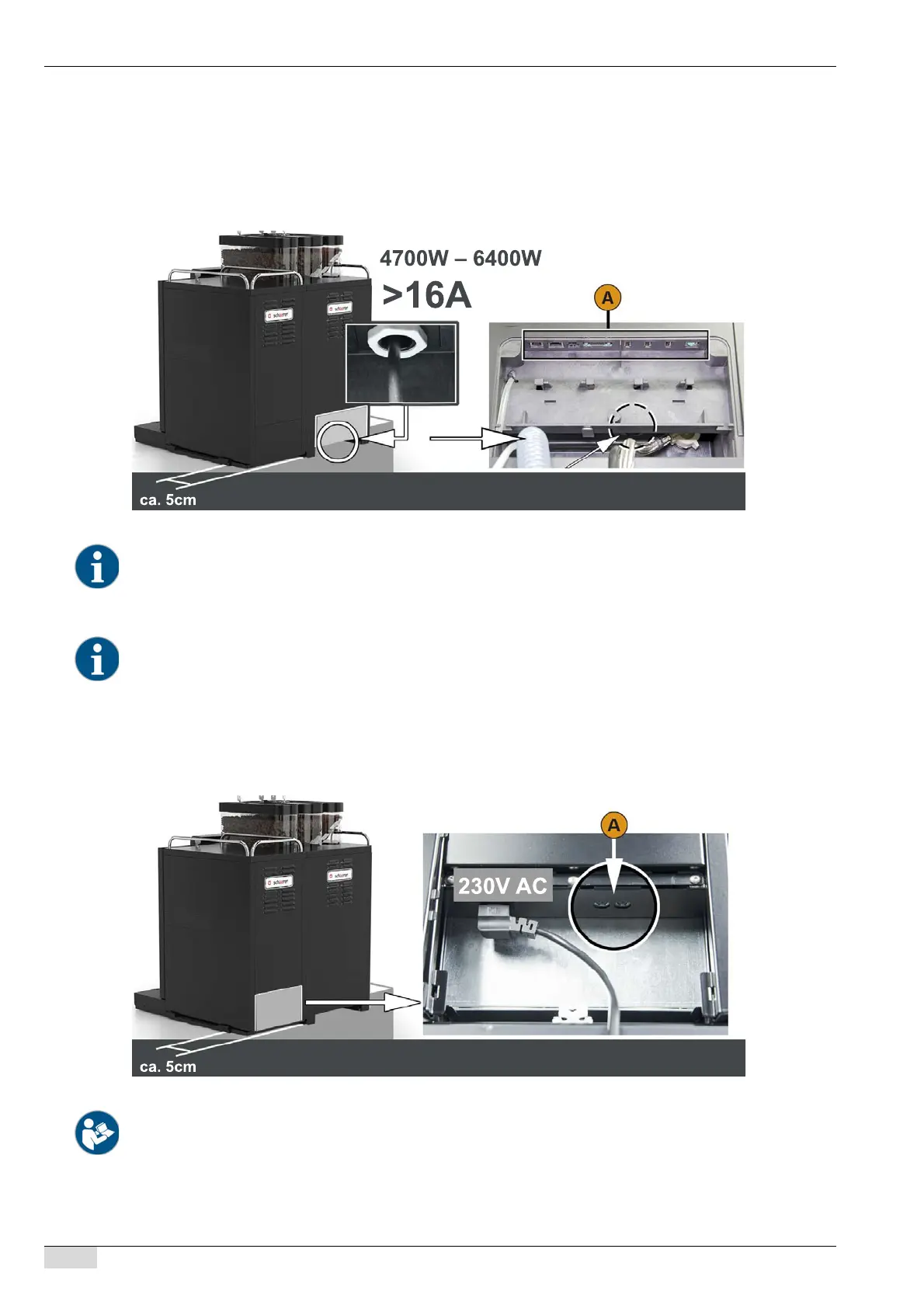

Machine interfaces [A].
When the machine is switched on for the first time, display-guided adjustment of the machine configuration follows
automatically.
For better access, position the back of the machine about 5 cm over the support plate.
► Remove rear sheet (without tools).
► Connect to the mains with an apparatus cable (plug/coupling).
► Establish connection [A] from the machine to the side cooling unit with the CAN Mini-DIN 6-pole control cable
1m.
A detailed description of the side cooling unit can be found in the supplied installation, operating and maintenance
handbook of the side cooling unit.
