BASCSOUL_EN
V02 | 10.2017
49
www.schaerer.com
Operation

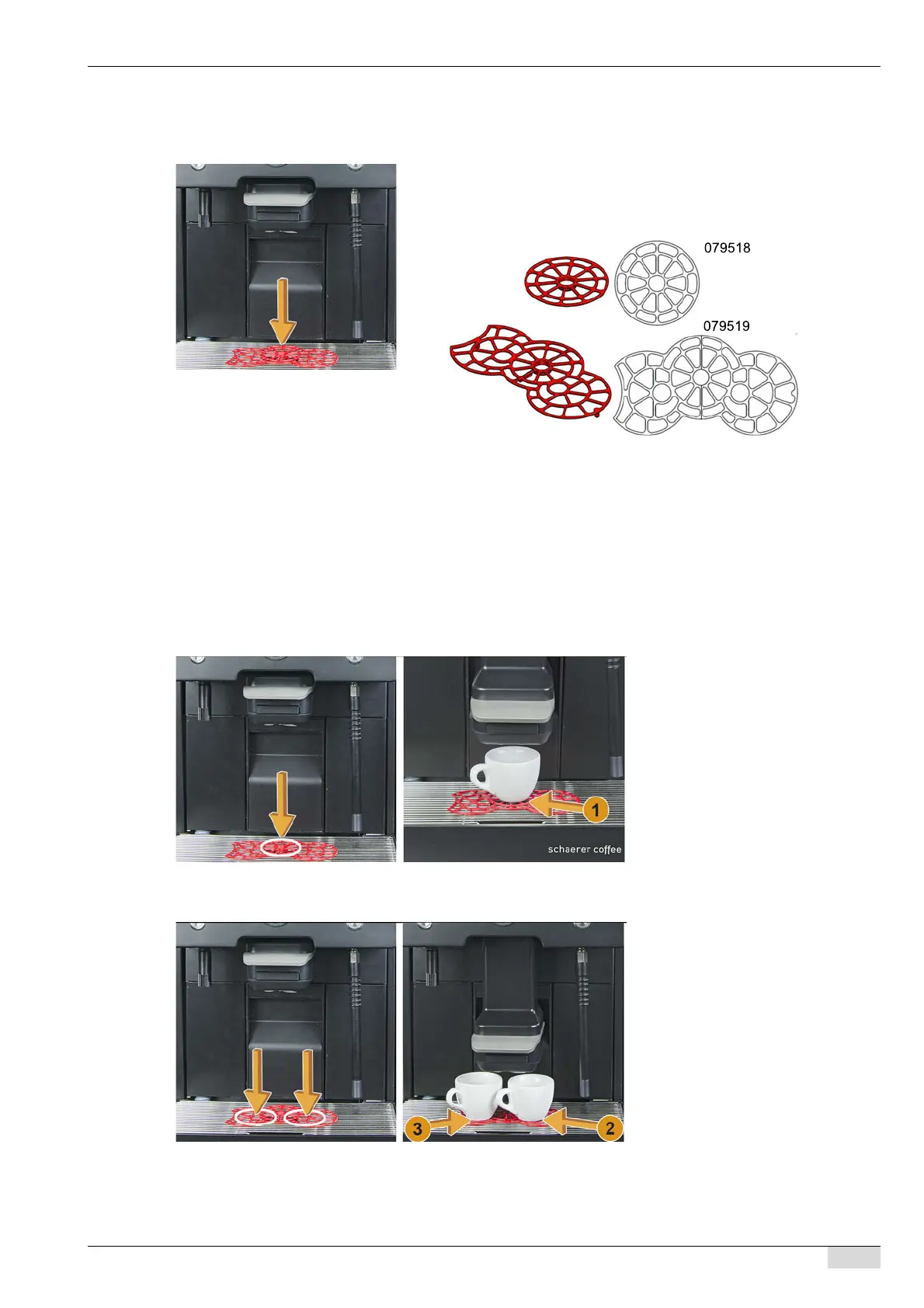

5.7.2 Cup positioning aid
Positioning aid in cup platform
Individual beverages
Double beverage
The following cup positioning aids can be used in the cup platform:
• Single positioning aid for dispensing single beverages
• Double positioning aid for dispensing double beverages
The positioning aid can be clicked into the cup platform.
► Click positioning aid into the cup platform.
The (centre) positioning aid for individual beverages is aligned to
the centre of the beverage outlet.
The (centre) positioning aid for individual beverages is aligned to
the rear of the machine.
The recess in the positioning aid for external hot water dispensing
is located on the left.
► Position a cup or glass at position
[1].
► Position cups or glasses at posi-
tions [2] and [3].
