Cleaning
6.9.4 Defrosting the cooling unit

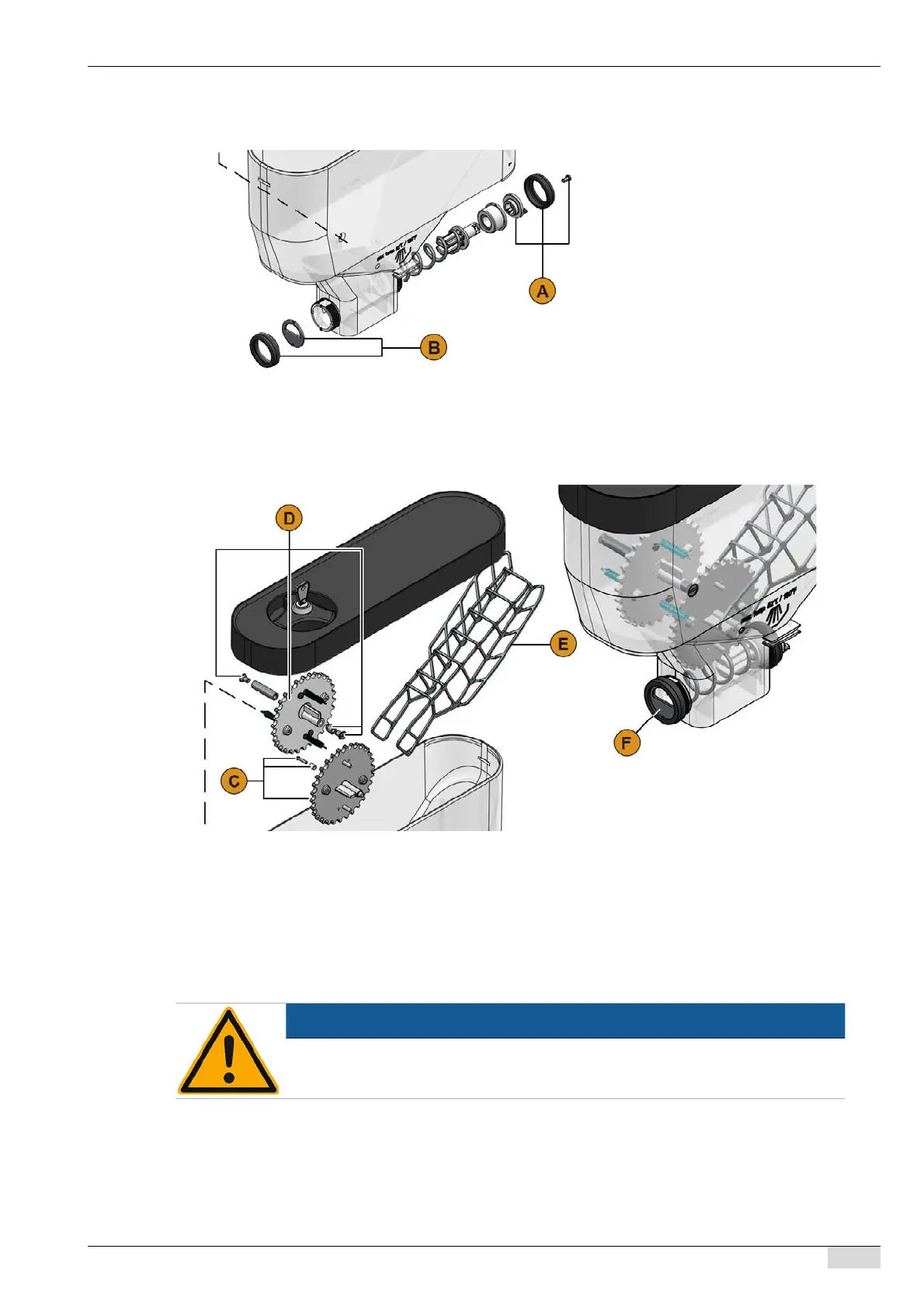

► Disassemble the drive-side dosing device [A] by loosening the PH1 cross slot screw and the union nut.
► Disassemble the dispensing-side dosing device [B] by loosening the union nut.
Option: Disassembly of powder scoop and toothed wheels
► If necessary, disassemble the lower toothed wheel by removing the screw [C] (PH0) and axle guidance.
► Disassemble the upper toothed wheel by removing the two screws [D] (size 2) and axle guidance.
► Release powder scoop [E] from toothed wheel [C].
► Thoroughly clean the powder container and individual parts under running water.
► Allow all individual parts to dry fully before assembly.
► Reassemble the powder container in reverse order and insert it into the machine.
► Make sure the dosing scoop [F] is correctly aligned.
► Relock the central locking mechanism.
NOTE
The surface of the cooling unit’s interior may get damaged.
Never remove the ice layer with pointed or sharp objects; always let it defrost.
