10 Operation
60 / 86 EN-US · 30.30.00.00424 · 07 · 10/23

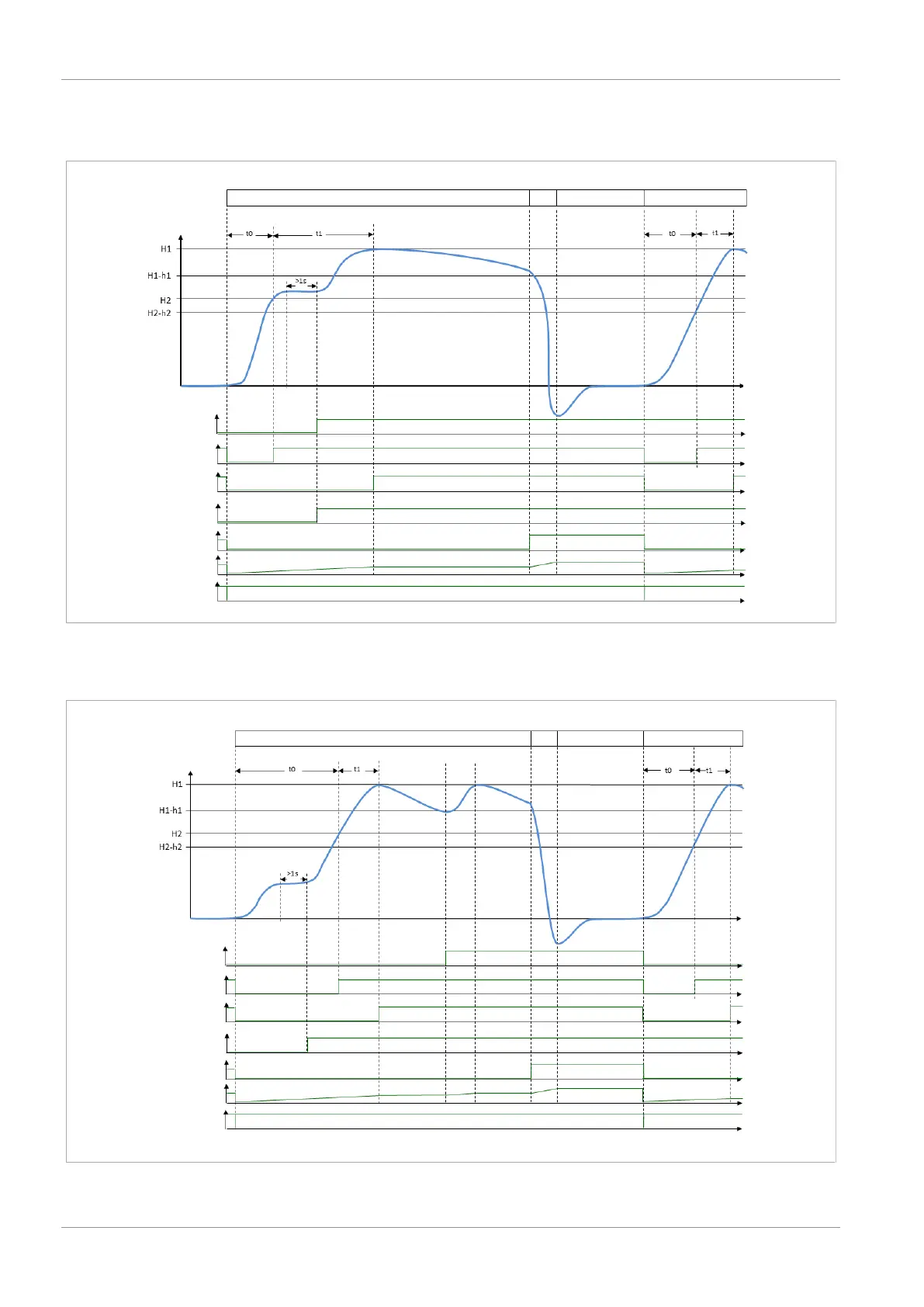

Handling cycle with dynamic pressure measurement and excessive leakage:
Typical suction cycle
Vacuum
SUCTION BLOW
OFF
NEUTRAL SUCTION
t
Condition monitoring
Evacuation time t0
Evacuation time t1
Dynamic pressure
Leakage
Air consumption
El. energy consumption
Handling cycle with leakage > L and readjustment:
Typical suction cycle
Vacuum
SUCTION BLOW
OFF
NEUTRAL SUCTION
t
Condition monitoring
Evacuation time t0
Evacuation time t1
Dynamic pressure
Leakage
Air consumption
El. energy consumption
