10 Operation
EN-US · 30.30.00.00424 · 07 · 10/23 61 / 86

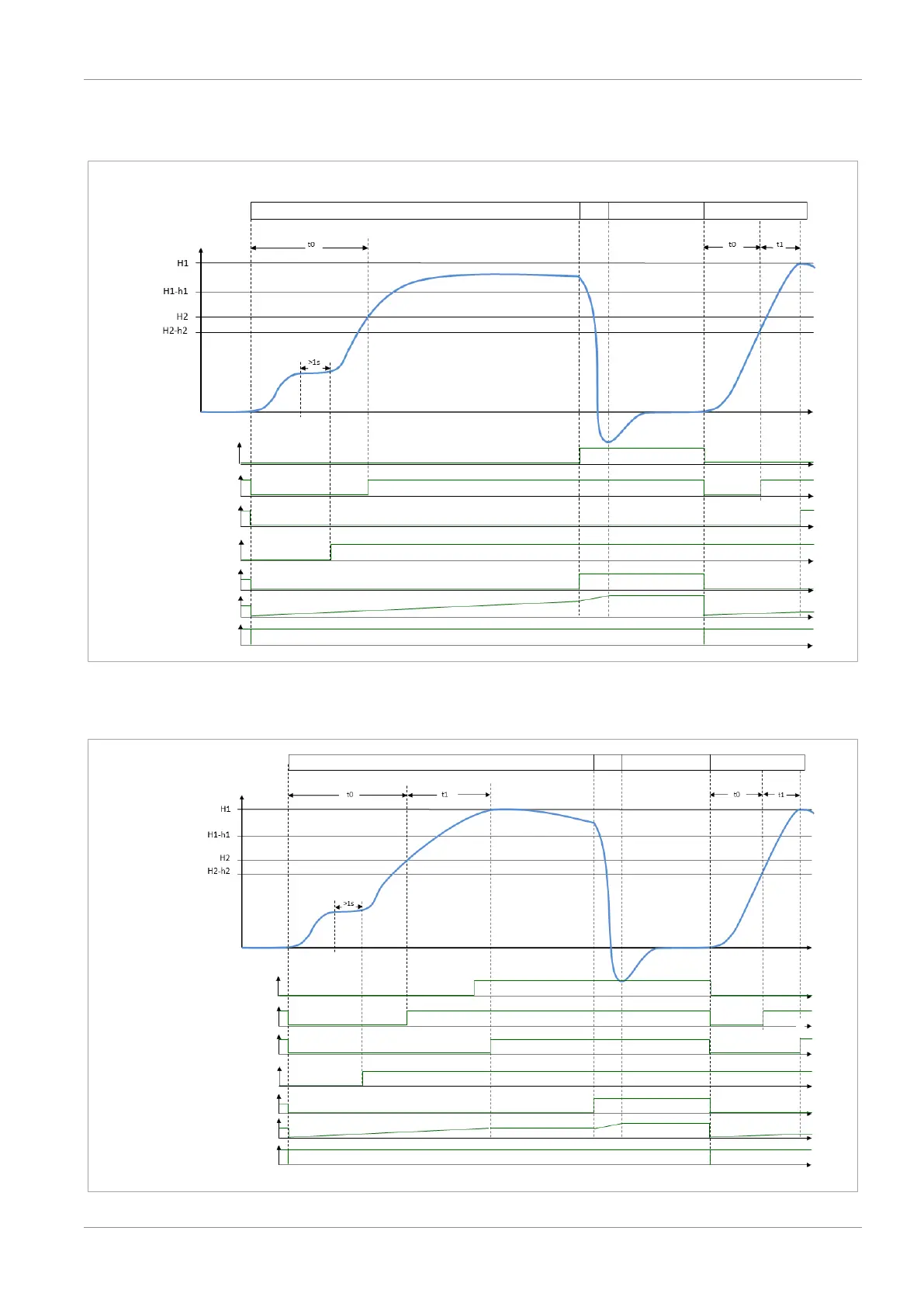

Handling cycle with very high leakage (H1 is not reached):
Typical suction cycle
El. energy consumption
Air consumption
Leakage
Dynamic pressure
Evacuation time t1
Evacuation time t0
Condition monitoring
t
SUCTIONNEUTRALBLOW
OFF
SUCTION
Vacuum
Handling cycle with excessive evacuation time t1:
Typical suction cycle
Vacuum
Condition monitoring
Evacuation time t0
Evacuation time t1
Dynamic pressure
Leakage
Air consumption
El. energy consumption
SUCTION BLOW
OFF
NEUTRAL SUCTION
t
