6-14 Installation Date Code 20011026
SEL-321/321-1 Instruction Manual

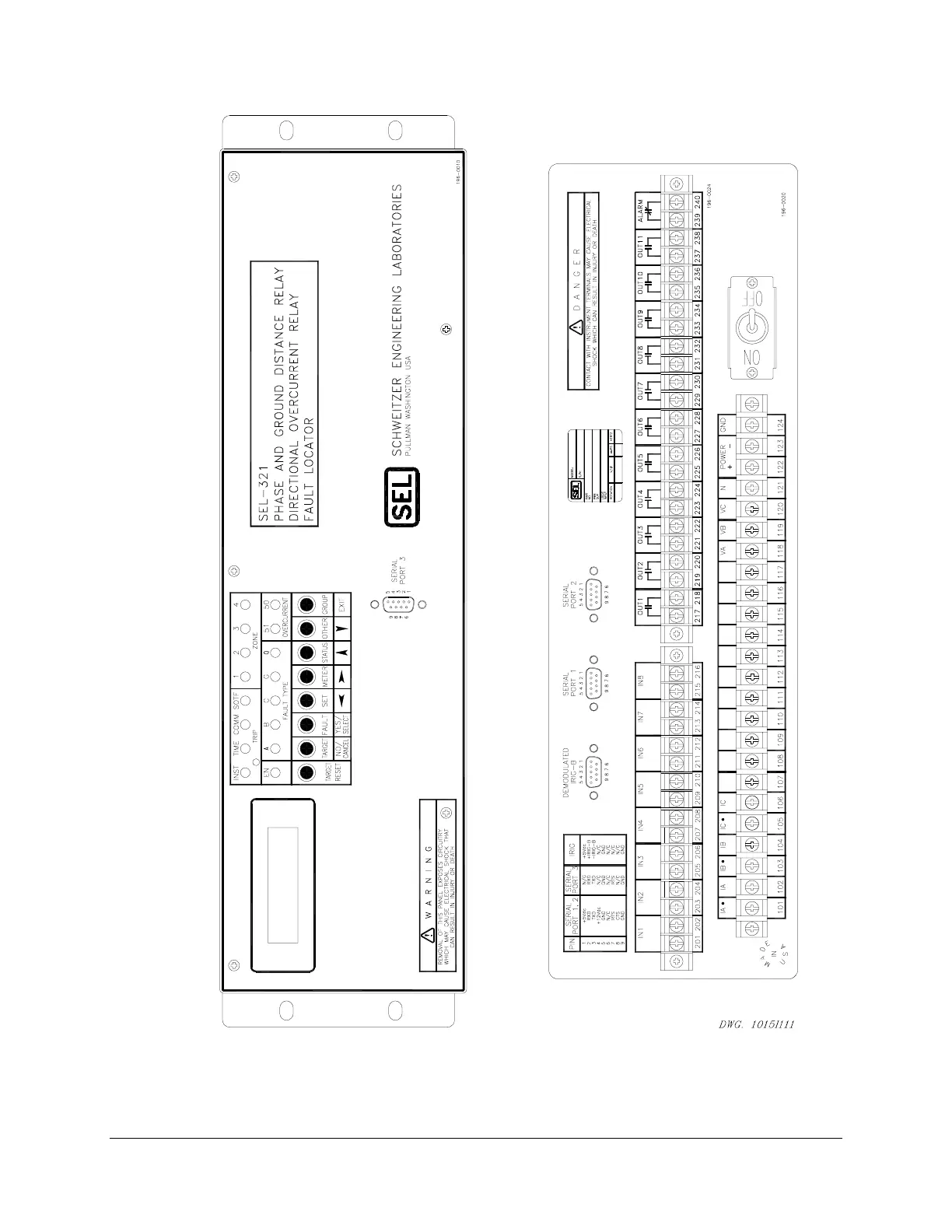

Figure 6.3: SEL-321 Relay Horizontal Front and Rear Panel Drawings
(One I/O Board Conventional Terminal Block Version; 12 isolated outputs
shown – other options are available)
