Date Code 20011026 Installation 6-15
SEL-321/321-1 Instruction Manual

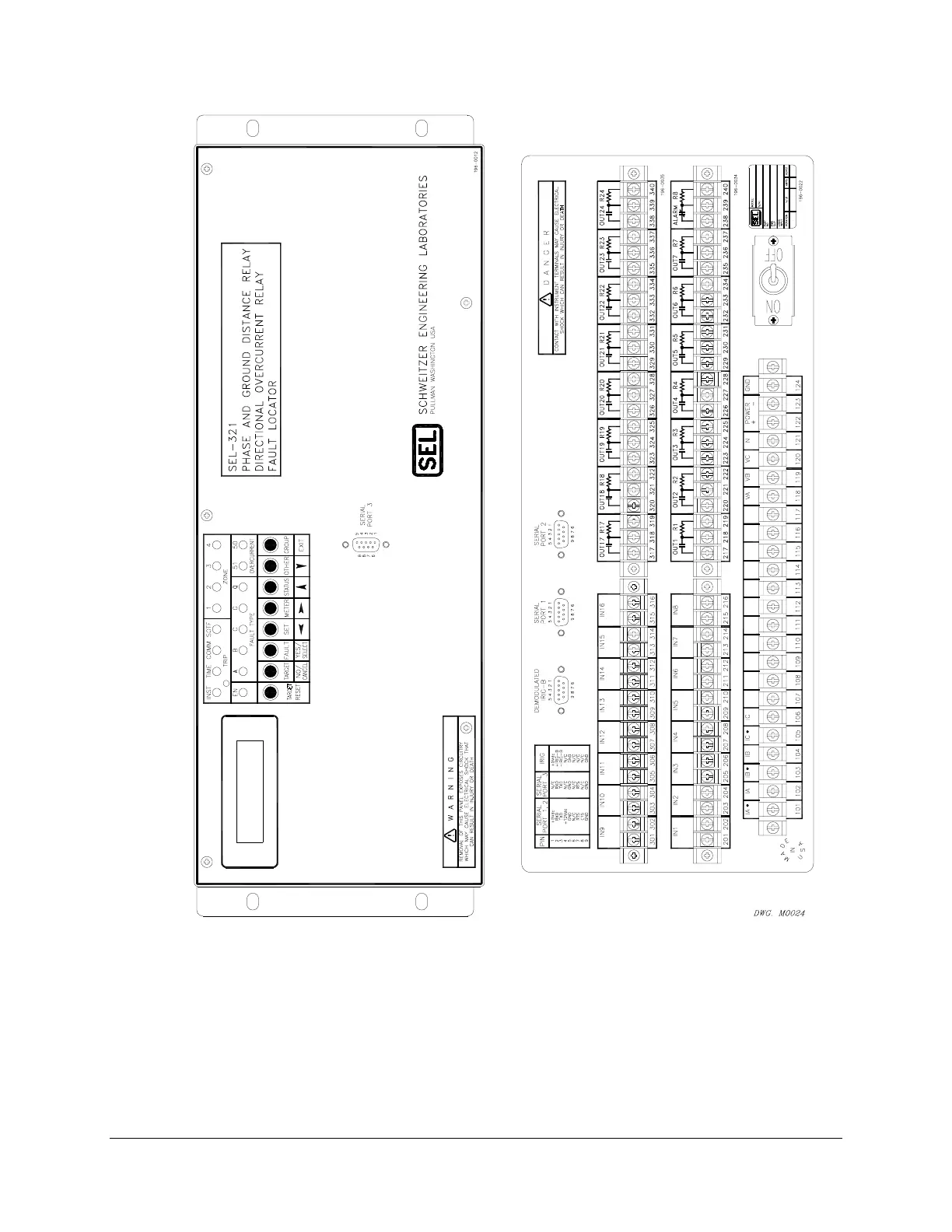

Figure 6.4: SEL-321 Relay Horizontal Front and Rear Panel Drawings
(Two I/O Board Conventional Terminal Block Version; 8 fast high-current
interrupting isolated outputs per board shown – other options are available)
