6-20 Installation Date Code 20011026
SEL-321/321-1 Instruction Manual

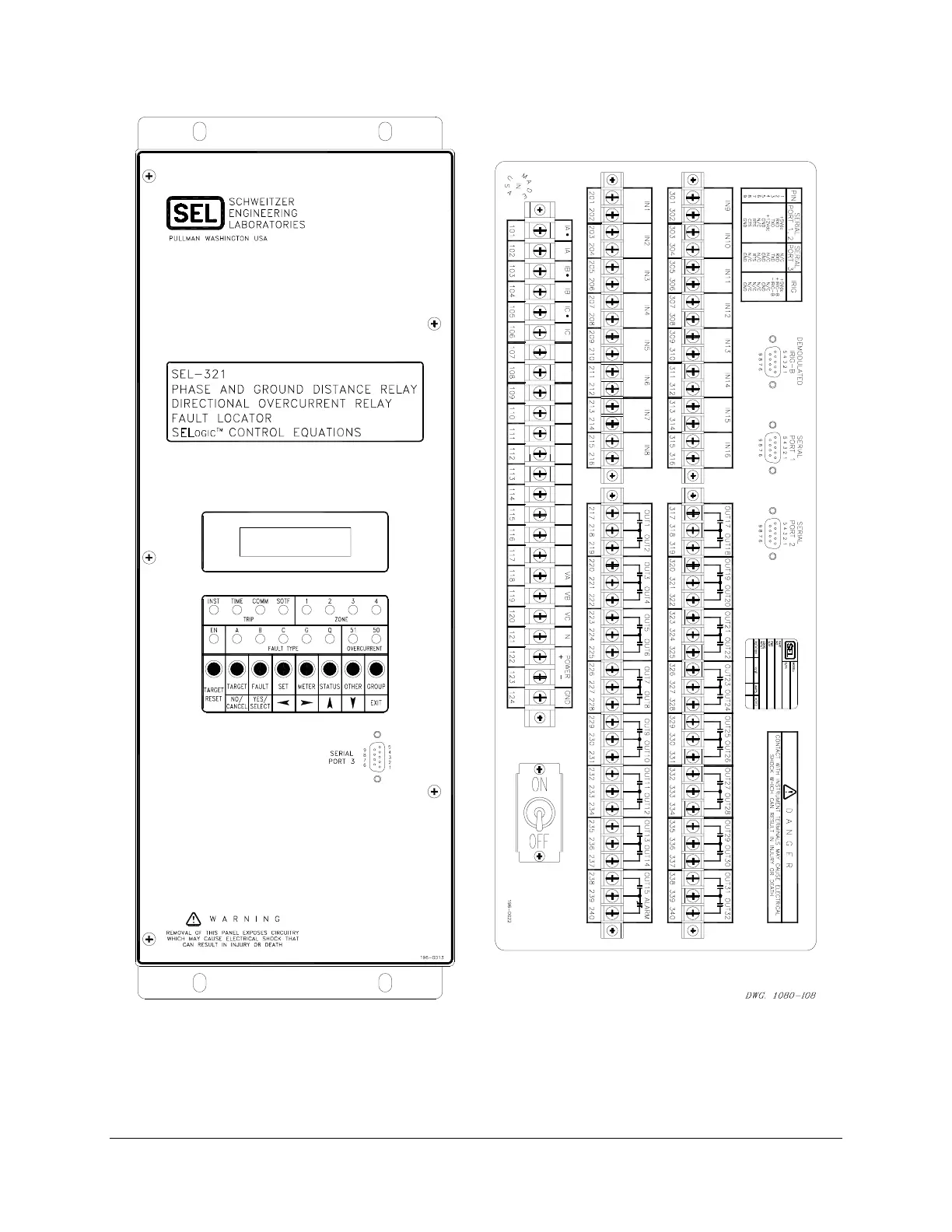

Figure 6.9: SEL-321 Relay Vertical Front and Rear Panel Drawings
(Two I/O Board Conventional Terminal Block Version; 16 outputs with
shared return terminals per board shown – other options are available)
