Date Code 20011026 Installation 6-21
SEL-321/321-1 Instruction Manual

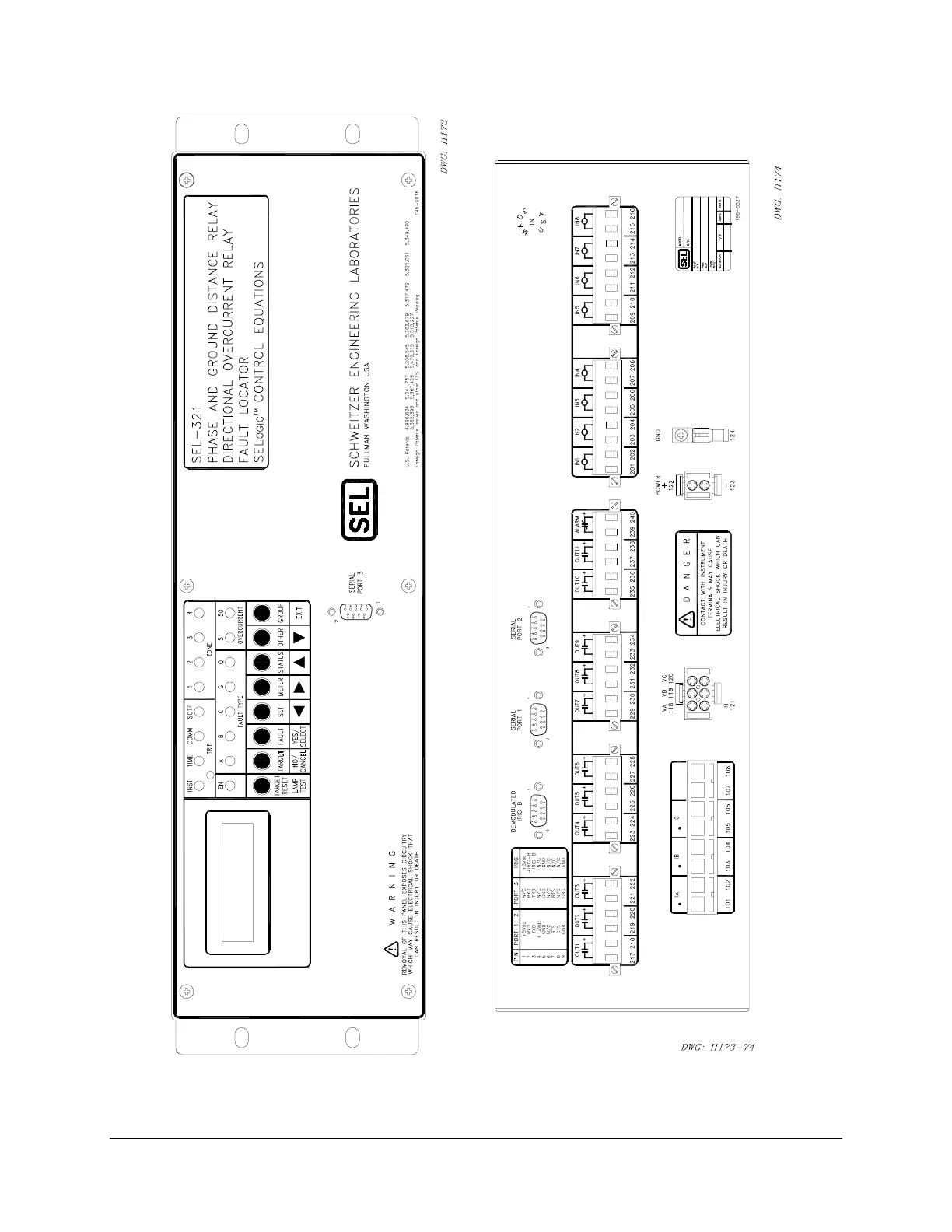

Figure 6.10: SEL-321 Relay Horizontal Front and Rear Panel Drawings
(One I/O Board Plug-In Connector Version; 12 isolated high-current
interrupting outputs shown – other options are available)
