Poten
tiomete
r
•

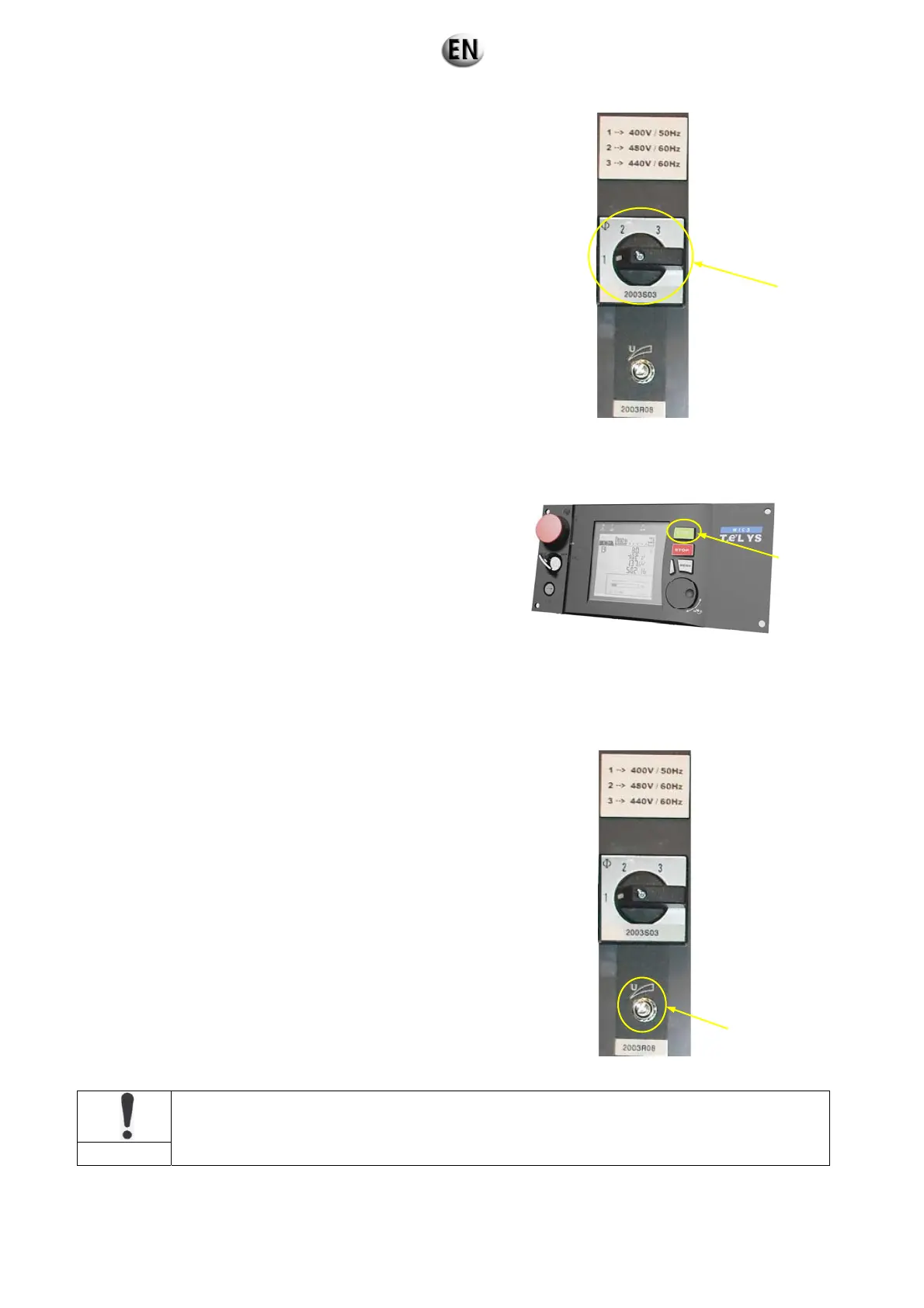

Select the desired confi
gur
ation using the configur
ation
option selector located next to the T
ELYS 2 control
unit.
•
Start up the generating set b
y pressing the "START"
button.
•
Adjust the voltage after starti
ng up the generating set
using the 2003R08 potentiom
eter.
Warning: when switching to 60Hz, do not us
e sockets if fitted to the gener
ating set.
IMPORTANT
Configuration
selector
90/242
