© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B
SCREWS IN ALL
MOUNT HOLES
CM20064

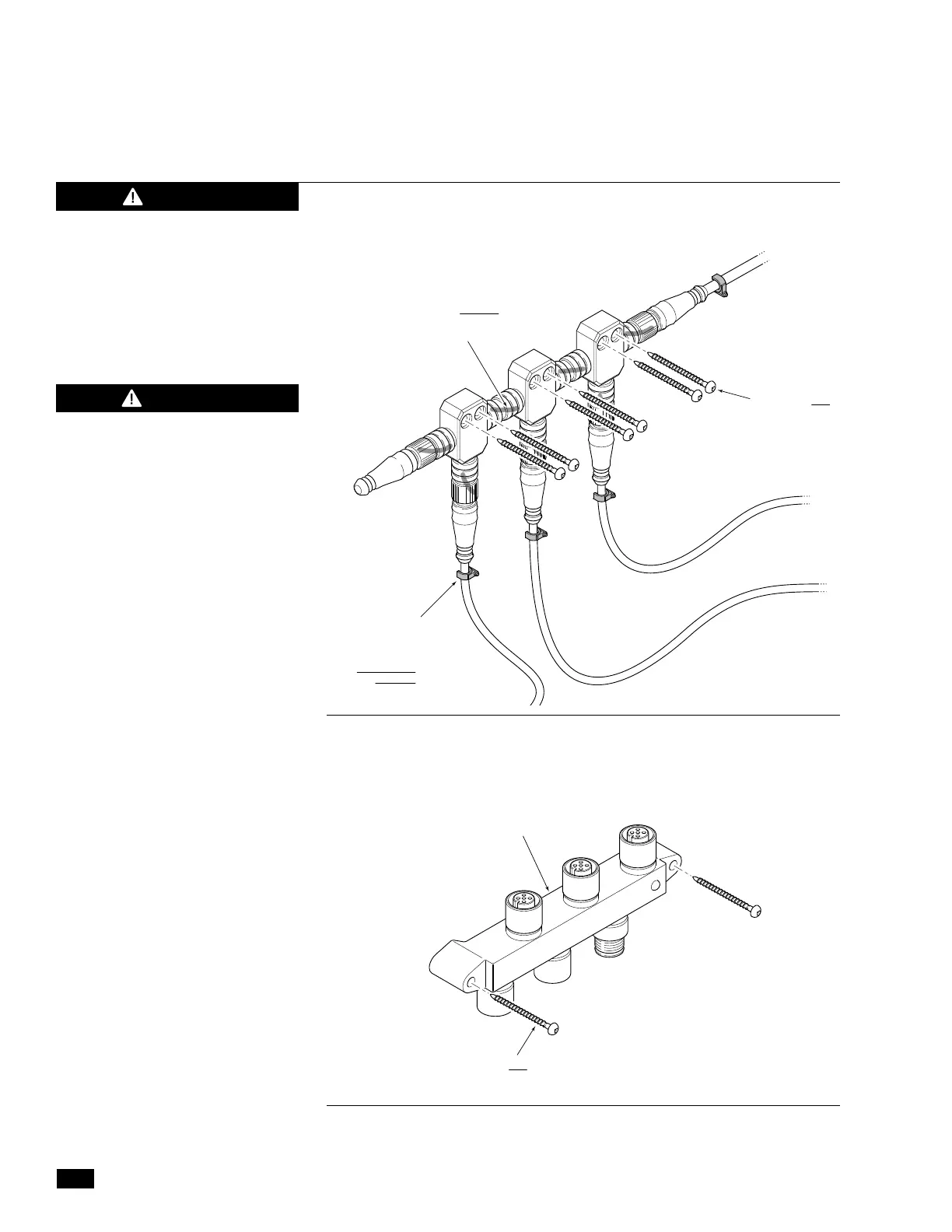

Figure 3-3. Correct CAN2 Tee Installation Example.
Figure 3-4. Alternative CAN2 6-port hub connection.
FAILURE TO SECURE HARNESS MAY RESULT IN HARNESS WEAR,
CAUSING LOSS OF STEERING CONTROL, PROPERTY DAMAGE,
PERSONAL INJURY AND/OR DEATH .
WARNING
SCREWS IN ALL
MOUNT HOLES
EACH CABLE
APPROPRIATELY
SECURED AND
STRAIN RELIEVED
CLOSE TO TEES
NO PULLING
ON TEES
ALL NUTS DOUBLE
CHECKED FOR TIGHTNESS
AND MARKED
NOTE: TEES MAY NOT LOOK
EXACTLY AS SHOWN
Do not connect anything other
than SeaStar Optimus compo-
nents, or SeaStar approved
autopilots, to the CAN2 network.
CAUTION
