Seastar Solutions Optimus 360 Installation Manual

6-3
© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B

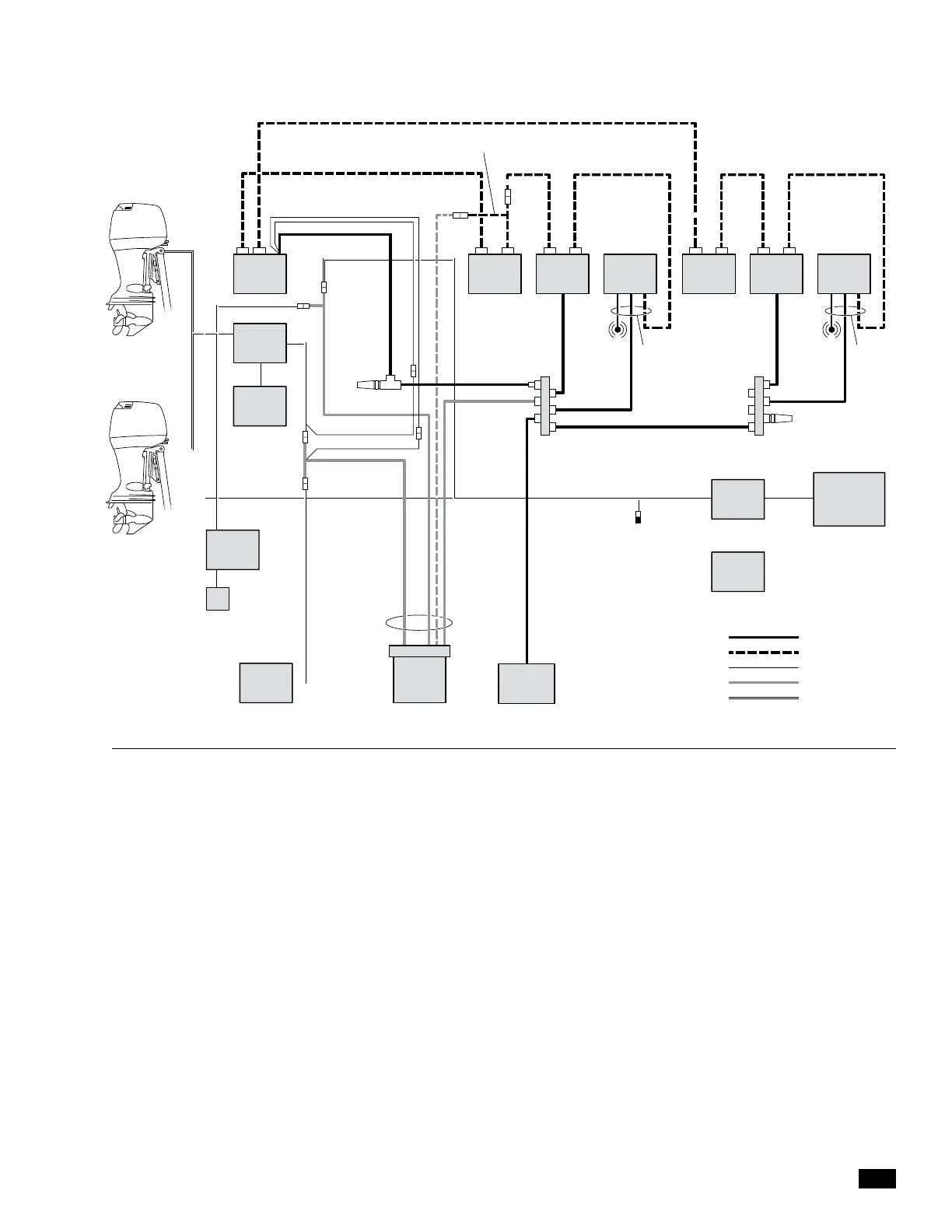

Figure 6-3. Suzuki EST dual station, twin engine.
GRAY x 1
COLOR
CANtrak 1
JOYSTICK
1
HELM
1
CERTIFIED
AUTOPILOT
(Optional)
PCM
PORT
ENGINE
STBD
ENGINE
OPTIMUS CAN2
OPTIMUS CAN1
IGNITION
CM20018
EXISTING SUZUKI
HARNESS
EST
GATEWAY
EG1810
CM204XX
CM204XX
CM204XX
CM21702
CM21504
CM20064
CM20018
CM20304
CM100XX
CM100XX
PURPLE x 2
PURPLE x 1
TERMINATOR
CM10051
TEE
CM10060
SUZUKI DBW
TERMINATOR
BUZZER
SUZUKI DIAGNOSTIC
SOFTWARE PLUG IN
POINT
MAIN
BCM
CONTROL
HEAD 1
SUB
BCM
CONTROL
HEAD 2
SUZUKI
SWITCH
PANEL
SUZUKI
SWITCH
PANEL
IGNITION
SWITCH
COLOR
CANtrak 2
JOYSTICK
2
HELM
2
CM204XX
CM21504
CM20064
CM100XX
BUZZER
TERMINATOR
CM10052
Suzuki BCM CAN Network Connection
Locate the Suzuki CAN connection point on the Suzuki Main BCM
harness behind the main station dash. Look for a twisted pair of
wires (white and black) with a two-pin connector.
Single station boats – the connector will have a male network
terminator plug installed in it. Remove the terminator plug and
insert the CM20018 harness plug labeled ‘1st Station’. Install the
terminator plug in the CM20018 harness receptacle labeled ‘2nd
Station’. See figure 6-4.
Dual station boats – The connector will be connected to the Suzuki
Sub BCM harness. Break the connection and connect the two
halves to the CM20018 harness plugs. The Sub BCM harness will
connect to the plug labeled '2nd Station' and the Main BCM
harness to the plug labeled '1st Station.' See figure 6-4.
6.2.1
