6-1
© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B
6.0 SUZUKI
6.1 Gateway Installation
The EST gateway is an electronic interface device that connects the
Optimus control system to the OEM shift and throttle control system. It
passes shift and throttle commands from the joystick to the OEM EST
system, and monitors station selection, network status and ignition state.
Location
One gateway (EG1810) is required at the main control station. It should
be installed underneath the dash and in close proximity to the control
head. Section 6.2 details the required connections.
Installation
Install the gateway with the strain relief plate and screws as shown in
figure 6-1. The preferred orientation is vertical with connections
facing
down, but it may also be installed horizontally. Avoid mounting the
gateway with the connections facing upwards.

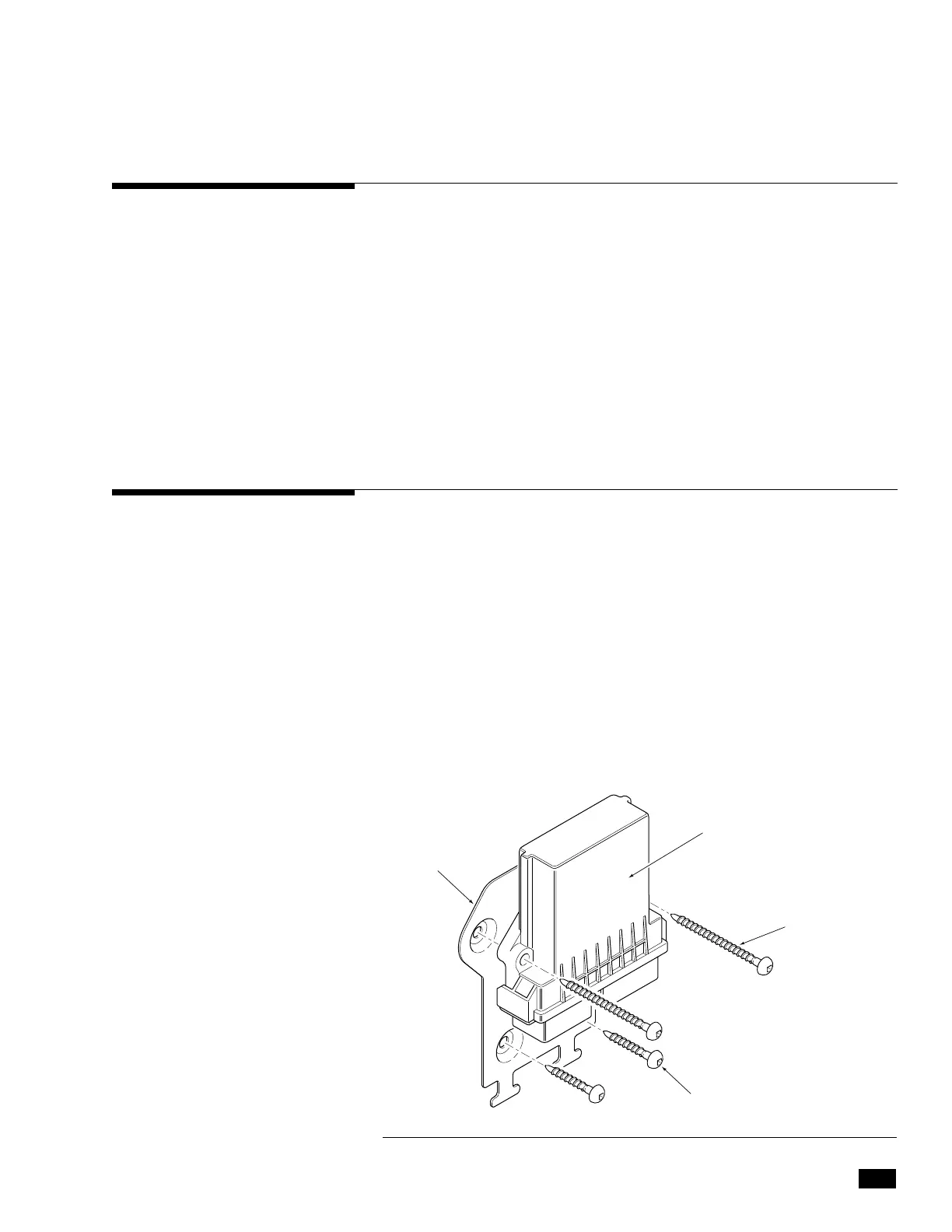

Figure 6-1 Gateway with strain relief plate.
EST GATEWAY
STRAIN RELIEF
PLATE
2 X SHORT SCREWS
(NOT SUPPLIED)
2 X LONG
SCREWS
(NOT SUPPLIED)
To complete the system installation for a Suzuki SPC engine you need to:
1. Install the Suzuki control head (refer to installation instructions
provided by Suzuki)
2. Install the Optimus EST gateway (section 6.1)
3. Complete the CAN network connections (section 6.2)
4. Configure the gateway (section 6.3)
5. Calibrate the system using the Suzuki Diagnostic Software tool
(section 6.4)
Once you’ve completed these steps you can move on to the sea trial
(Book 50) and then to the joystick setup in section 9.
