Seastar Solutions Optimus 360 Installation Manual

A-1
© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B
APPENDIX A – MOUNTING
TEMPLATES
A.1 Joystick

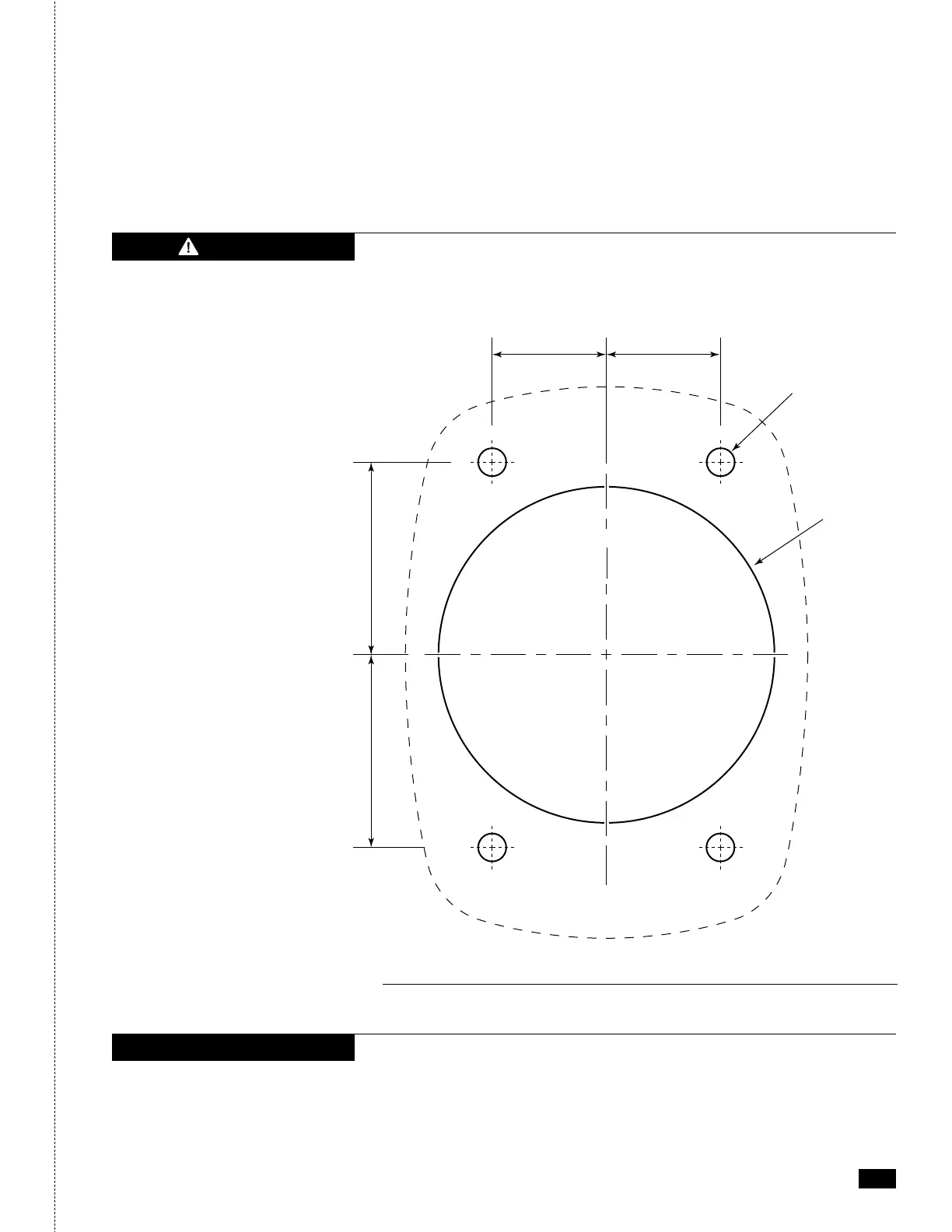

Figure A-1. Joystick Mounting Template.
1.72"
(43.7 mm)
1.72"
(43.7 mm)
3" (76 mm)
DIA.
4 x 1/4"
(6.35 mm)
DIA.
1.02"
(26 mm)
1.02"
(26 mm)
The helm may effect a ship’s or the autopilot’s compass. For less
than one degree of effect keep the EPS helm and the compass a
minimum of 8 inches (20.5 cm) apart.
CAUTION
✁
If you must photocopy this mounting template for use, check ALL
measurements using a measuring device prior to using as a template.
NOTICE
