Seastar Solutions Optimus 360 Installation Manual

A-3
© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B
A.2 Control Head (Yanmar/Optimus)

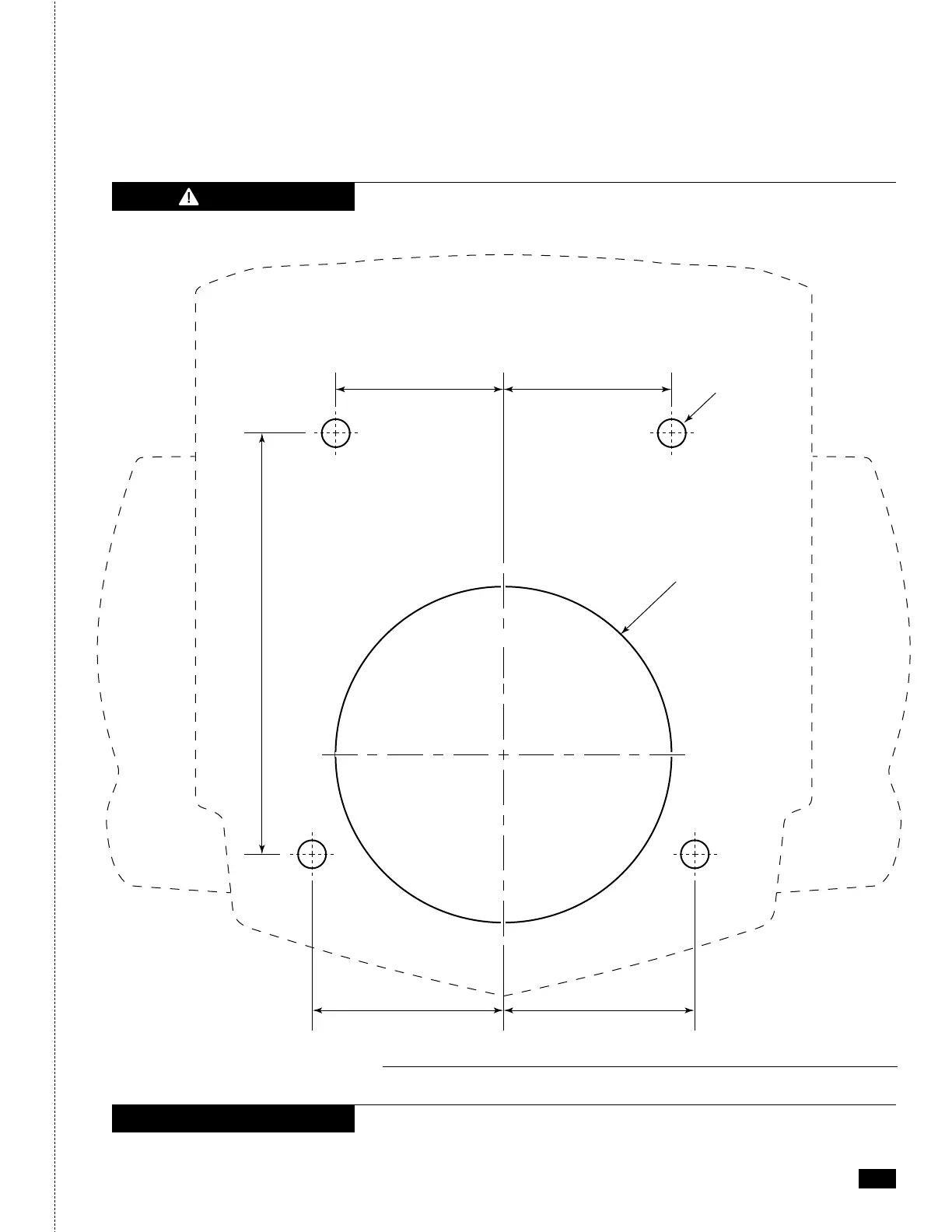

Figure A-2. Control Head Mounting Template.
3.76" (95.5 mm)
3" (76 mm) DIA.
4 x 1/4"
(6.35 mm)
DIA.
1.5"
(38 mm)
1.5"
(38 mm)
1.71"
(43.5 mm)
1.71"
(43.5 mm)
FRONT
The helm may effect a ship’s or the autopilot’s compass. For less
than one degree of effect keep the EPS helm and the compass a
minimum of 8 inches (20.5 cm) apart.
CAUTION
✁
If you must photocopy this mounting template for use, check ALL
measurements using a measuring device prior to using as a template.
NOTICE
